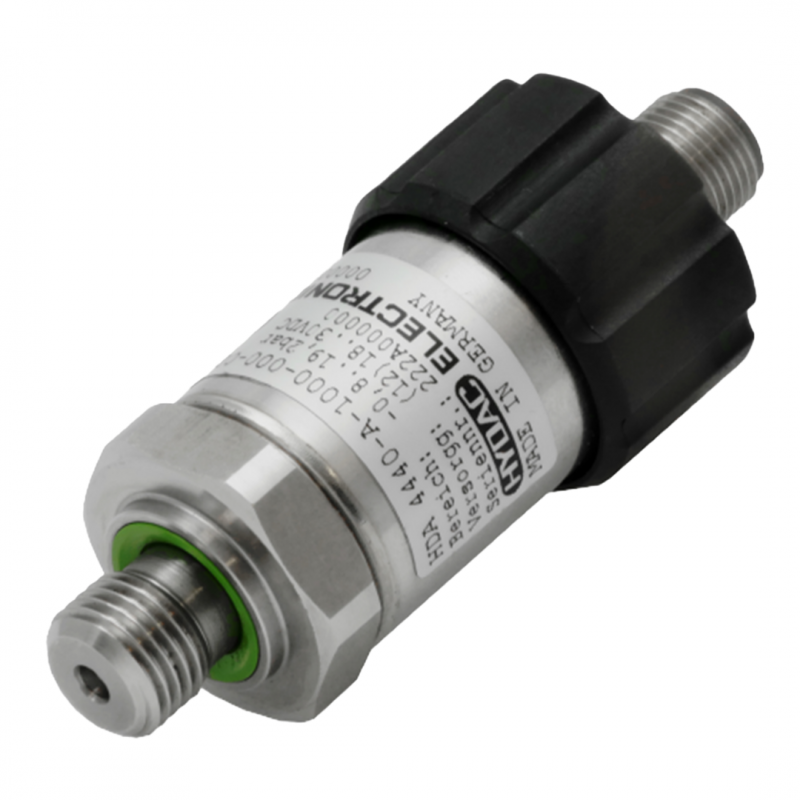

Hydac Electronic Pressure Transmitter HDA 4400 with Approvals for Shipping
The HYDAC HDA 4400 Electronic Pressure Transmitter is engineered specifically for the demanding conditions of the shipbuilding industry. Featuring a stainless steel measurement cell and thin-film strain gauge, it delivers reliable high-pressure readings with a robust 4–20 mA analogue signal output.
Key Features:
- Robust stainless steel housing with potted electronics
- Accurate high-pressure measurement
- Approved by ABS, Lloyd’s, DNV, GL, and BV
HYDAC Electronic Pressure Transmitter HDA 4400 with Approvals for Shipping
This pressure transmitter has been specially developed for the shipbuilding industry and is based on the HDA 4000 series. With its stainless steel measurement cell and thin-film strain gauge, the HDA 4400 is designed to measure relative pressures in the high pressure range. The evaluation electronics converts the measured pressure into a proportional analogue signal of 4 .. 20 mA.
The electronic module is completely potted to protect it against humidity, vibrations and shock, and is enclosed in a solid stainless steel housing. For use in the shipping industry, these pressure transmitters have been approved by the following organisations.
Approvals:
- American Bureau of Shipping
- Lloyds Register of Shipping
- Det Norske Veritas
- Germanischer Lloyd
- Bureau Veritas
- Other approvals on request
