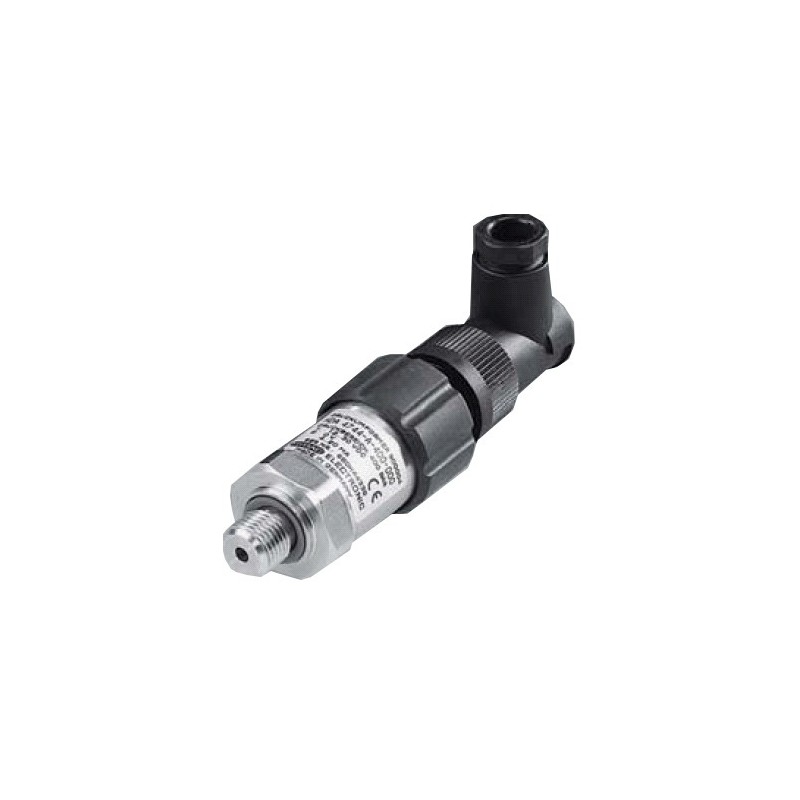

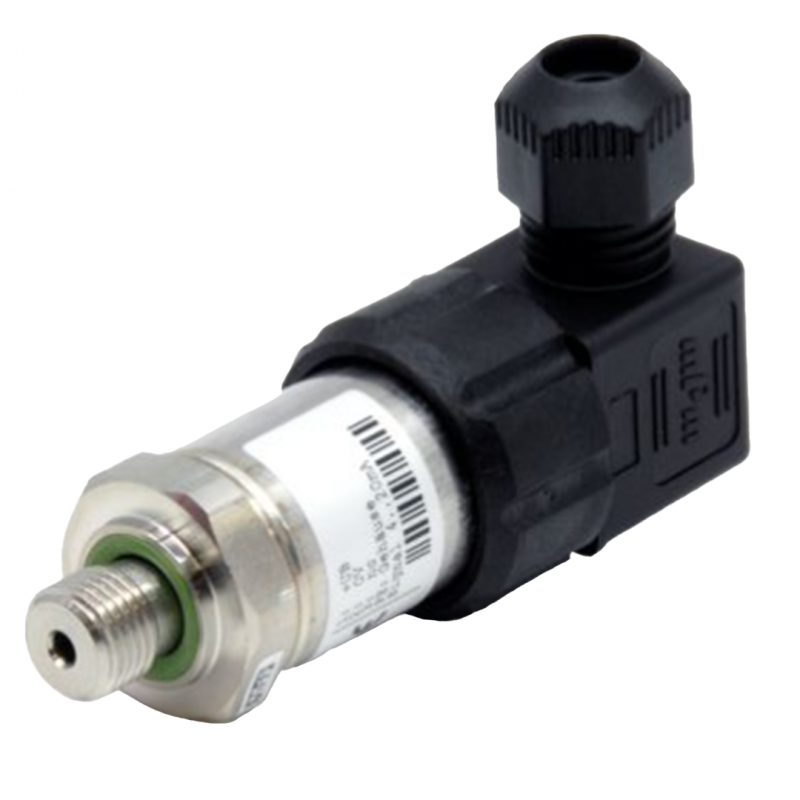

Hydac Electronic Pressure Transmitter HDA 4700
The HYDAC HDA 4700 Electronic Pressure Transmitter features a highly accurate thin-film strain gauge on a stainless steel membrane, delivering reliable pressure measurement in compact spaces. With output options of 4–20 mA or 0–10 V, it integrates seamlessly into HYDAC and standard control systems.
Key Features:
- High accuracy (≤ ±0.25% FS) and low temperature error
- Compact, robust design for tight spaces
- Excellent EMC performance
HYDAC Electronic Pressure Transmitter HDA 4700
The pressure transmitter series HDA 4700 has a very accurate and robust sensor cell with a thin-film strain gauge on a stainless steel membrane.
The output signals 4 ..20 mA or 0 .. 10 V enable connection of all HYDAC ELECTRONIC measurement and control devices as well as standard evaluation systems (e.g. PLC controls).
The main areas of application are in the mobile or industrial sectors of hydraulics and pneumatics, particularly in applications with restricted installation space.
Special features:
- Accuracy ≤ ± 0.25 % FS typ
- Highly robust sensor cell
- Very small temperature error
- Excellent EMC characteristics
- Very compact design
- Persuasive price / performance ratio
