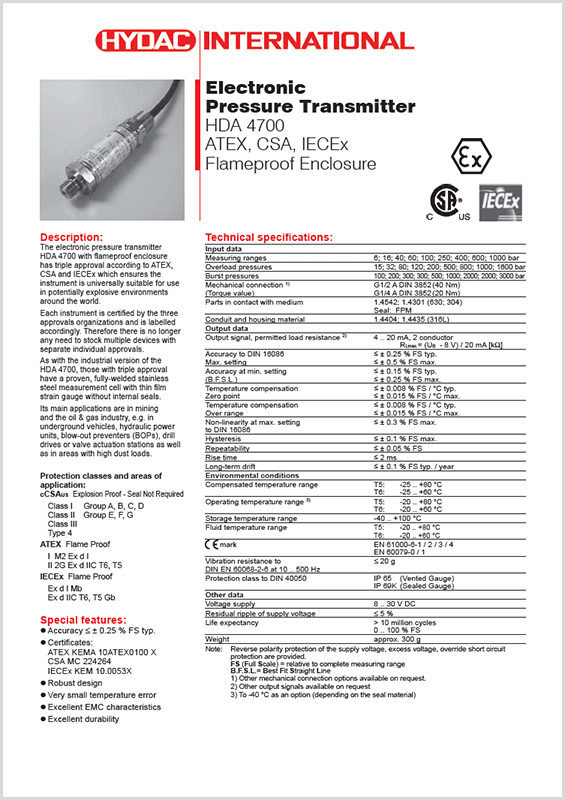

Hydac Electronic Pressure Transmitter HDA 4700 - ATEX, CSA, IECEx Flameproof Enclosure

Hydac Electronic Pressure Transmitter HDA 4700 - ATEX, CSA, IECEx Flameproof Enclosure

The electronic pressure transmitter HDA 4700 with flameproof enclosure has triple approval according to ATEX, CSA and IECEx which ensures the instrument is universally suitable for use in potentially explosive environments around the world.

Each instrument is certified by the three approvals organizations and is labelled accordingly. Therefore there is no longer any need to stock multiple devices with separate individual approvals.

As with the industrial version of the HDA 4700, those with triple approval have a proven, fully-welded stainless steel measurement cell with thin film strain gauge without internal seals.

Its main applications are in mining and the oil & gas industry, e.g. in underground vehicles, hydraulic power units, blow-out preventers (BOPs), drill drives or valve actuation stations as well as in areas with high dust loads.

Special features:

• Accuracy ≤ ± 0.25 % FS typ
• Certificates:
  ATEX KEMA 10ATEX0100 X
  CSA MC 224264
  IECEx KEM 10.0053X
• Robust design
• Very small temperature error
• Excellent EMC characteristics
• Excellent durability
