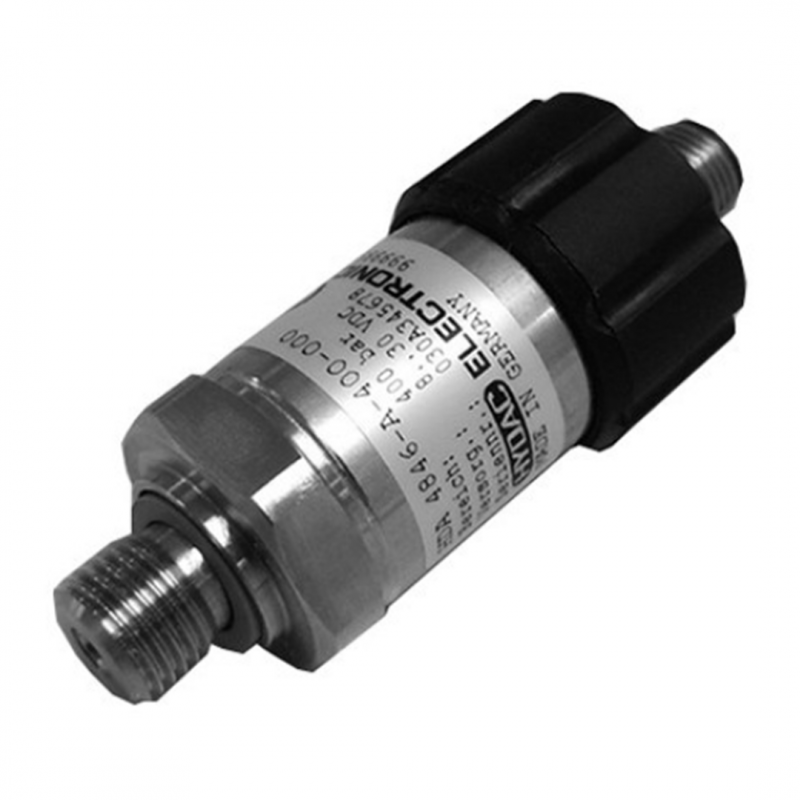

Hydac Electronic Pressure Transmitter HDA 4800
The HYDAC Electronic Pressure Transmitter HDA 4800 is a high-precision sensor designed for demanding applications in test rigs, diagnostics, and industrial systems. With exceptional accuracy and stability, it delivers reliable performance even under varying temperature conditions.
Key Features:
- High accuracy: ≤ ±0.125% FS
- Minimal temperature error
- Robust sensor with excellent long-term stability

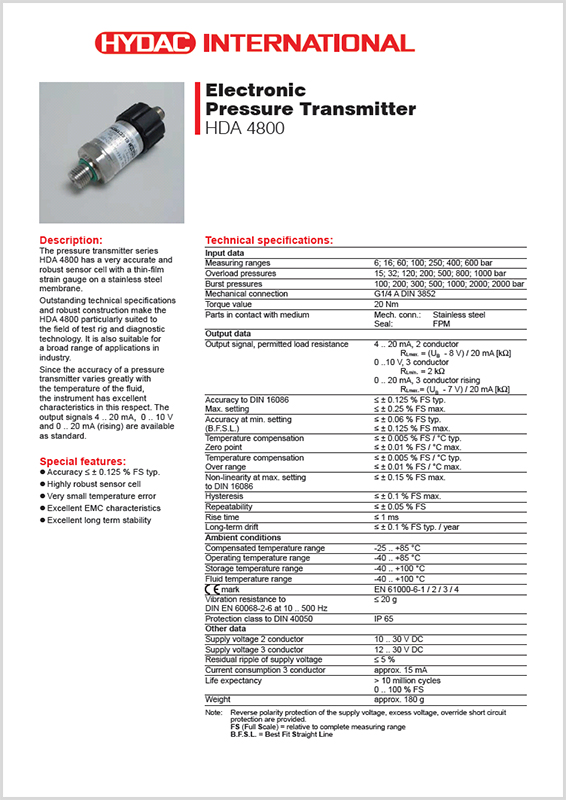

HYDAC Electronic Pressure Transmitter HDA 4800
The pressure transmitter series HDA 4800 has a very accurate and robust sensor cell with a thin-film strain gauge on a stainless steel membrane.
Outstanding technical specifications and robust construction make the HDA 4800 particularly suited to the field of test rig and diagnostic technology. It is also suitable for a broad range of applications in industry
Since the accuracy of a pressure transmitter varies greatly with the temperature of the fluid, the instrument has excellent characteristics in this respect. The output signals 4 .. 20 mA, 0 .. 10 V and 0 .. 20 mA (rising) are available as standard.
Special features:
- Accuracy ≤ ± 0.125 % FS typ
- Highly robust sensor cell
- Very small temperature error
- Excellent EMC characteristics
- Excellent long term stability
