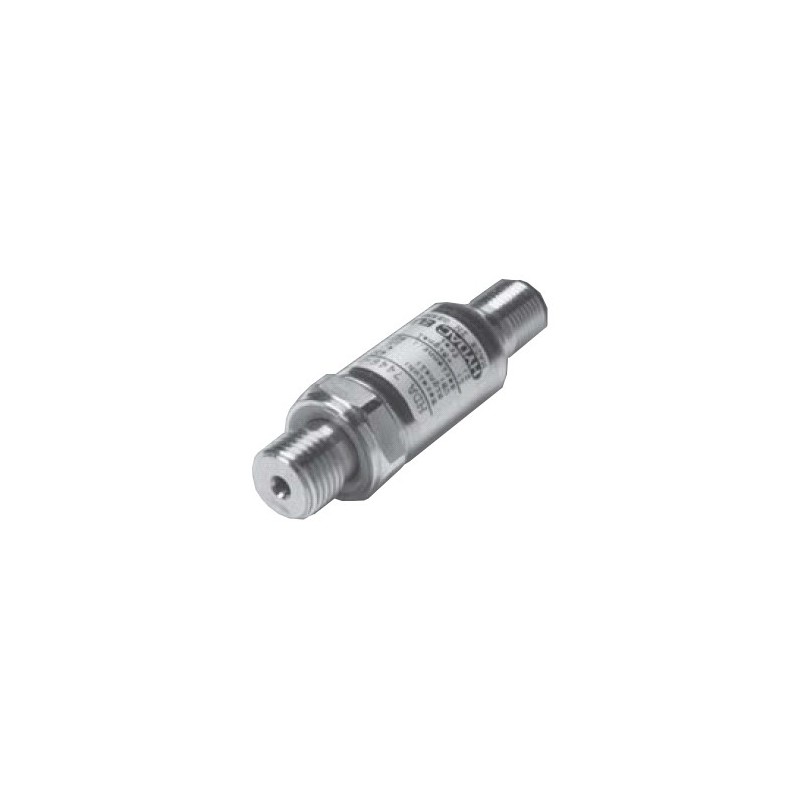

Hydac Electronic Pressure Transmitter HDA 7400
The HYDAC HDA 7400 is a compact, high-performance pressure transmitter designed for demanding OEM and mobile applications. Featuring a robust stainless steel sensor cell and thin-film strain gauge technology, it delivers reliable pressure monitoring across a wide range of operating conditions.
Key Features:
- Precision accuracy of ≤ ±0.5% FS with minimal temperature error
- Compact, rugged design ideal for space-limited or harsh environments
- Wide pressure range options (0–40 bar to 0–600 bar) with excellent EMC performance

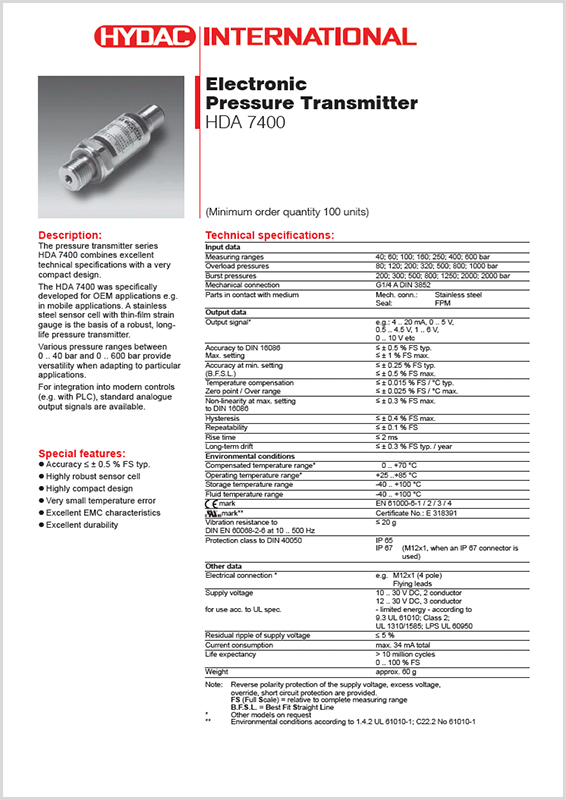

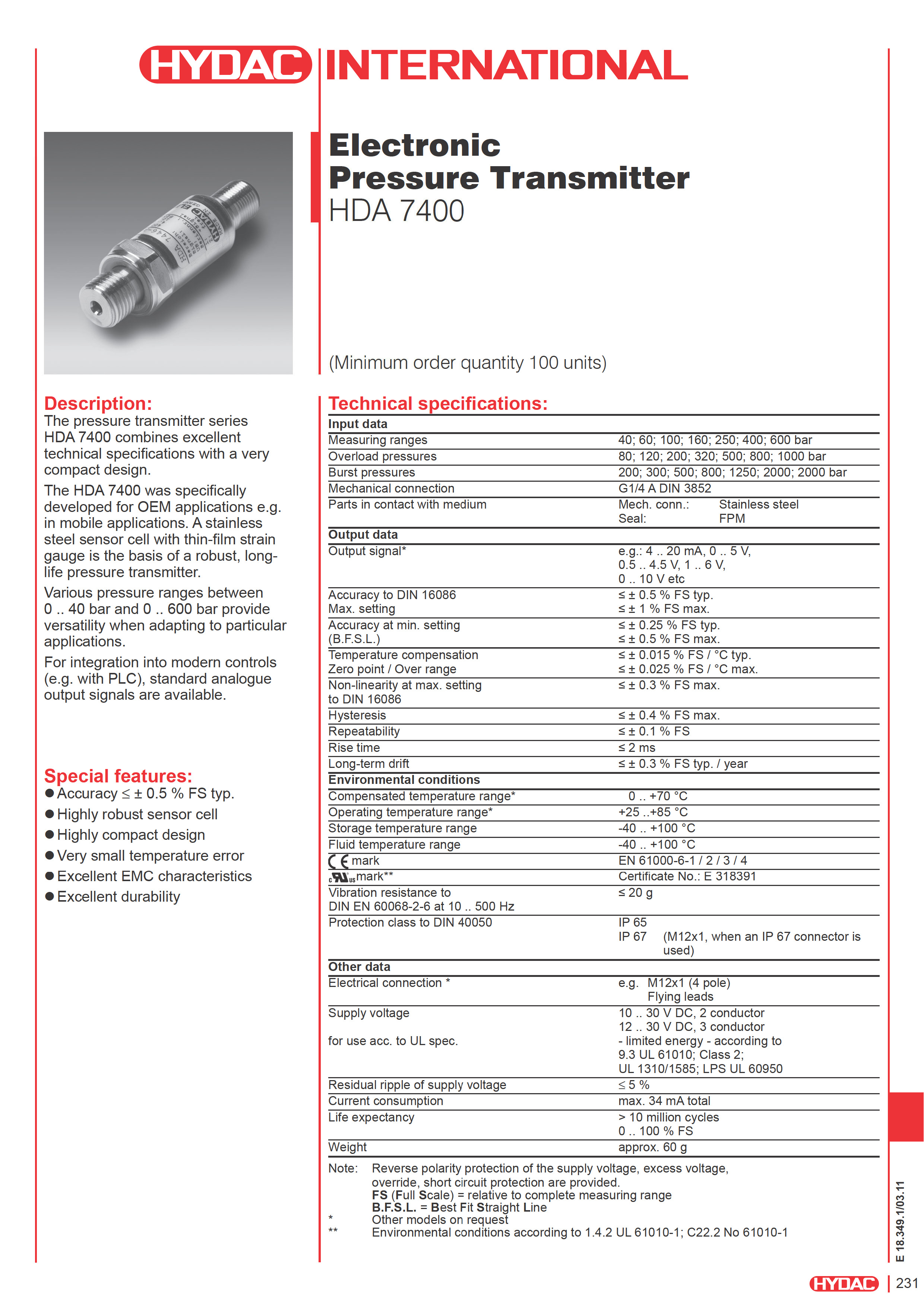

HYDAC Electronic Pressure Transmitter HDA 7400
The pressure transmitter series HDA 7400 combines excellent technical specifications with a very compact design.
The HDA 7400 was specifically developed for OEM applications e.g. in mobile applications. A stainless steel sensor cell with thin-film strain gauge is the basis of a robust, long-life pressure transmitter.
Various pressure ranges between 0 .. 40 bar and 0 .. 600 bar provide versatility when adapting to particular applications. For integration into modern controls (e.g. with PLC), standard analogue output signals are available.
Special features:
- Accuracy ≤ ± 0.5 % FS typ
- Highly robust sensor cell
- Highly compact design
- Very small temperature error
- Excellent EMC characteristics
- Excellent durability
