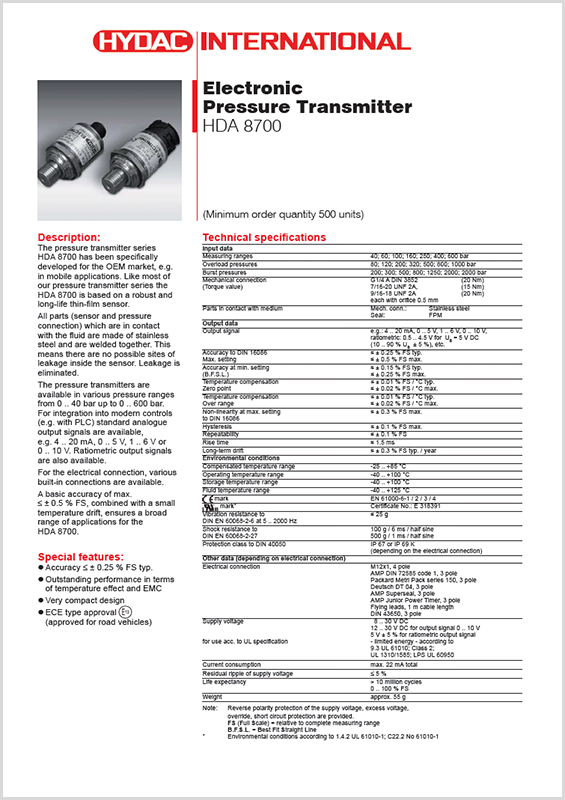

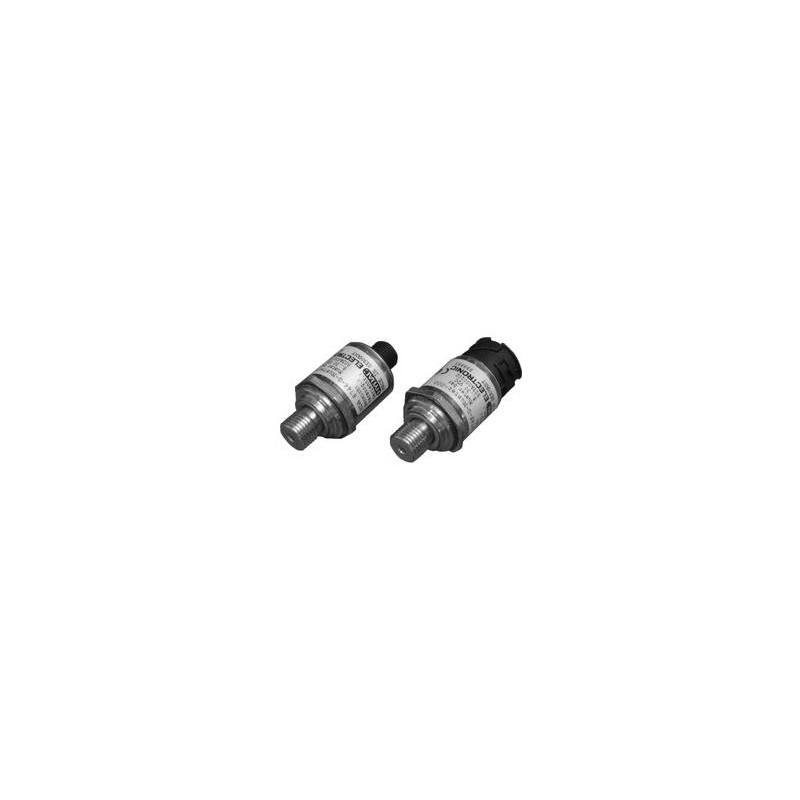

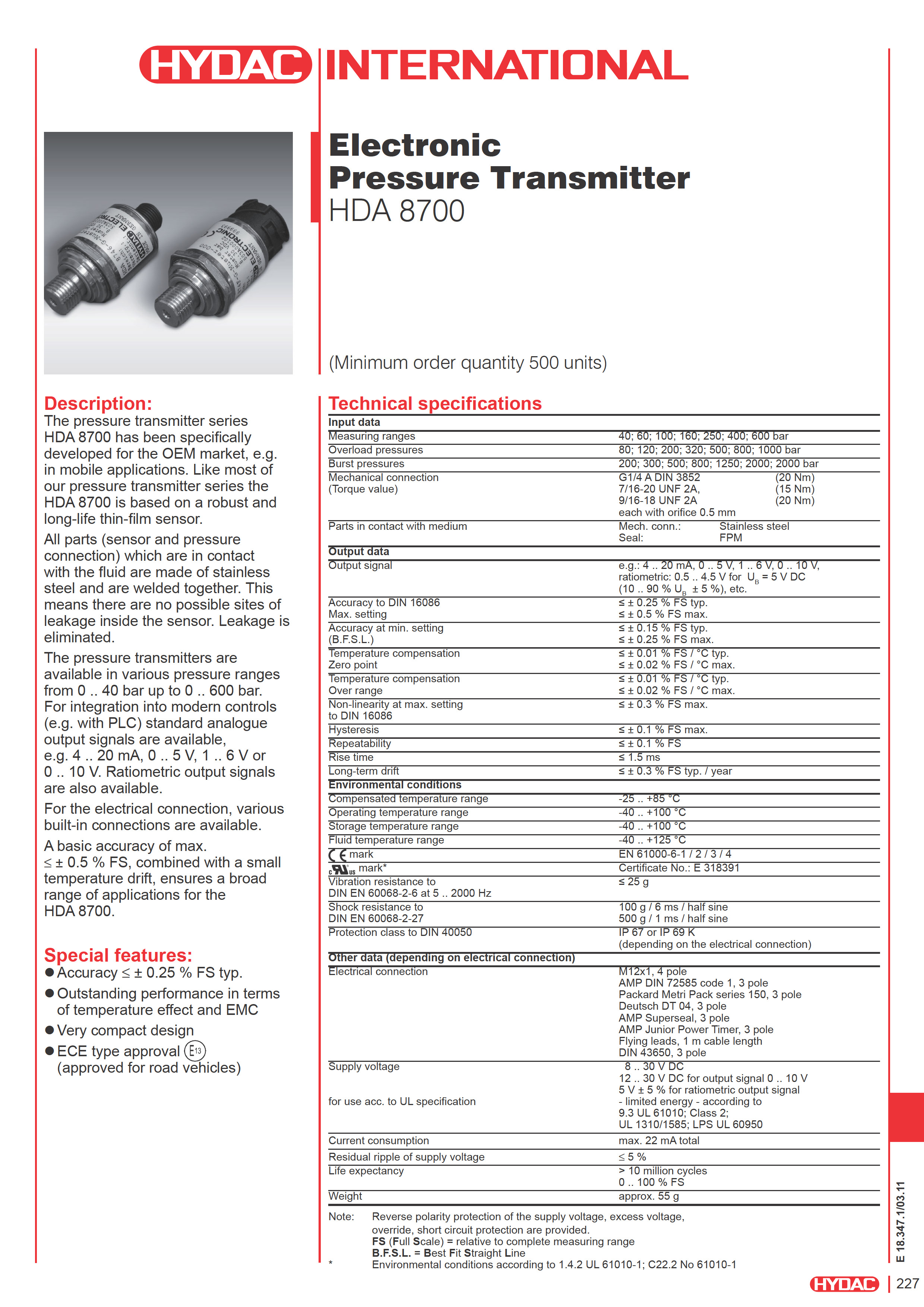

Hydac Electronic Pressure Transmitter HDA 8700

Hydac Electronic Pressure Transmitter HDA 8700

(Minimum order quantity 500 units)

The pressure transmitter series HDA 8700 has been specifically developed for the OEM market, e.g. in mobile applications. Like most of our pressure transmitter series the HDA 8700 is based on a robust and long-life thin-film sensor.

All parts (sensor and pressure connection) which are in contact with the fluid are made of stainless steel and are welded together. This means there are no possible sites of leakage inside the sensor. Leakage is eliminated.

The pressure transmitters are available in various pressure ranges from 0 .. 40 bar up to 0 .. 600 bar. For integration into modern controls (e.g. with PLC) standard analogue output signals are available, e.g. 4 .. 20 mA, 0 .. 5 V, 1 .. 6 V or 0 .. 10 V. Ratiometric output signals are also available.For the electrical connection, various built-in connections are available.

A basic accuracy of max. ≤ ± 0.5 % FS, combined with a small temperature drift, ensures a broad range of applications for the HDA 8700.

Special features:

• Accuracy ≤ ± 0.25 % FS typ
• Outstanding performance in terms of temperature effect and EMC
• Very compact design
• ECE type approval (approved for road vehicles)
