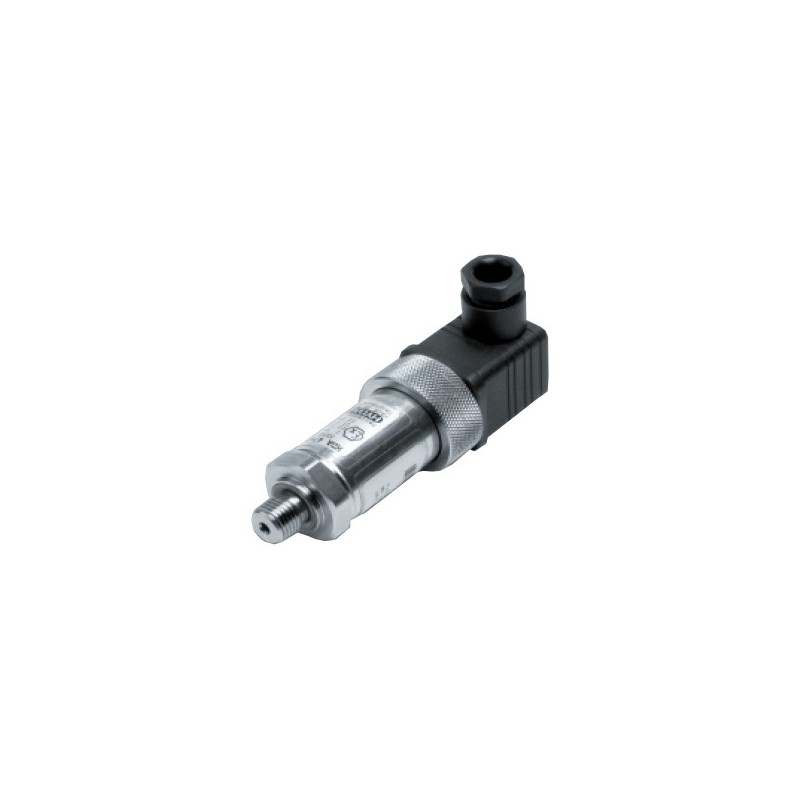

Hydac Electronic Pressure Transmitter HDA 4700 - IECEx Intrinsically Safe
The HYDAC HDA 4700 Electronic Pressure Transmitter – IECEx Intrinsically Safe version – is engineered for high-risk environments, offering precise pressure measurement in hazardous areas such as oil & gas, mining, and dust-intensive industries. Featuring a fully-welded stainless-steel thin-film sensor, it ensures long-term durability and safety without internal seals.
Key Features:
- IECEx Intrinsically Safe certified for use in explosive atmospheres
- High accuracy: ≤ ± 0.25 % FS (typical) with minimal temperature error
- 4–20 mA output and excellent EMC performance for reliable signal integrity

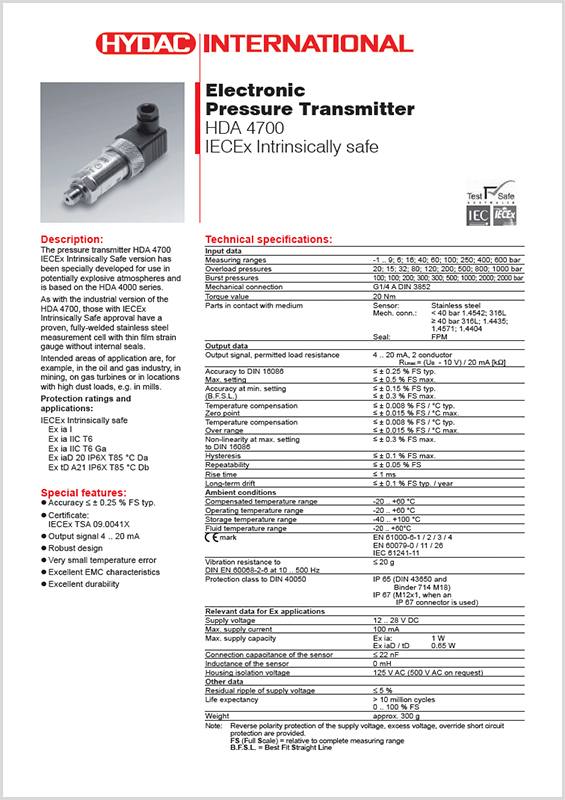

HYDAC Electronic Pressure Transmitter HDA 4700 - IECEx Intrinsically Safe
The pressure transmitter HDA 4700 IECEx Intrinsically Safe version has been specially developed for use in potentially explosive atmospheres and is based on the HDA 4000 series
As with the industrial version of the HDA 4700, those with IECEx Intrinsically Safe approval have a proven, fully-welded stainless steel measurement cell with thin film strain gauge without internal seals
Intended areas of application are, for example, in the oil and gas industry, in mining, on gas turbines or in locations with high dust loads, e.g. in mills
Protection ratings and applications:
IECEx Intrinsically safe
Ex ia I
Ex ia IIC T6
Ex ia IIC T6 Ga
Ex iaD 20 IP6X T85 °C Da
Ex tD A21 IP6X T85 °C Db
Special features:
- Accuracy ≤ ± 0.25 % FS typ
- Certificate:
IECEx TSA 09.0041X - Output signal 4 .. 20 mA
- Robust design
- Very small temperature error
- Excellent EMC characteristics
- Excellent durability
