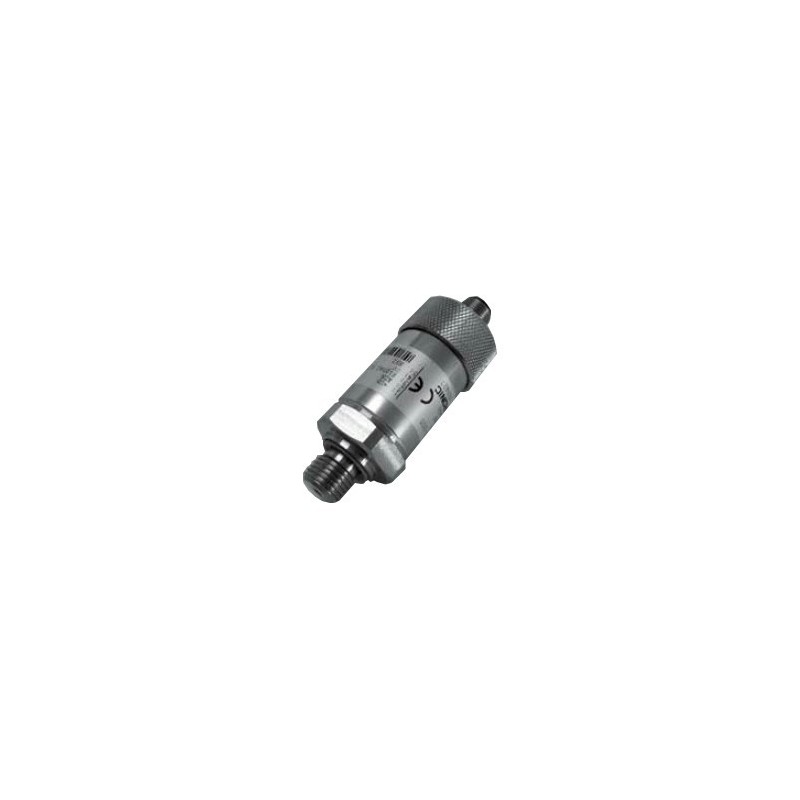

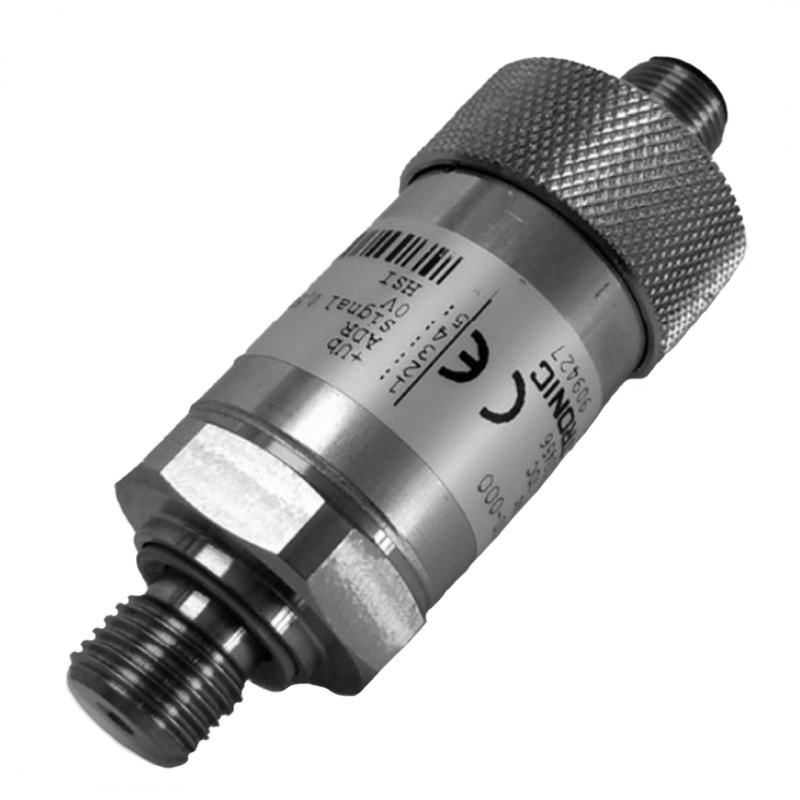

Hydac Electronic Pressure Transmitter HDA 4748-H with HSI Sensor Recognition
The HYDAC HDA 4748-H Electronic Pressure Transmitter with HSI sensor recognition is purpose-built for seamless integration with HYDAC measuring instruments such as the HMG 500, HMG 510, HMG 3000, and CMU 1000. Featuring automatic sensor detection and data transfer via the HYDAC Sensor Interface (HSI), it delivers precise, plug-and-play performance in compact form.
Key Features:
- HSI interface enables automatic sensor recognition and configuration
- High accuracy: ≤ ± 0.25 % FS (typical) with outstanding long-term stability
HYDAC Electronic Pressure Transmitter HDA 4748-H with HSI Sensor Recognition
The pressure transmitter HDA 4748-H with HSI sensor recognition has been specially developed for use in conjunction with HYDAC measuring instruments HMG 500, HMG 510, HMG 3000 and CMU 1000. For data transmission, the HDA 4748-H has an HSI interface (HYDAC Sensor Interface). The HSI sensors are automatically recognised via the HSI interface by the above-mentioned HYDAC measuring instruments and all the necessary basic settings are taken from each sensor
Like all pressure transmitters of the HDA 4700 series, the HDA 4748-H also has a very accurate and robust sensor cell with a thin-film strain gauge on a stainless steel membrane. It combines excellent technical specifications with a very compact design
Special features:
- Automatic recognition by, and voltage supply from, HYDAC measuring instruments HMG 500, HMG 510, HMG 3000 or CMU 1000
- Automatic transfer of measuring range, measured value and measurement unit
- Accuracy ≤ ± 0.25 % FS typ
- Highly robust sensor cell
- Very small temperature error
- Excellent EMC characteristics
- Excellent long term stability
- Very compact design
