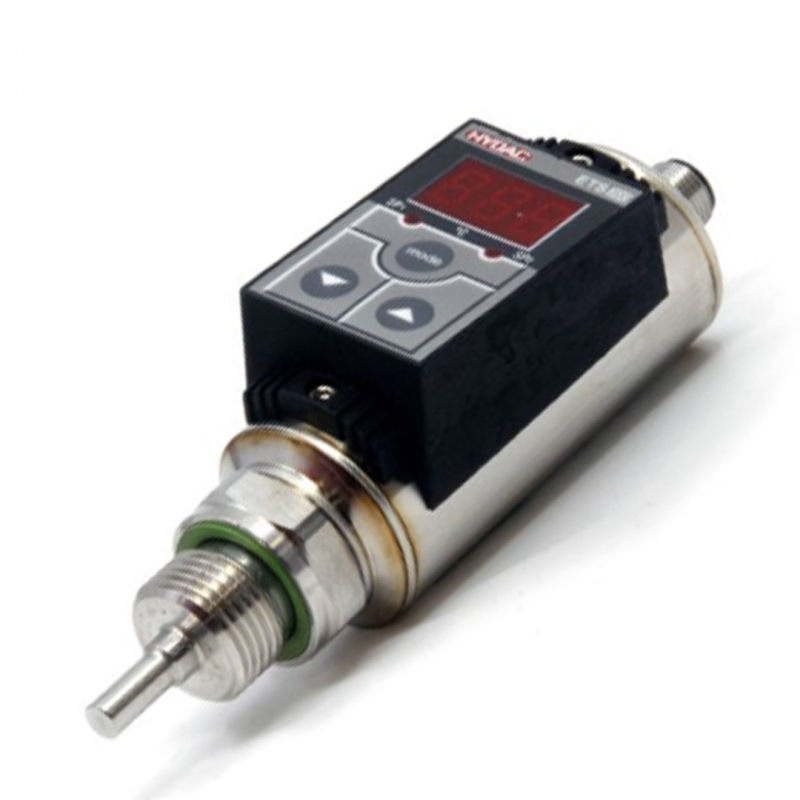

Hydac Electronic Temperature Sensor ETS 320
The HYDAC ETS 320 is a compact, pressure-resistant electronic temperature switch for hydraulic systems up to 600 bar. It features an 18 mm probe, -25°C to +100°C measuring range, a 3-digit display, and optional analogue output for flexible integration.
Key Features:
- Pressure resistance: 600 bar
- Probe length: 18mm
- Measuring range -25 .. 100 °C (-13 .. 212 °F)
HYDAC Electronic Temperature Sensor ETS 320
- Pressure resistance: 600 bar
- Probe length: 18mm
- Measuring range -25 .. 100 °C (-13 .. 212 °F)
- Pressure-resistant for pipeline installation
Features:
- Compact temperature switch with integrated temperature sensor
- 2 transistor switching outputs, capable of bearing loads of up to 1.2 A per output
- Optionally with analogue output 4 ... 20 mA
- 3-character digital display
- Switching point or window function
- Switching / reset points and many helpful additional functions can be set using the foil keyboard
General Function:
The ETS 320 is a compact, electronic temperature switch with 3-character digital display. The up to 600 bar pressure-resistant version with an integrated 18 mm temperature sensor can be mounted directly in the pipeline or on the hydraulic block and offers a measurement range from -25 ... +100°C. Various output variants with one or two switching outputs, optionally with additional analogue output signal of 4 ... 20 mA open up a multitude of a application opportunities. The switching points and the associated hystereses can be set up per keyboard very quickly and with great user-friendliness. For adjustment to the respective application, the device offers many additional setting parameters (e.g. switching delay times, opener/closer functions, etc.)
