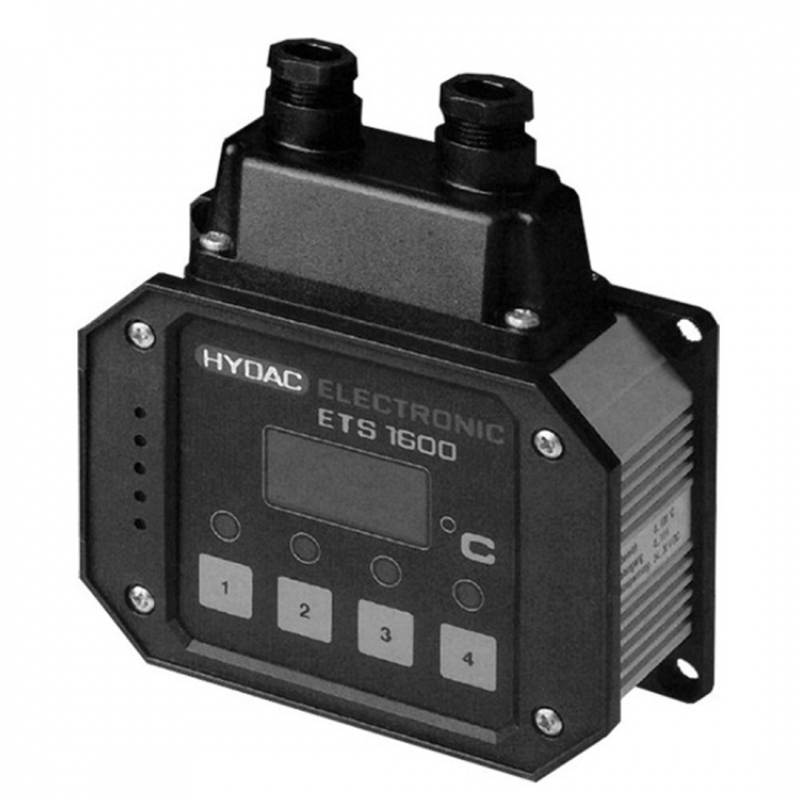

Hydac Electronic Temperature Sensor ETS 1600

Hydac Electronic Temperature Sensor ETS 1600

Electronic temperature sensor ETS 1600 is a combination of temperature display, 4 adjustable relay outputs and analogue output for remote display or programmable logic control (PLC) link

  • Temperature range 0 .. 100 °C, display range 0 .. 100 °C
  • 3-digit temperature display in °C

Description
Downloads

Hydac Electronic Temperature Sensor ETS 1600

  • Temperature range 0 .. 100 °C, display range 0 .. 100 °C
  • 3-digit temperature display in °C

Features:

  • PT 100 temperature sensor separately connected via a cable in the tank mounted immersion tube (4-conductor technique)
  • Accuracy better than 1.0 °C4 adjustable value contacts with relay output
  • Switching points and switch-back differential freely adjustable, without opening the unit
  • Switch-back differential 0.5 .. 20 °C
  • Switching point display via key command at any time without affecting the performance
  • Analogue output optionally 4 .. 20 mA or 0 .. 10 V
  • Safety type IP 65can be combined with the pressure switch EDS 1600 of the same design

General Function:

The temperature controller, type ETS 1600, is a combination of temperature display, 4 adjustable relay outputs and analogue output for remote display or programmable logic control (PLC) link.
It is therefore ideally suited to monitor and control the tank temperature of hydraulicor lubricating oil tanks.
It offers direct and precise temperature information via digital display on site andthe temperature information can bepassed via the PLC-compatible analogue signal to modern central monitoring systems.
