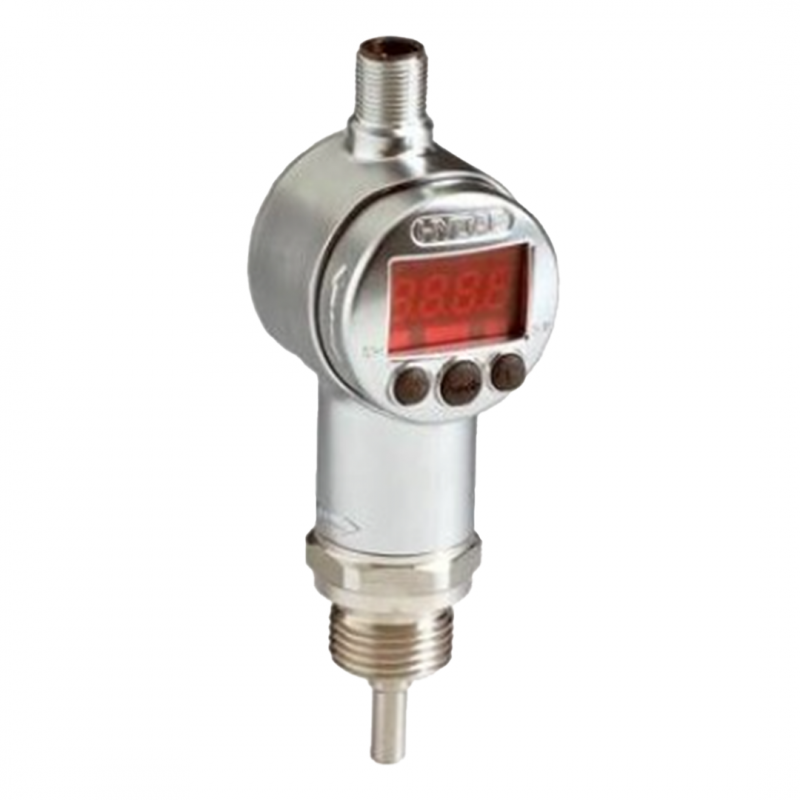

Hydac Electronic Temperature Switch ETS 3200 Pressure Resistant for Inline Mounting

The HYDAC ETS 3200 Pressure-Resistant model is a compact electronic temperature switch with a 4-digit display, designed for inline or hydraulic block mounting. With a robust 600 bar pressure rating and an integrated 18 mm probe, it offers reliable temperature monitoring, dual switching outputs, and selectable analog output for versatile applications.

Key Features:

  • Probe length: 18 mm
  • Pressure resistance: 600 bar
  • Measuring range: -25 .. 100 °C (-13 ... 212 °F)

Description
Downloads

HYDAC Electronic Temperature Switch ETS 3200 Pressure Resistant for Inline Mounting

  • Probe length: 18 mm
  • Pressure resistance: 600 bar
  • Measuring range: -25 .. 100 °C (-13 ... 212 °F)

Features:

  • 2 switching outputs,up to 1.2 A load per output
  • Analogue output signal selectable (4 .. 20 mA / 0 .. 10 V)
  • 4-digit display
  • Optimum alignment - display can be rotated in two planes (axes)
  • Switching / switch-back points and many useful additional functions can be set using keypad
  • Display of temperature and unit of measurement in °C or °F

General

The ETS 3200 is a compact electronic temperature switch with a 4-digit display. Pressure resistant to 600 bar, this model has an integrated 18 mm temperature probe and can be screwed directly inline or into a hydraulic block. Different output models with one or two switching outputs, optionally with an additional analogue output signal, offer a variety of application possibilities.
The switching points and the associated hystereses can be adjusted very quickly and easily using the keypad. For optimum adaptation to the particular application, the unit has many additional adjustment parameters (e.g. switching delay times, N/C / N/O function, etc.).
