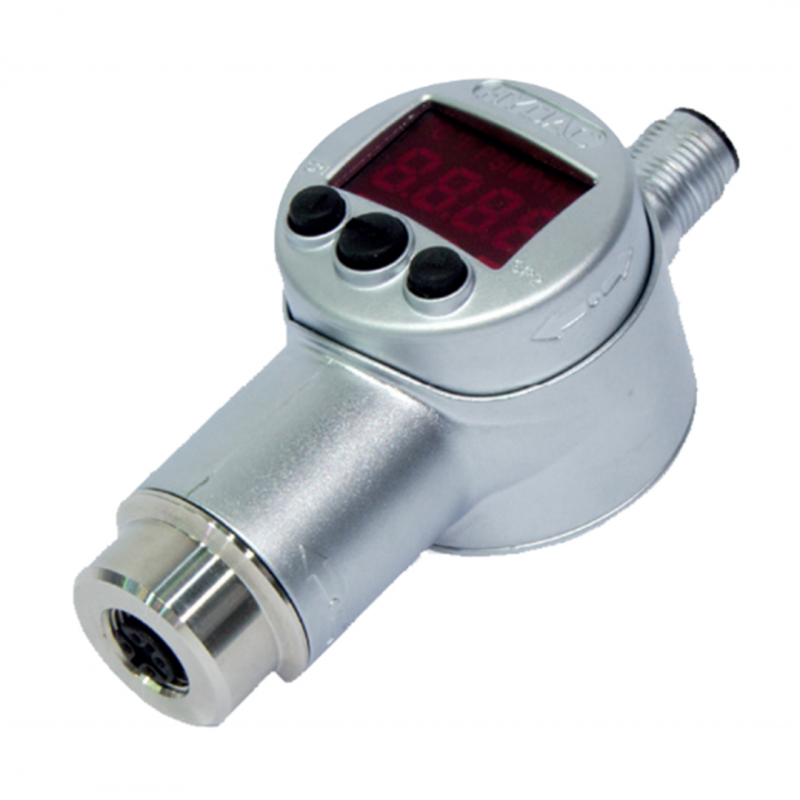

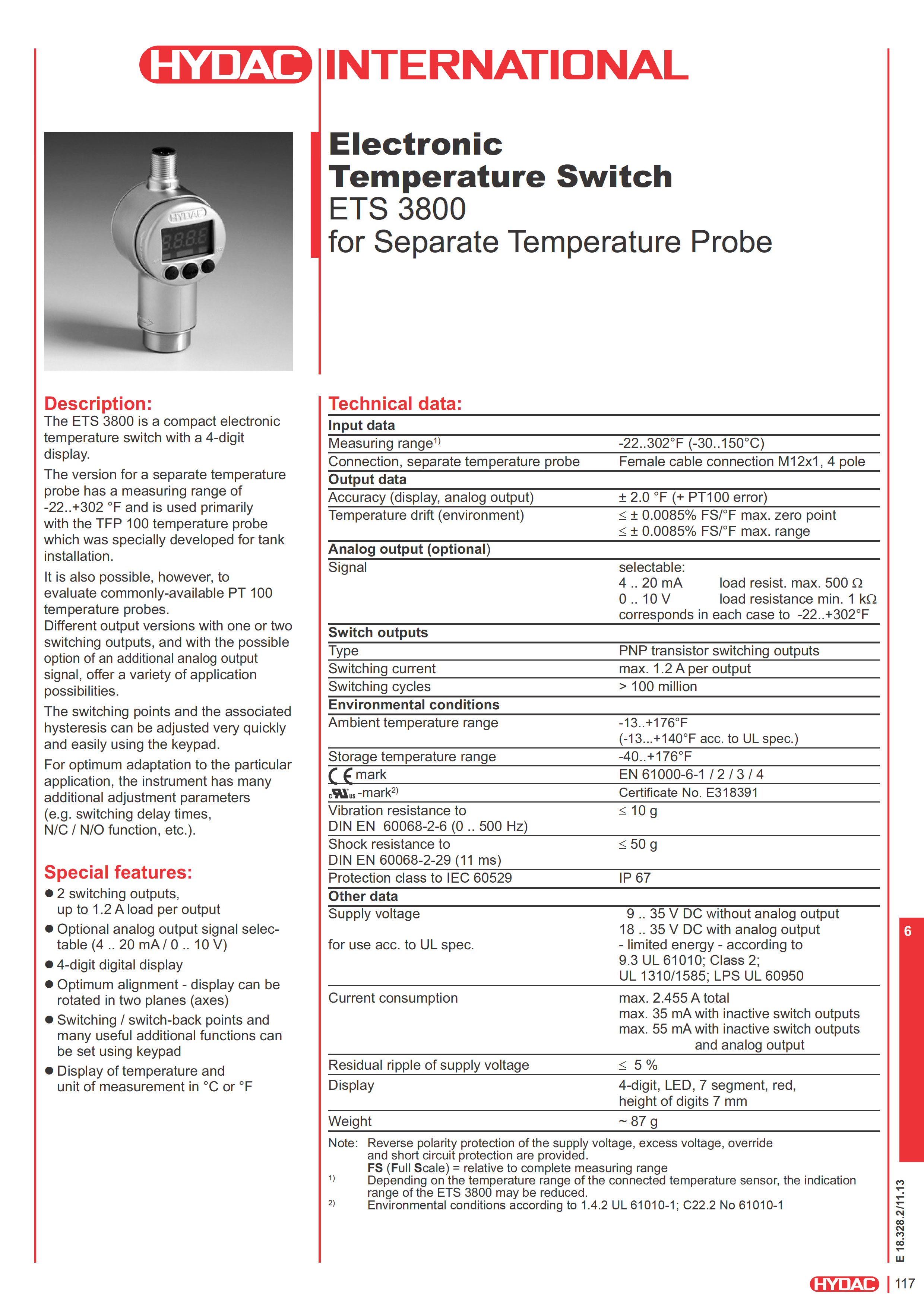

Hydac Electronic Temperature Switch ETS 3800 for Separate Temperature Probe

HYDAC Electronic Temperature Switch ETS 3800 for Separate Temperature Probe

• Measuring range¹) -30 .. +150 °C (-22 .. 302 °F)
• Display: 4-digit, LED, 7 segment, red, height of digits 7 mm
• Connection, separate temperature probe Female cable connection: M12x1, 4 pole

¹) Depending on the temperature range of the connected temperature sensor, the measurement range of the ETS 3800 may be reduced.

Features:

• 2 switching outputs, capable of bearing loads of up to 1.2 A per output
• Optional analogue output (4 ... 20 mA / 0 ... 10V)
• 4-character digital display
• Optional alignment of the display by means of rotational capability in 2 axes
• Switching / reset points and many helpful additional functions can be set using the foil keyboard
• Display of measured value and units in °C or °F

General Function:

The ETS 3800 is a compact electronic temperature switch with a 4-digit display. The version for a separate temperature probe has a measuring range of -30 ... +150°C and is used primarily with the TFP 100 temperature probe which was specially developed for tank installation. It is also possible, however, to evaluate commonly-available PT 100 temperature probes.
Different output versions with one or two switching outputs, and with the possible option of an additional analogue output signal, offer a variety of application possibilities.
The switching points and the associated hystereses can be adjusted very quickly and easily using the keypad. For optimum adaptation to the particular application, the instrument has many additional adjustment parameters (e.g. switching delay times, N/C / N/O function, etc.).
