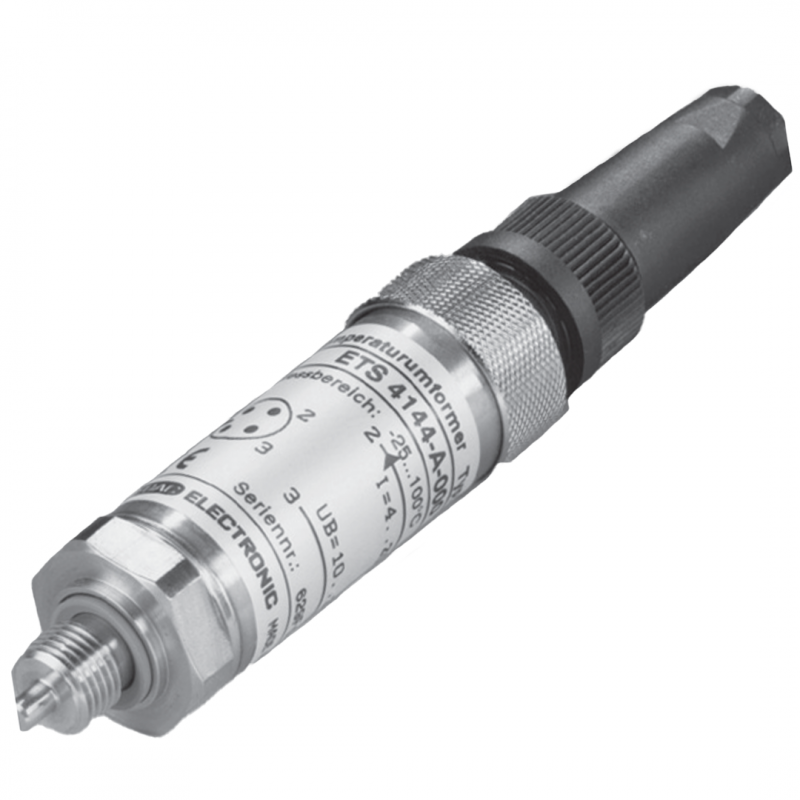

Hydac Electronic Temperature Transmitter ETS 4000
The HYDAC ETS 4000 is a rugged electronic temperature transmitter designed for demanding industrial and hydraulic applications. With a measuring range of -25 to +100 °C, high pressure resistance up to 600 bar, and reliable analog outputs, it ensures accurate temperature monitoring in harsh environments.
Key Features:
- Measuring range: -25 .. +100 °C
- Pressure resistance: 600 bar
- Overload pressure: 900 bar
- Mechanical connection: G1/4 A DIN 3852
HYDAC Electronic Temperature Transmitter ETS 4000
- Measuring range: -25 .. +100 °C
- Pressure resistance: 600 bar
- Overload pressure: 900 bar
- Mechanical connection: G1/4 A DIN 3852
Features:
- Ideal for industrial applications
- Robust design
- Excellent EMC characteristics
- Good long-term stability
- Standard Degree of protection IP 65
- Optionally available with ATEX / CSA / IECEx approval
General Function:
The ETS 4000 is a robust electronic temperature transmitter which is particularly suited to measuring temperature in hydraulic applications in industry. The temperature sensor, based on a PT 100 and corresponding evaluation electronics, is capable of measuring temperatures in the range -25 °C to +100 °C.
The sensor has analogue output signals of 4 .. 20 mA und 0 .. 10 V available as standard to enable integration into modern controls. The pressure resistance up to 600 bar and excellent EMC characteristics make the ETS 4000 ideal for use in harsh conditions.
