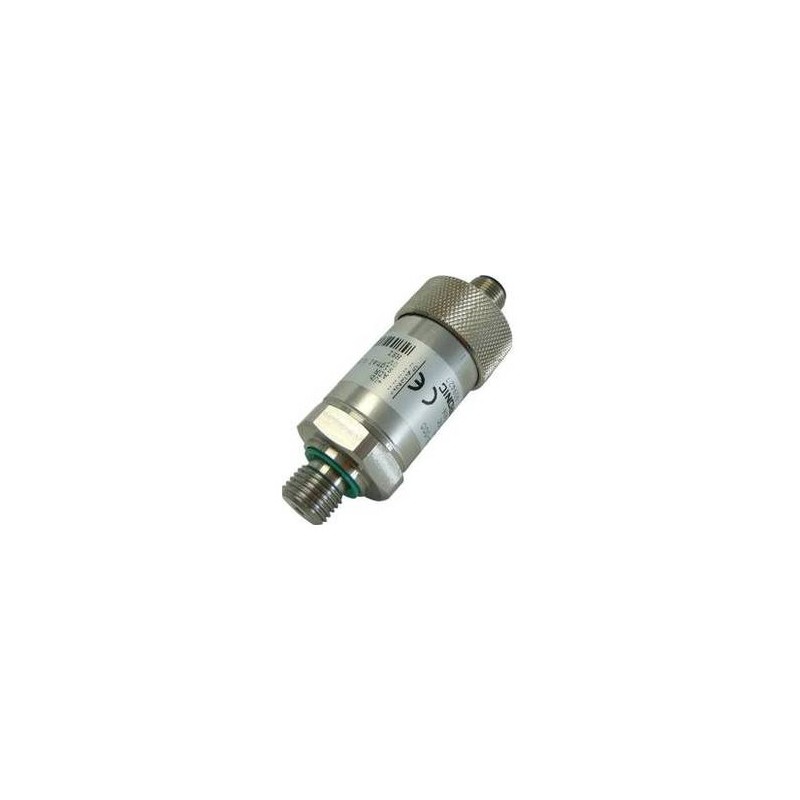

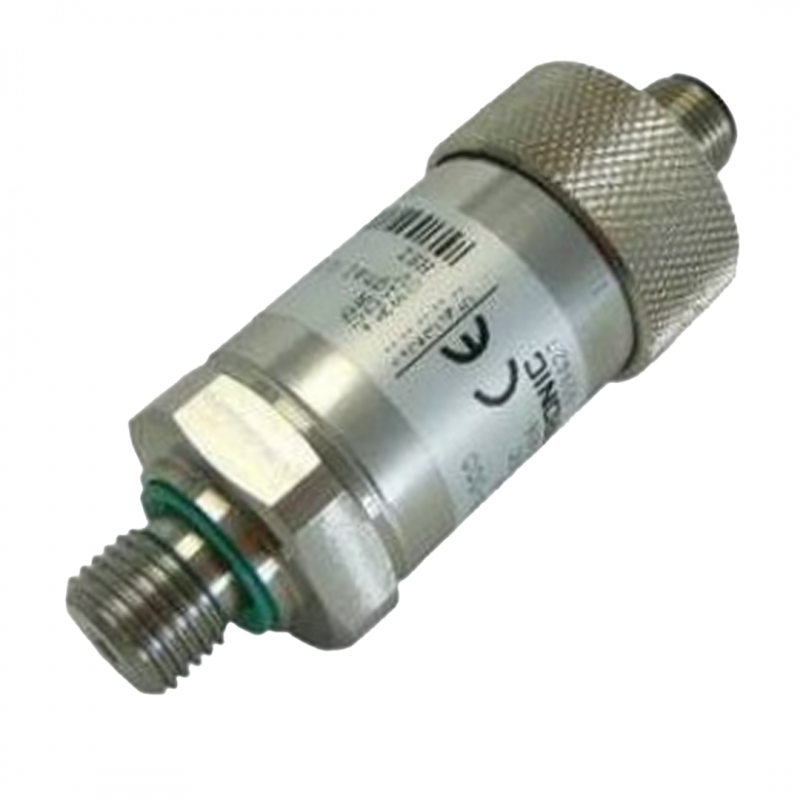

Hydac Electronic Temperature Transmitter with HSI Sensor Recognition ETS 4548-H

Hydac Electronic Temperature Transmitter with HSI Sensor Recognition ETS 4548-H

• Measuring ranges: -25 .. +100 °C
• Pressure resistance: 600 bar
• Overload pressure: 1000 bar
• Mechanical connection: G1/4 A DIN 3852

Features:

• Automatic recognition by, and voltage supply from, HYDAC measuring instruments HMG 500, HMG 510, HMG 3000 or CMU 1000
• Automatic transfer of measuring range, measured value and measurement unit
• Robust design
• Pressure resistant to 600 bar
• Excellent EMC characteristics
• Standard protection class IP 67

General Function:

The electronic temeprature transmitter ETS 4548-H with HSI sensor recognition has been specially developed for use in conjunction with HYDAC measuring instruments HMG 500, HMG 510, HMG 3000 and CMU 1000.
For data transmission, the ETS 4548-H has an HSI interface (HYDAC Sensor Interface). The HSI sensors are automatically recognized via the HSI interface by the abovementioned HYDAC measuring instruments and all the necessary basic settings are taken from each sensor. Like all temperature transmitters in the ETS 4000 series, the ETS 4548-H features a robust design and excellent EMC characteristics. Based on a silicon semiconductor device and corresponding evaluation electronics, the temperature sensor is designed to measure temperatures in the range -25 to +100 °C.
