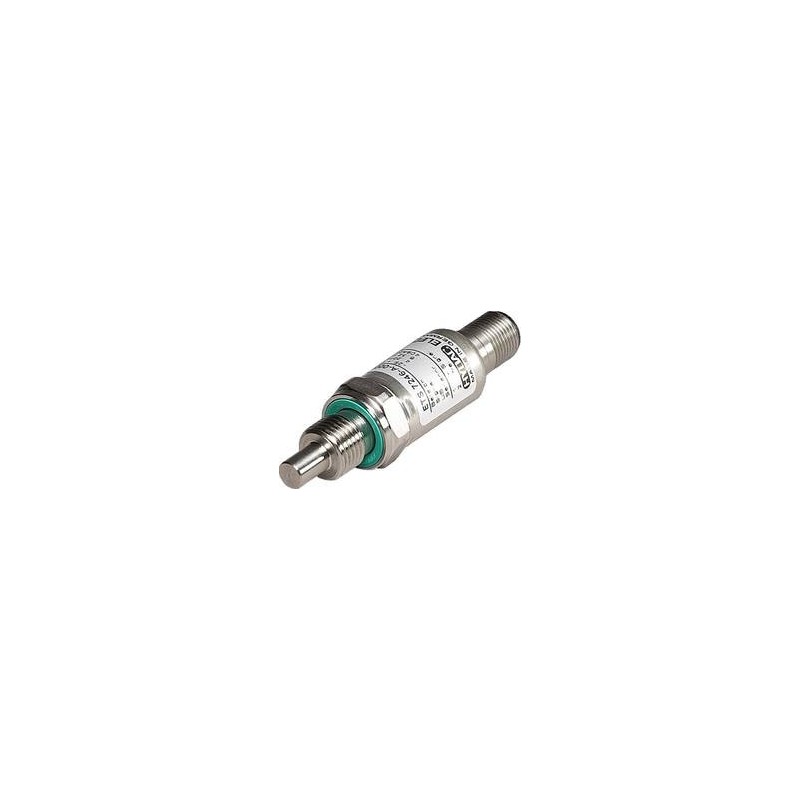

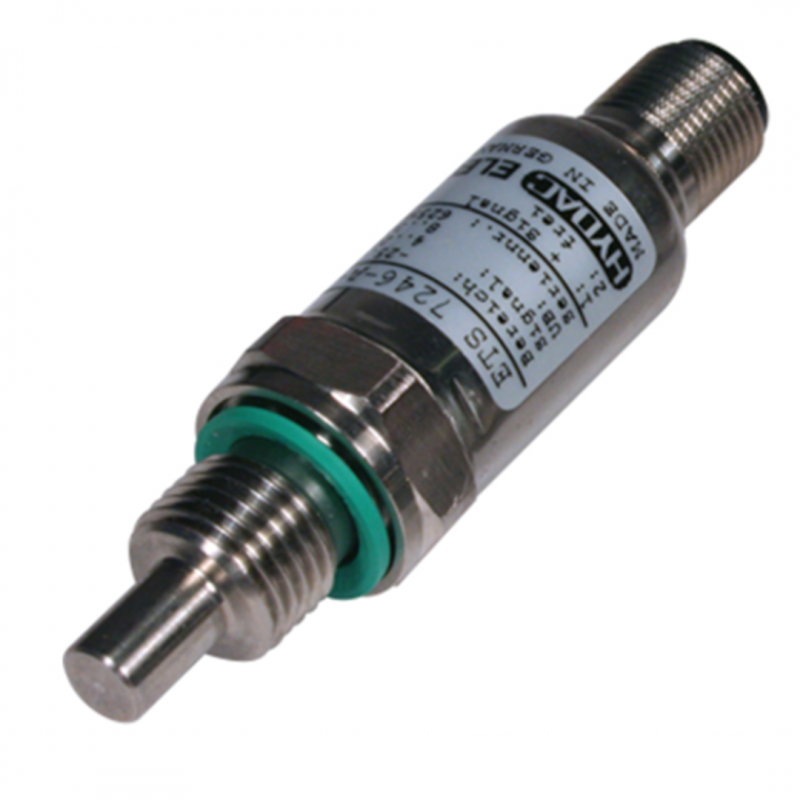

Hydac Electronic Temperature Transmitter ETS 7000
The HYDAC ETS 7000 is a compact electronic temperature transmitter ideal for OEM and mobile applications, measuring -25 to +100 °C. With high pressure resistance up to 600 bar, analogue outputs (4–20 mA / 0–10 V), and IP67 protection, it ensures reliable performance in demanding environments.
Key Features:
- Measuring ranges: -25 .. +100 °C
- Pressure resistance: 600 bar
- Overload pressure: 900 bar
HYDAC Electronic Temperature Transmitter ETS 7000
- Measuring ranges: -25 .. +100 °C
- Pressure resistance: 600 bar
- Overload pressure: 900 bar
- Probe length: 10 mm
- Probe diameter: 6.7 mm
- Mechanical connection: G1/4 A DIN 3852
Features:
- Accuracy ≤ ± 2 % FS
- Ideal for OEM applications
- Very compact design
- Excellent EMC characteristics
- Long-term stability
- Standard protection class IP 67
General Function:
The ETS 7200 is an electronic temperature transmitter which, because of its compact design, is particularly suited to measuring temperature in hydraulic applications in the industrial and mobile sectors. Based on a silicon semiconductor device and corresponding evaluation electronics, the temperature sensor is designed to measure temperatures in the range -25°C to +100°C. The sensor has various analogue output signals as standard, e.g. 4 .. 20 mA or 0 ... 10V to enable integration into modern control systems through an M12x1 connector. The pressure resistance up to 600 bar and excellent EMC characteristics make the ETS 7200 ideal for use in harsh conditions.
