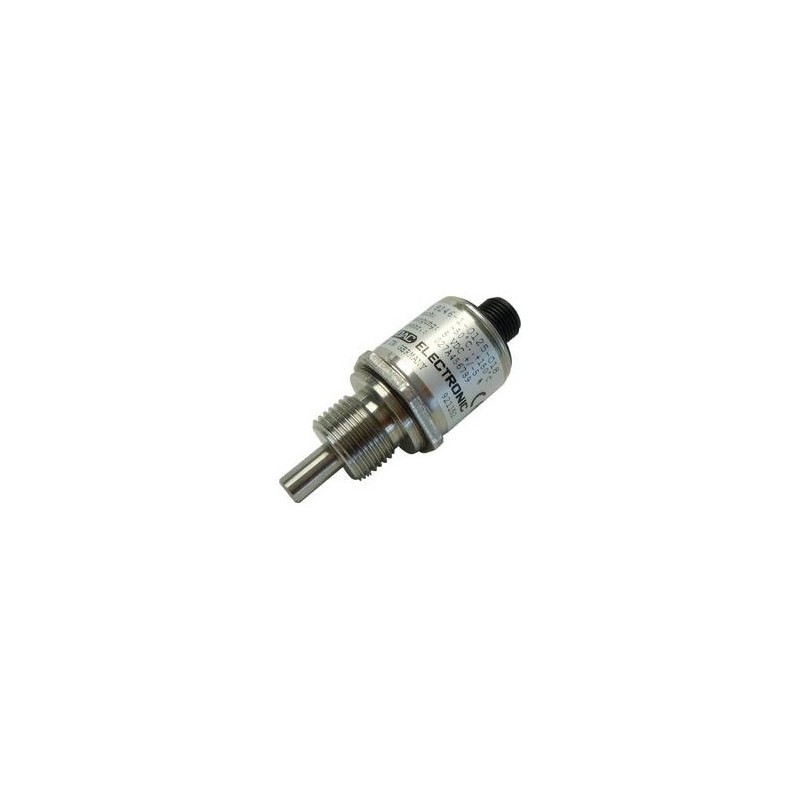

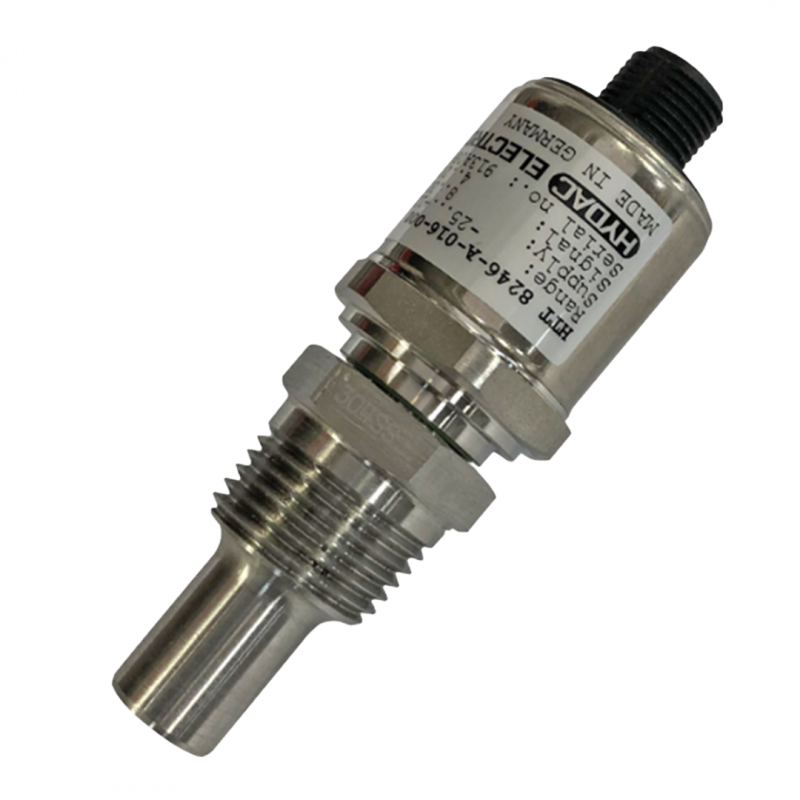

Hydac Electronic Temperature Transmitter HTT 8000
The HYDAC HTT 8000 is a compact and robust electronic temperature transmitter designed for OEM and mobile applications, with a standard measuring range of -25 to +120 °C. It offers multiple analogue output options, high pressure resistance up to 600 bar, and excellent EMC performance making it ideal for demanding environments.
Key Features:
- Measuring ranges 1) -25 .. +120 °C
- Pressure resistance: 600 bar
- Probe length: 16 mm
- Probe diameter: 6.7 mm

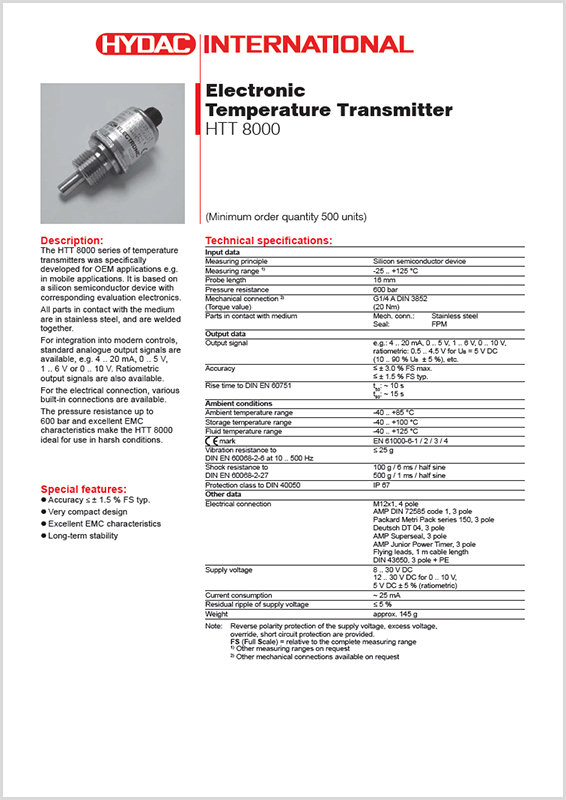

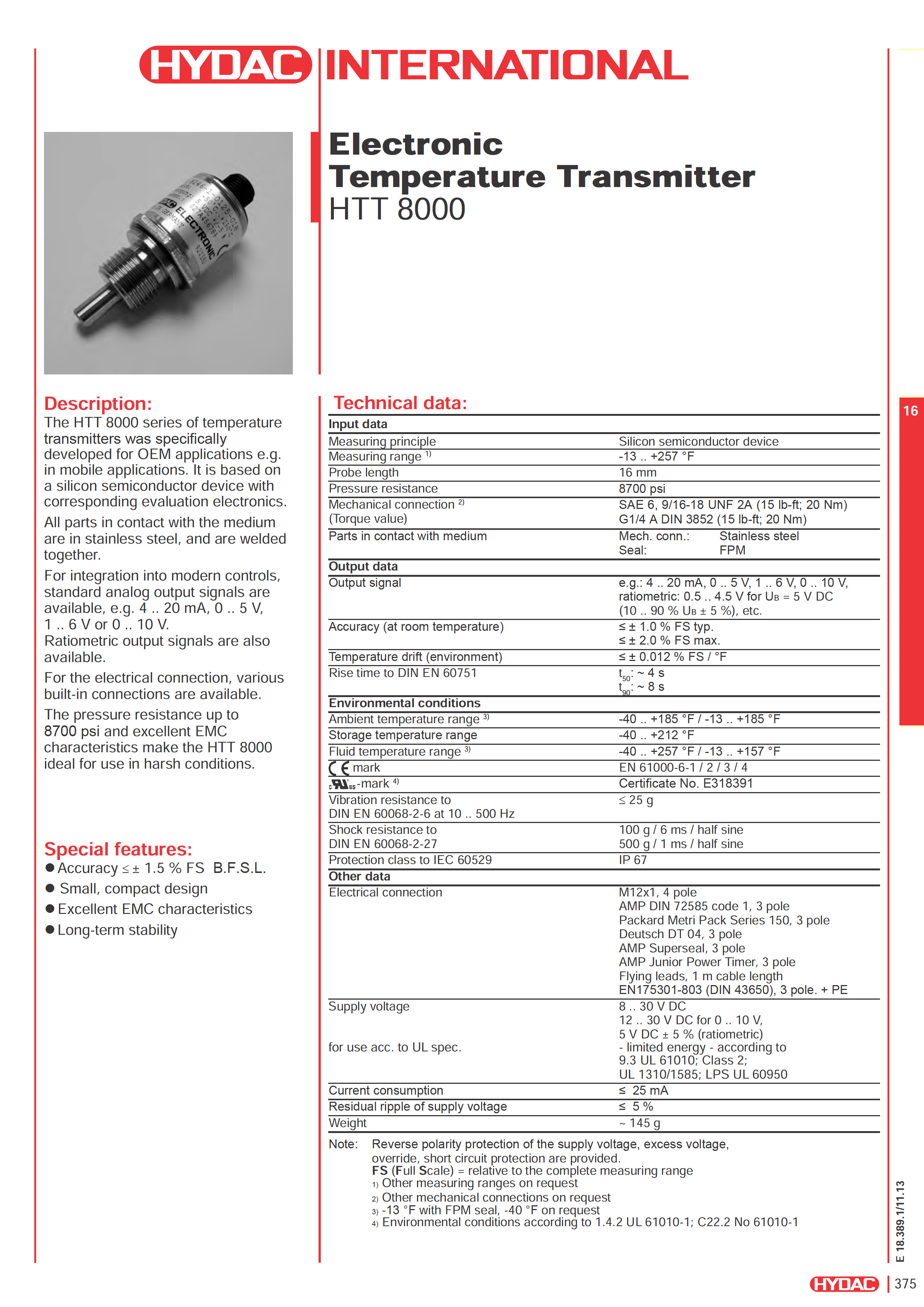

HYDAC Electronic Temperature Transmitter HTT 8000
- Measuring ranges 1) -25 .. +120 °C
- Pressure resistance: 600 bar
- Probe length: 16 mm
- Probe diameter: 6.7 mm
1) Other measuring ranges on request
Features:
- Accuracy ≤ ±1.5% FS typ
- Very compact design
- Exceptional EMC properties
- Long-term stability
General Function:
The HTT 8000 series of temperature transmitters was specifically developed for OEM applications e.g. in mobile applications. It is based on a silicon semiconductor device with corresponding evaluation electronics. All parts in contact with the medium are in stainless steel and are welded together. For integration into modern controls, standard analogue output signals are available, e.g. 4 ... 20 mA, 0 ... 5 V, 1 ... 6 V or 0 ... 10 V. Ratiometric output signals are also obtainable. A variety of connection plugs, which are integrated in the device, are available for the electrical interface. With a pressure resistance of 600 bar and excellent EMC characteristics, the HTT 8000 is ideal for use in harsh conditions.
