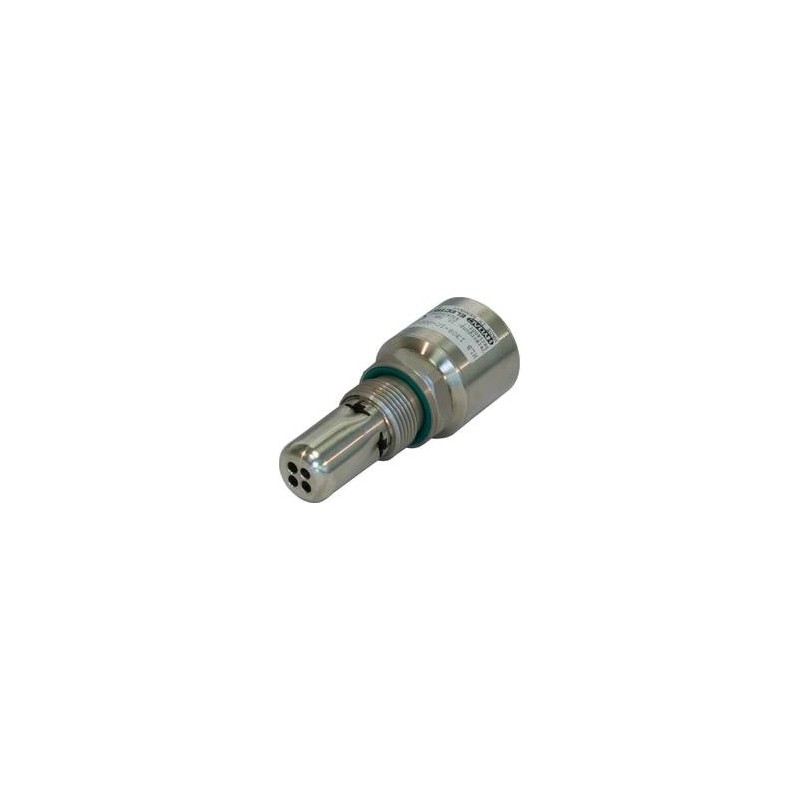

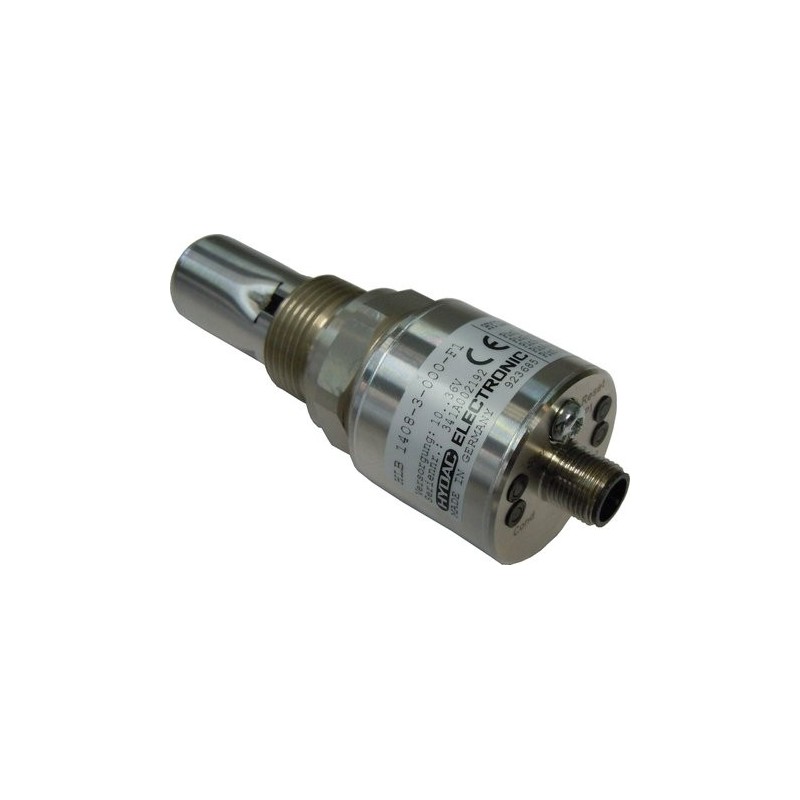

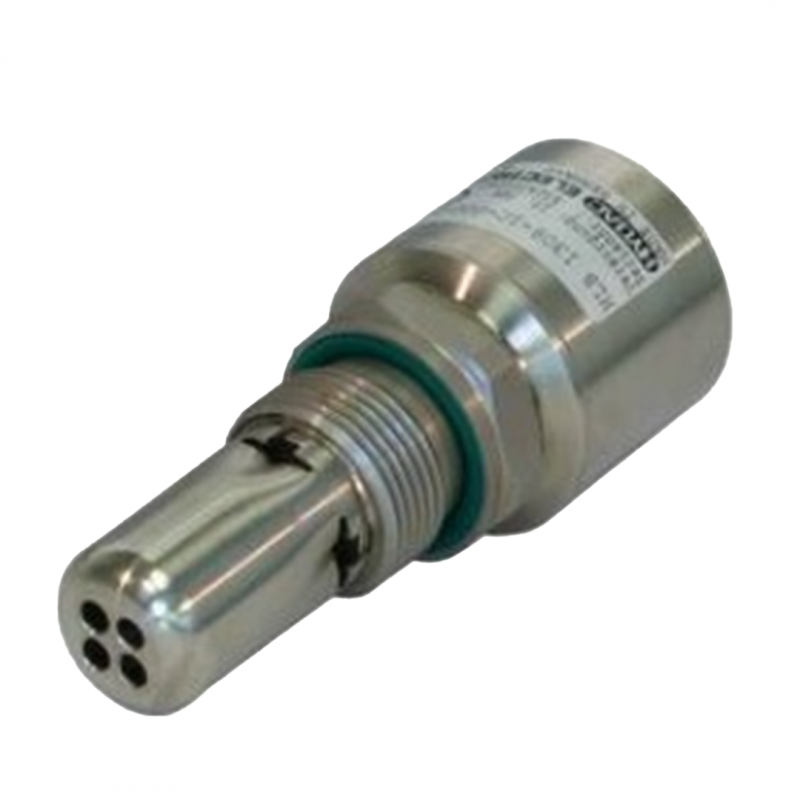

Hydac Oil Condition Sensor HLB 1300 HYDACLab®

Hydac Oil Condition Sensor HLB 1300 HYDACLab®

• Temperature: -25 .. +100 °C
• Operating pressure: < 50 bar
• Pressure resistance: < 600 bar
• Flow velocity: < 5 m/s

Features:

• Online condition monitoring of oils
• Applications in industrial and mobile sectors
• Analogue output signal for:
  - Saturation level
  - Temperature
  - Rel. change in dielectric constant
• Switching output
• Compact design
• Simple cartridge mounting

General Function:

The HYDACLab® HLB 1300 is a multifunctional sensor for online condition monitoring of standard and bio oils in stationary and mobile applications. The user is thus informed in real time of changes in the fluids and can take immediate action in the case of deteriorating operating conditions.
Assertions can be made about the condition of an oil, e.g. ageing or mixing with other fluids, on the basis of the measured values for the relative change in dielectric constant, the saturation level and the temperature. These measurements are available as sequential analogue signals and switching signals at the electrical output of the HYDACLab® (e.g. for activating warning devices or alarms). The measured values can be displayed on various HYDAC display and measurement devices.
