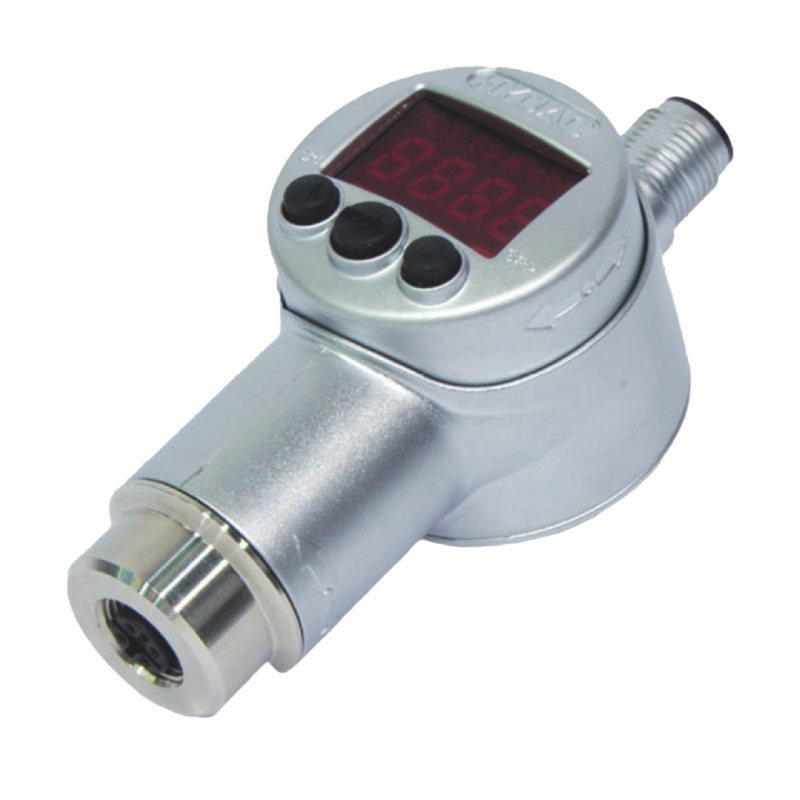

Hydac Electronic Temperature Switch ETS 3800 for Separate Temperature Probe with Menu Navigation to VDMA

The HYDAC ETS 3800 with VDMA menu navigation is a compact temperature switch for use with separate probes, offering a -30 to +150 °C range. It features intuitive setup, configurable outputs, and a rotatable 4-digit display for flexible installation.

Key Features:

  • Measuring range1) -30 .. +150°C (-22 .. 302°F)
  • Display: 4-digit, LED, 7 segment, red, height of digits 7mm
  • Connection, separate temp' probe Female cable connection: M12x1, 4 pole

Depending on the temp' range of the connected temp' sensor, the measurement range of the ETS 3800 may be reduced

Print page

Description
Downloads
Hydac Electronic Temperature Switch ETS 3800 for Separate Temperature Probe with Menu Navigation to VDMA

HYDAC Electronic Temperature Switch ETS 3800 for Separate Temperature Probe with Menu Navigation to VDMA

  • Measuring range1) -30 .. +150 °C (-22 .. 302 °F)
  • Display: 4-digit, LED, 7 segment, red, height of digits 7 mm
  • Connection, separate temperature probe Female cable connection: M12x1, 4 pole

1) Depending on the temperature range of the connected temperature sensor, the measurement range of the ETS 3800 may be reduced.

Features:

  • Menu navigation according to VDMA
  • 2 switching outputs, up to 1.2 A load per output
  • Optional analogue output signal selectable (4 .. 20 mA / 0 .. 10 V)
  • 4-digit display
  • Display can be rotated in two axes for optimal alignment
  • Switching / switch-back points and many useful additional functions can be set using keypad
  • Display of temperature and unit of measurement in °C or °F

General Function:

The ETS 3800 model for separate temperature probe has a measuring range of -30 .. +150°C and is used primarily with the TFP 100 temperature probe which was specially developed for tank installation. It is also possible, however, to use commercially available PT 100 temperature probes. Different output models with one or two switching outputs, and with the possible option of an additional analogue output signal, offer a variety of application possibilities.
The switching points and the associated switch-back points can be adjusted very quickly and easily using the keypad. For optimum adaptation to the particular application, the unit has many additional adjustment parameters (e.g. switching delay times, N/C / N/O function, etc.).
