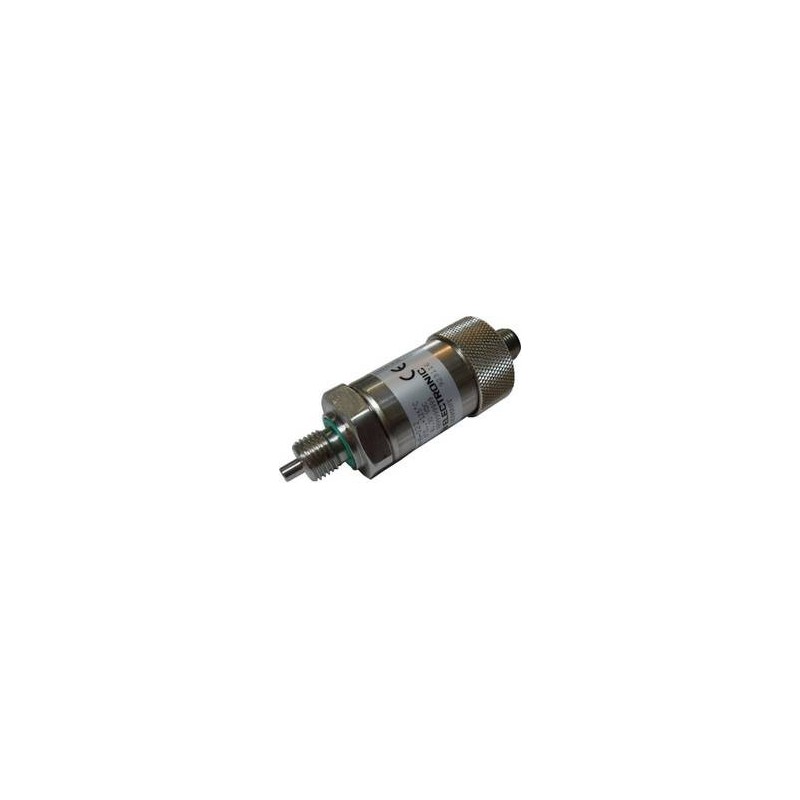

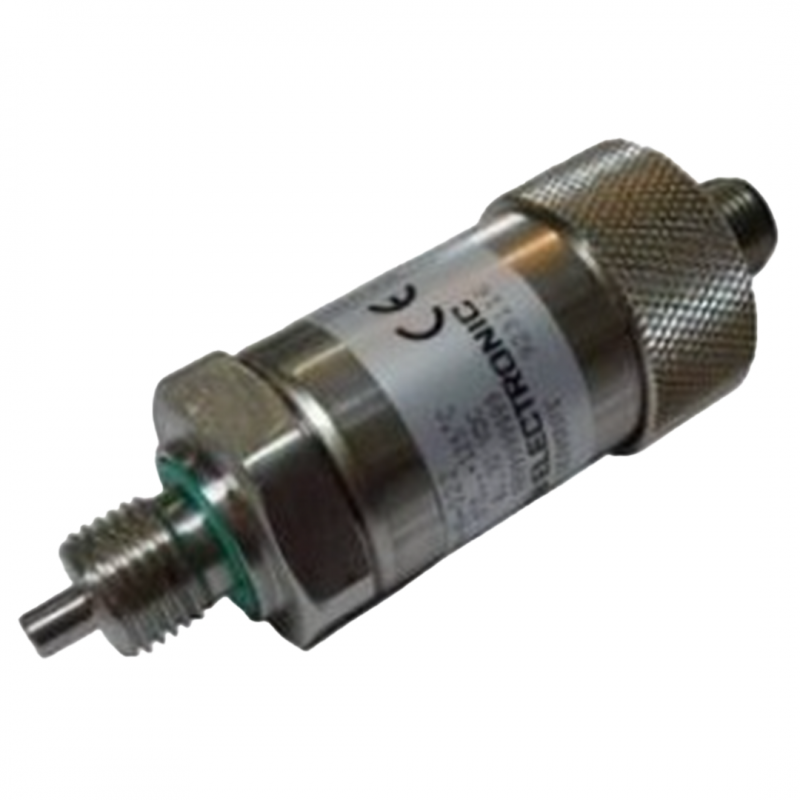

Hydac Electronic Temperature Transmitter with HSI Sensor Recognition ETS 4148-H

The HYDAC ETS 4148-H is a compact electronic temperature transmitter with HSI sensor recognition, designed for seamless integration with HYDAC measuring instruments. It offers automatic sensor detection, data transfer, and configuration, ensuring easy setup and reliable temperature measurement from -25 to +100 °C. With its robust design, IP67 protection, and excellent EMC performance, it's ideal for demanding industrial environments.

Key Features:

  • Measuring range: -25 .. +100 °C
  • Probe length: 6 mm
  • Mechanical connection: G1/4 A DIN 3852

Description
Downloads

HYDAC Electronic Temperature Transmitter with HSI Sensor Recognition ETS 4148-H

  • Measuring range: -25 .. +100 °C
  • Probe length: 6 mm
  • Mechanical connection: G1/4 A DIN 3852

Features:

  • Fully automatic sensor recognition by, and voltage supply from, HYDAC measuring instruments HMG 500, HMG 510, HMG 3000, HMG 3010 and CMU 1000
  • Automatic transfer of measuring range, measured value and measurement unit
  • Accuracy ≤ ± 0.8 % FS
  • Robust design
  • Excellent EMC characteristics
  • Excellent long term stability
  • Standard protection class IP 67

General Function:

The electronic temperature transmitter ETS 4148-H with HSI sensor recognition has been specially developed for use in conjunction with HYDAC measuring instruments HMG 500, HMG 510, HMG 3000, HMG 3010 and CMU 1000.
For data transmission, the ETS 4148-H has an HSI interface (HYDAC Sensor Interface). The HSI sensors are automatically recognised by the above-mentioned HYDAC measuring instruments and all necessary basic settings are taken from each sensor.
Like all temperature transmitters of the ETS 4000 series, the ETS 4148-H features a robust design and excellent EMC properties. Based on corresponding evaluation electronics, the temperature sensor is designed to measure temperatures in the range -25 °C to +100 °C.
