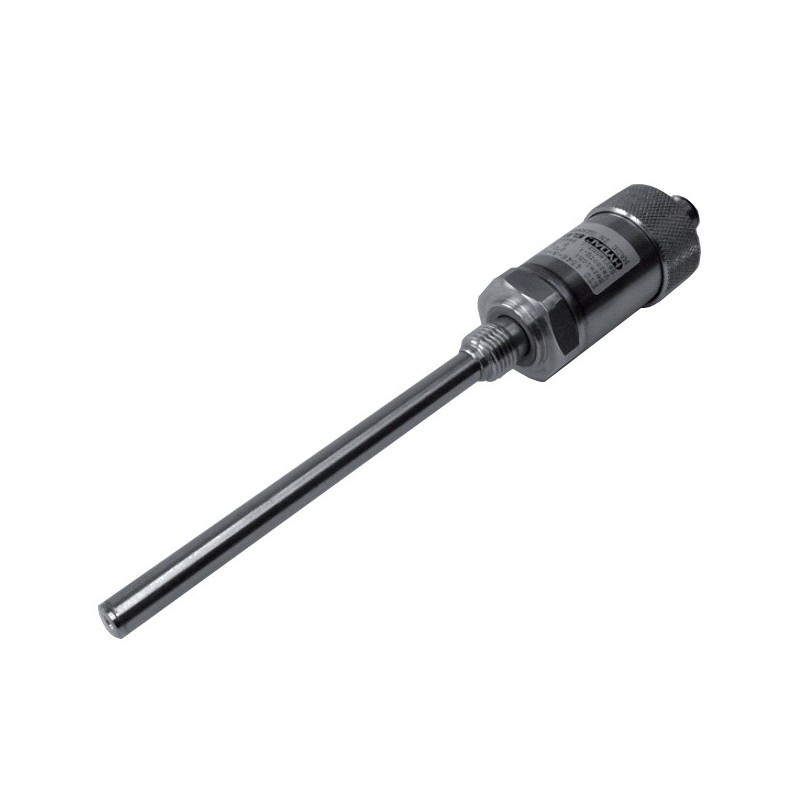

Hydac Electronic Temperature Transmitter ETS 4500
The HYDAC ETS 4500 is a durable electronic temperature transmitter designed for industrial and hydraulic applications, with a measuring range of -25 to +100 °C. Featuring analogue outputs (4–20 mA / 0–10 V), it offers reliable performance in demanding environments thanks to its robust design, high pressure resistance (up to 600 bar), and excellent EMC characteristics.
Key Features:
- Measuring range: -25 .. +100 °C
- Probe length: 10.7; 50; 100; 250; 350 mm
- Probe diameter: 8 mm
- Mechanical connection: G1/4 A DIN 3852

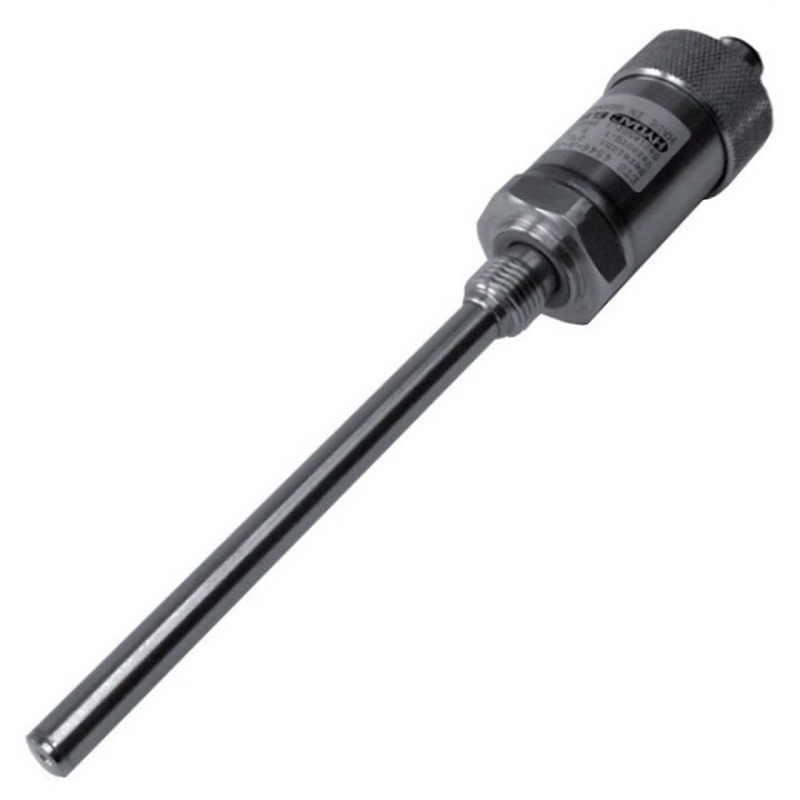

HYDAC Electronic Temperature Transmitter ETS 4500
- Measuring range: -25 .. +100 °C
- Probe length: 10.7; 50; 100; 250; 350 mm
- Probe diameter: 8 mm
- Mechanical connection: G1/4 A DIN 3852
Features:
- Accuracy ≤ ± 2 % FS
- Ideal for industrial applications
- Robust design
- Excellent EMC characteristics
- Excellent long term stability
- Standard protection class IP 65 / IP 67
General Function:
The ETS 4500 is a robust electronic temperature transmitter which is particularly suited to measuring temperature in hydraulic applications in industry. Based on a silicon semiconductor device and corresponding evaluation electronics, the temperature sensor is designed to measure temperatures in the range -25 to +100 °C.
The sensor has analogue output signals of 4 .. 20 mA and 0 ..10 V available as standard for integration in modern control systems. The pressure resistance up to 600 bar and excellent EMC characteristics make the ETS 4500 ideal for use in harsh conditions.
