Enerpac V-Series Hydraulic Pressure and Flow Control Valves

Name: Enerpac V-Series Hydraulic Pressure and Flow Control Valves
Brand: Enerpac
SKU: 6090
Price: 194.4 GBP
Availability: PreOrder

Enerpac V-Series hydraulic pressure and flow control valves are rated for 700 bar operating pressure and are painted, coated, or plated for corrosion resistance

Print page

First Name *

Last Name *

Position *

Email *

Company Name *

Contact Number *

Town/City *

Message *

Products

Downloads

Description

Part Number	Valve Type	Price
V82 V82	V-82 Needle Valve	£167.00 £200.40 Inc. VAT
V182 V182	V-182 Needle Valve	£162.00 £194.40 Inc. VAT
V8F V8F	V-8F Needle Valve	£493.00 £591.60 Inc. VAT
V91 V91	V-91 Snubber Valve	£167.00 £200.40 Inc. VAT
V10 V10	V-10 Auto Damper Valve	£199.00 £238.80 Inc. VAT
V17 V17	V-17 Check Valve	£256.00 £307.20 Inc. VAT
V42 V42	V-42 Check Valve	£453.00 £543.60 Inc. VAT
V66 V66	V-66 Check Valve	£317.00 £380.40 Inc. VAT
V66F V66F	V-66F Check Valve	£580.00 £696.00 Inc. VAT
V66NV V66NV	V-66NV Check Valve	£406.00 £487.20 Inc. VAT
V152 V152	V-152 Pressure Relief Valve	£437.00 £524.40 Inc. VAT
V152NV V152NV	V-152NV Pressure Relief Valve	£559.00 £670.80 Inc. VAT
V161 V161	V-161 Sequence Valve	£500.00 £600.00 Inc. VAT

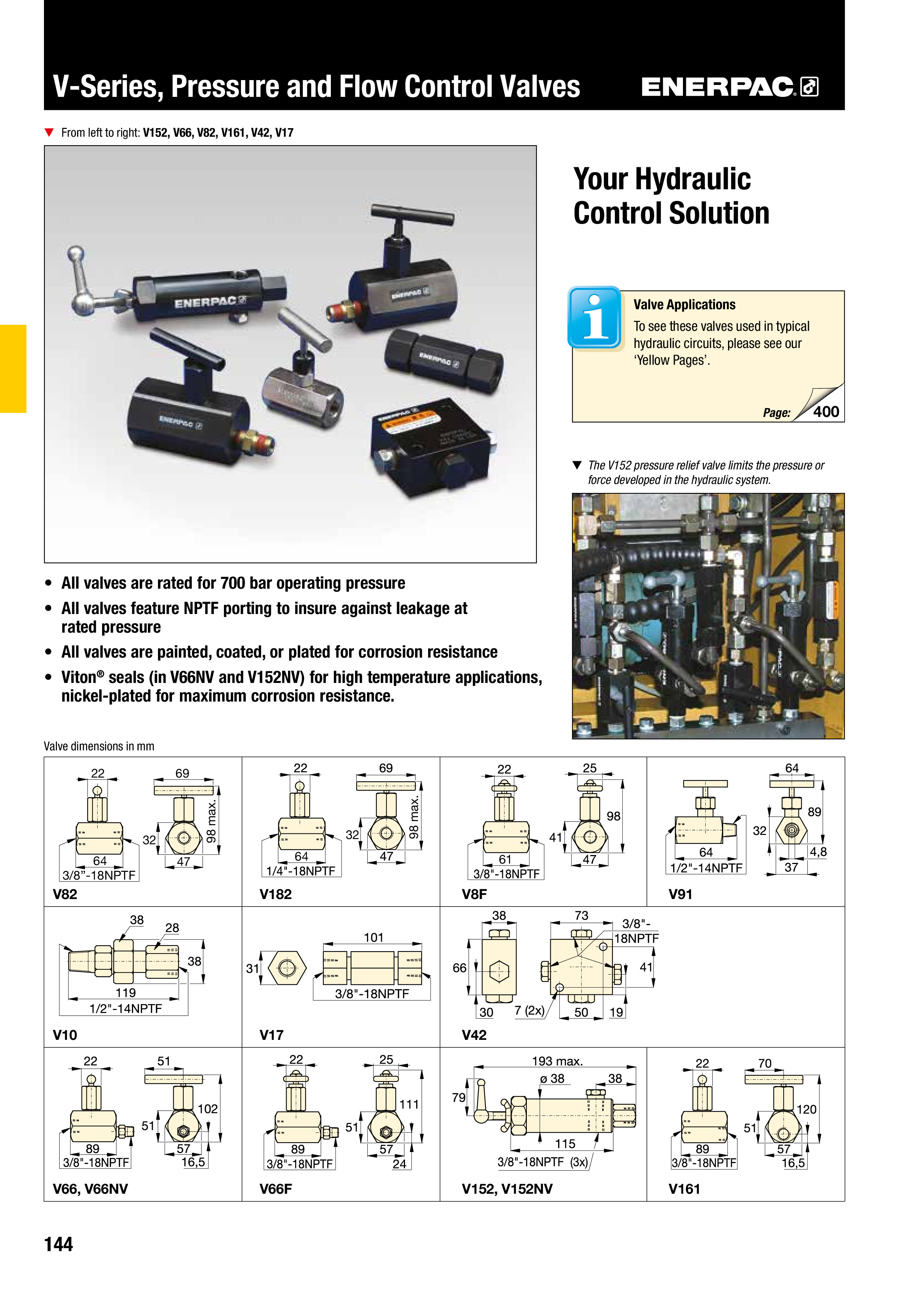

V-Series_Flow_Pressure_Control_Valves_EN-GB

Enerpac V-Series Manually Operated Hydraulic Check Valves

Enerpac flow and pressure control valves are rated for 700 bar operating pressure
All valves feature NPTF porting to insure against leakage at rated pressure
All valves are painted, coated, or plated for corrosion resistance
Viton® seals (in V-66NV and V-152NV) for high temperature applications, nickel-plated for maximum corrosion resistance

Valve Types:

Needle valves: to control cylinder speed
V-82: can also be used as shut-off valve for temporary load holding
V-182: as V-82, also suitable for gauge snubbing
V-8F: as V-82, but with very fine metering for precise flow control. Not recommended as shut-off valve
V-91: Snubber valve, prevent snapping of gauge pointer when load or pressure is suddenly released. Also suitable as shut-off valve to protect gauge during high cycle applications
V-10: auto damper valve; protect gauge during high cycle applications
Check valves: for load holding with cylinders, to control oil flow direction
V-17: to resist shock and operate with low pressure drop
V-42: pilot-operated, pilot pressure ratio 14%
V-66: manually operated
V-66F: same as V-66, but with fine metering for precise oil flow control
Pressure relief valves: limits pressure in circuit developed by pump
V-152: ±3% repeatability
V-161: sequence valve; to control oil flow to a secondary circuit
