Hydro Cylinder

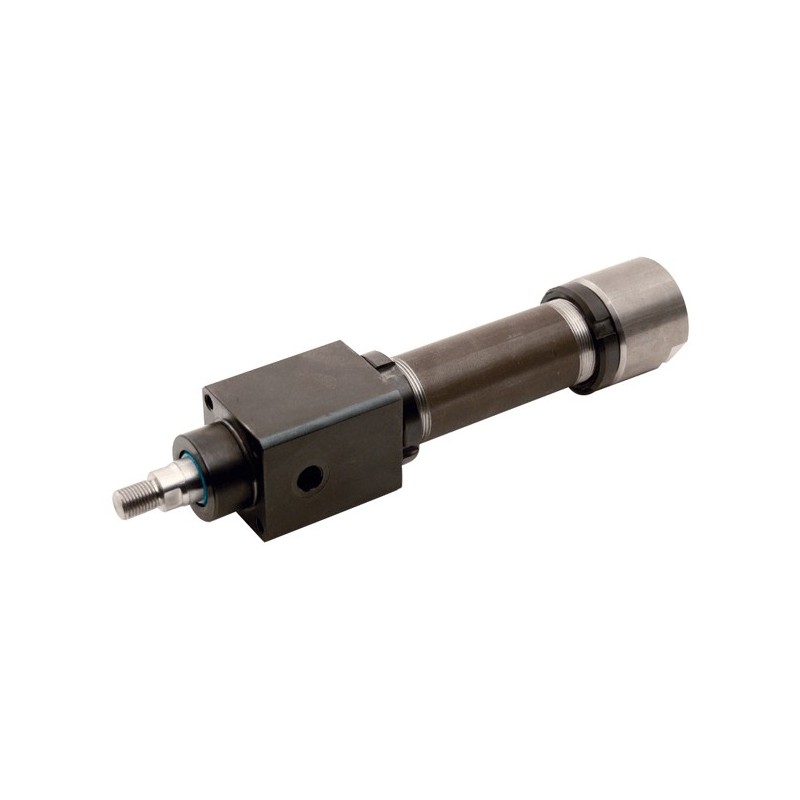

ROEMHELD B1.2811 Hydro-cylinder without stroke end cushioning
OBSOLETE ITEM - CONTACT HYQUIP
- Double acting
- Operating pressure 200 bar maximum
- Push force 9.8 to 100.5 kN
- Pull force 5.7 to 61.2 kN
- Strokes from 100 to 1000mm
This Hydro-cylinder is particularly suitable for fixture building, direct mounting the cylinder head and accurate centring. It is also available with a front flnage mounting option, this is purchased seperately. For operating conditions, tolerances and other data see datasheet A 0.100.
Description
Downloads
Hydro Cylinders without Stroke End Cushioning - ROEMHELD B1.2811
- Max. operating pressure 200 bar
- Piston diameter: 25 - 80 mm
- Rod diameter: 16 - 50 mm
- Max. push force: 9.8 - 100.5 kN
- Standard strokes: 100 - 1000 mm
Advantages:
- Compact design
- Max. piston speed 0.5 m/s
- Low wear and friction Glydring seals
- High service life due to the use of guide rings at the piston and the piston rod
- Negligible leakage by double sealing piston rod
- Piston rod induction hardened and chromium-plated
- Effective wiper seal
- Particularly suitable for fixture building by direct mounting on cylinder head (small pitch circle dia.) and accurate centring
- Connecting dimensions as per DIN ISO 6020
This Hydro-cylinder is particularly suitable for fixture building, direct mounting the cylinder head and accurate centring.
It is also available with a front flange mounting option, this is purchased separately
For operating conditions, tolerances and other data see datasheet A 0.100
