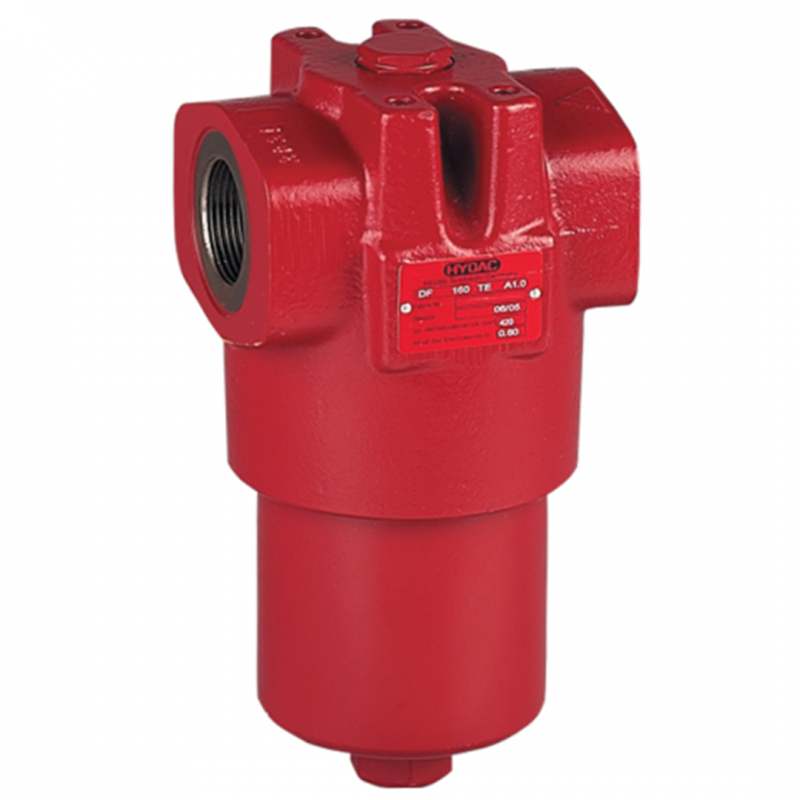

Hydac Inline Pressure Filters DF
The HYDAC Inline Pressure Filters DF series is built for high-pressure hydraulic systems, offering reliable filtration performance with pressure capacities up to 420 bar and flow rates up to 2,000 l/min. Designed to meet international standards, these filters are ideal for protecting sensitive components in demanding applications.
Key Features:
- Flow rates up to 2000 l/min
- Nominal Pressure levels up to 420 bar
- Connections: G½ to SAE DN 80
- Installation sizes: 30, 60, 110, 140, 160, 240, 280, 330, 500, 660, 990, 1320, 1500, 2000, 3000, 4000
Description
Downloads
HYDAC Inline Pressure Filters DF
- Flow rates up to 2000 l/min
- Pressure levels up to 420 bar
- Connections: G½ to SAE DN 80
- Installation sizes: 30, 60, 110, 140, 160, 240, 280, 330, 500, 660, 990, 1320, 1500, 2000, 3000, 4000
Features:
- Connection for a clogging indicator in filter head as standard
- 2-piece filter bowl standard for size DF/DFF/DFFX 990 and above
- The filter housings are designed in accordance with international regulations
- Certificates and approvals available on request
HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:
- ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889
Filter elements are available with the following pressure stability values:
- Betamicron® (BN4HC): 20 bar
- Betamicron® (BH4HC): 210 bar
- Wire mesh (W): 20 bar
- Stainless steel fibre (V): 210 bar
