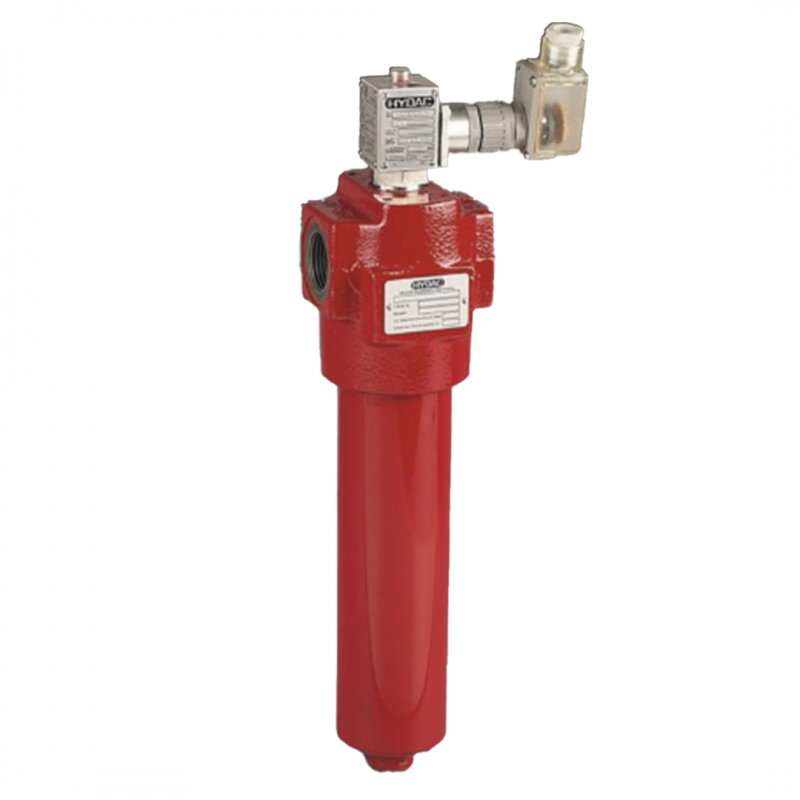

Hydac Inline Pressure Filters DFN /LFN to DIN 24550
HYDAC DFN and LFN inline pressure filters are designed for reliable contamination control in hydraulic systems, built to meet DIN 24550 standards. The DFN series supports high-pressure applications up to 400 bar, while the LFN is ideal for lower-pressure systems up to 100 bar.
Key Features:
- Flow rates up to 400 l/min and pressure levels up to 400 bar (DFN) or 100 bar (LFN)
- Robust two-piece design with optional bypass valve and clogging indicator port
- Compatible with ISO 2943 fluids; filter elements validated to ISO standards
Description

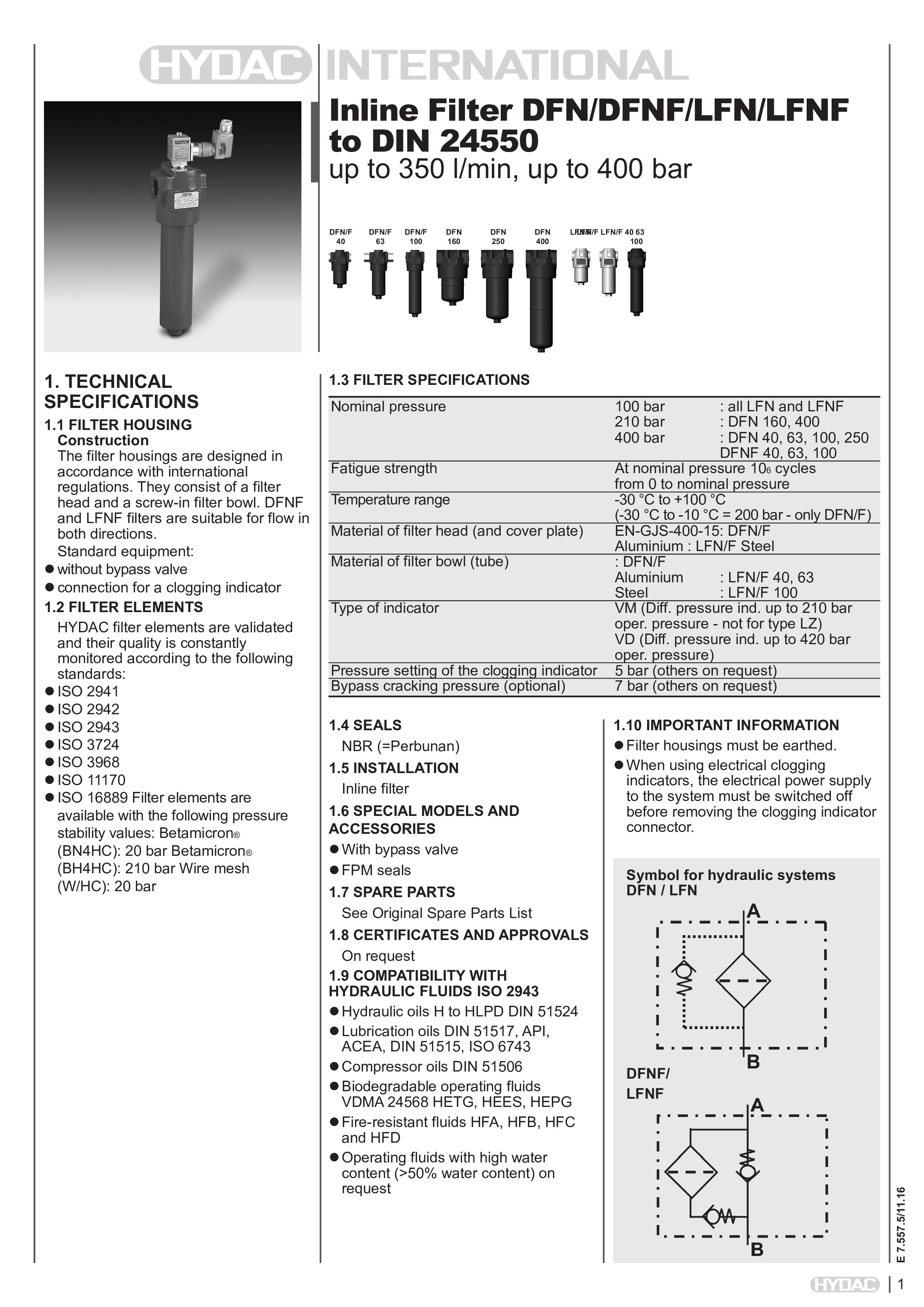

Downloads
HYDAC Inline Pressure Filters DFN /LFN to DIN 24550
DFN:
- Flow rates up to 400 l/min
- Pressure levels up to 400 bar
- Connections: G½ to SAE DN 40
- Installation sizes: 40, 63, 100, 160, 250, 400
LFN:
- Flow rates up to 100 l/min
- Pressure levels up to 100 bar
- Connections: G½ to G1
- Installation sizes: 40, 63, 100
Features:
- The filter housings are designed in accordance with international regulations
- They consist of a filter head and a screw-in filter bowl
- Without bypass valve
- Bypass cracking pressure (optional) 7 bar (others on request)
- Connection for a clogging indicator
- Pressure setting of the clogging indicator 5 bar (others on request)
- Special models and accessories available on request
- Compatibility with hydraulic fluids ISO 2943
- Certificates and approvals available on request
HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:
- ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889
Filter elements are available with the following pressure stability values:
- Betamicron® (BN4HC): 20 bar
- Betamicron® (BH4HC): 160 bar
- Wire mesh (W/HC): 20 bar
