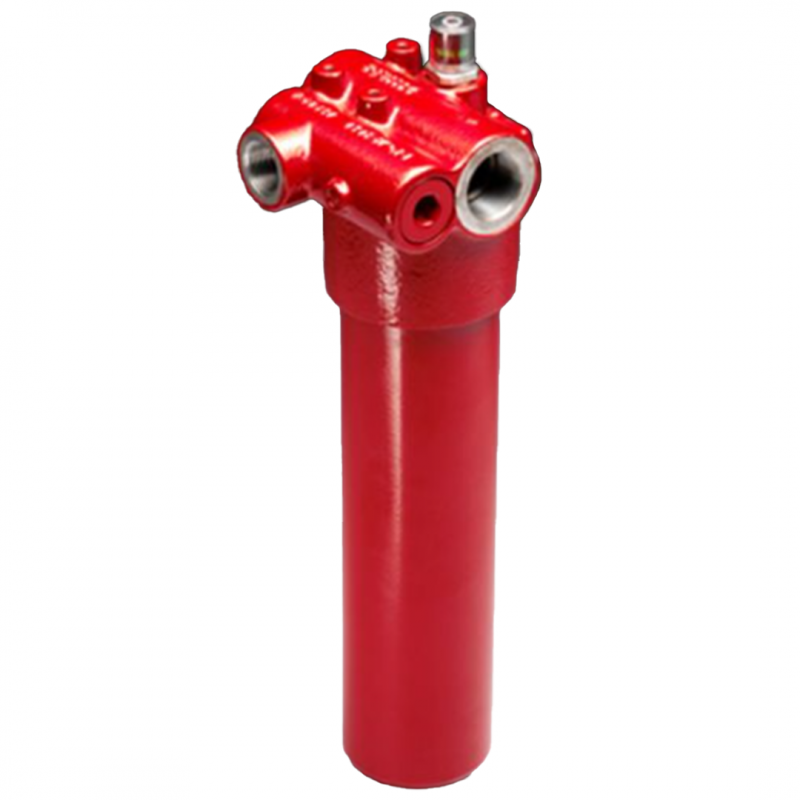

Hydac Inline Filter with Circulation Valve DFM
The HYDAC DFM series inline filters are engineered for high-pressure hydraulic systems, integrating a differential pressure-controlled circulation valve for reliable system protection. Designed for pressures up to 400 bar and flow rates up to 280 l/min, the DFM ensures efficient filtration and flow control.
Key Features:
- Flow rates up to 280 l/min
- Pressure levels up to 400 bar
- Connections: G1¼
Description

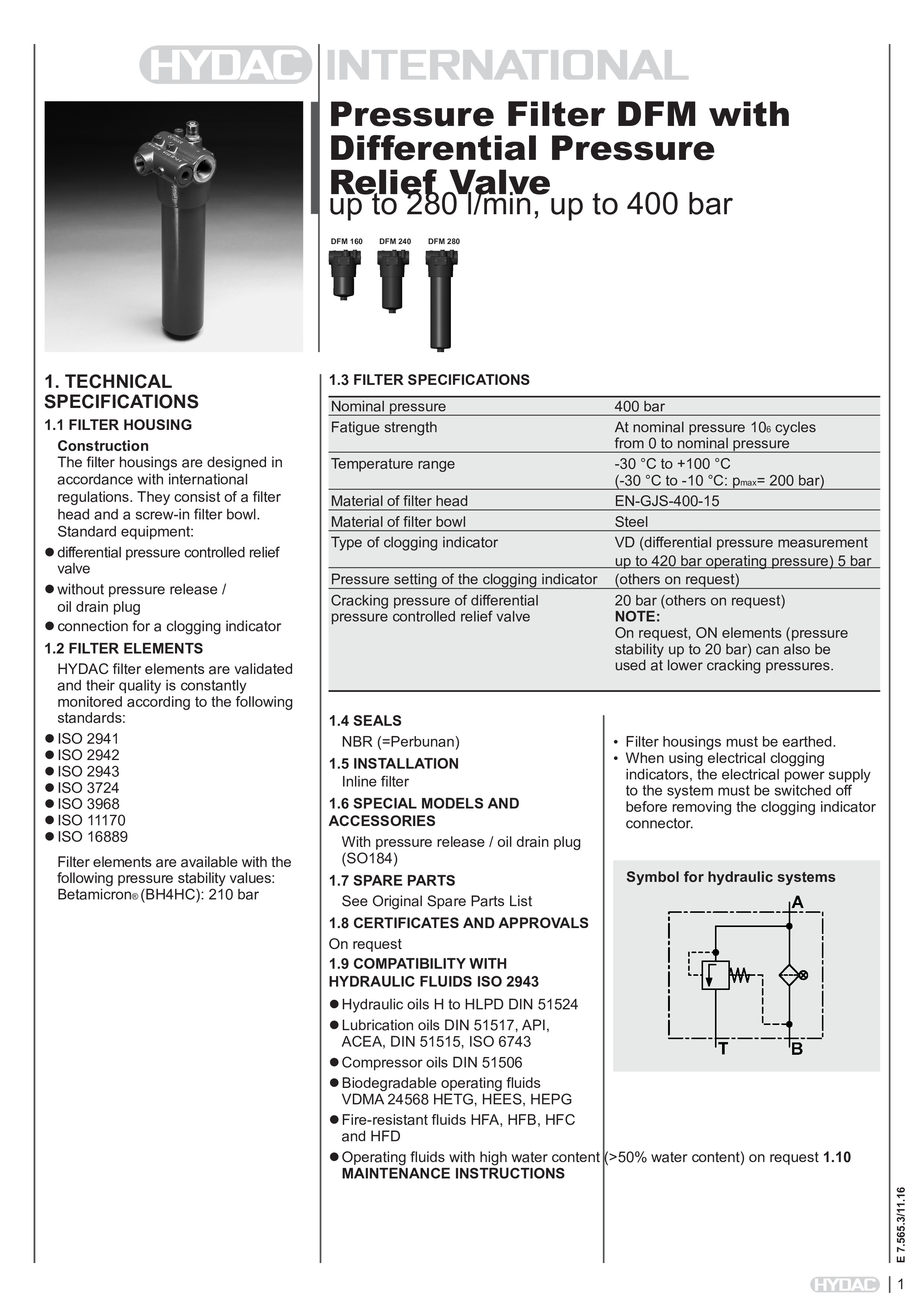

Downloads
HYDAC Inline Filter with Circulation Valve DFM
- Flow rates up to 280 l/min
- Pressure levels up to 400 bar
- Connections: G1¼
- Installation sizes: 160, 240, 280
- Material of filter head: EN-GJS-400-15
- Material of filter bowl: Steel
Features:
- The filter housings are designed in accordance with international regulations
- They consist of a filter head and a screw-in filter bowl
- Differential pressure controlled relief valve
- Connection for a clogging indicator
- Pressure setting of the clogging indicator 5 bar (others on request)
- Special models and accessories available on request
- Certificates and approvals available on request
HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:
- ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889
Filter elements are available with the following pressure stability values:
- Betamicron® (BH4HC): 210 bar
