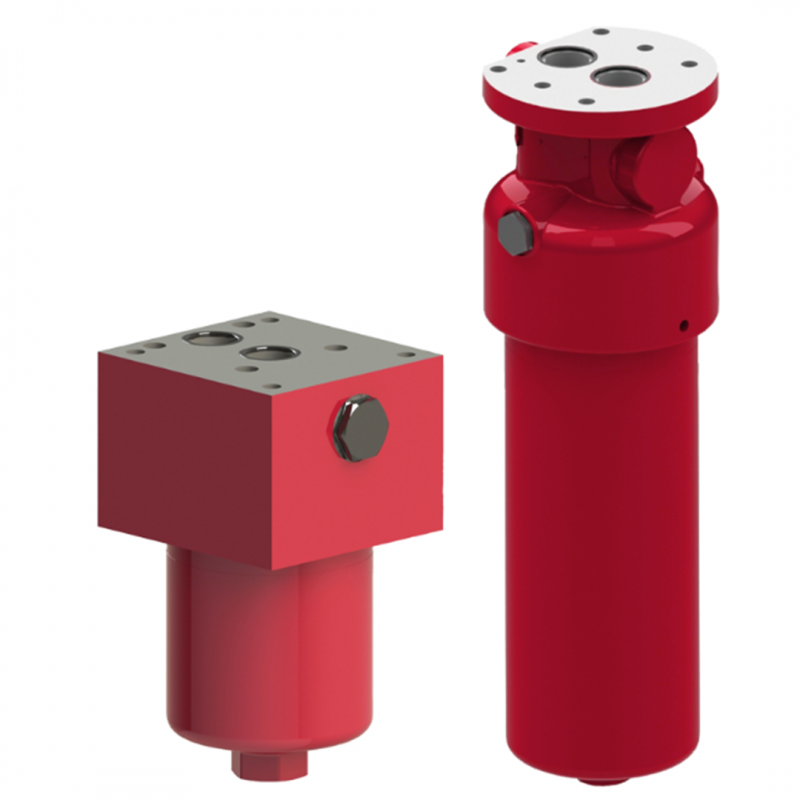

Hydac Pressure Filter DFP for Panel Mounting, Reversible Flow DFPF and SSDFP Stainless Steel, Flange-mounting
HYDAC's DFP series pressure filters are designed for panel or flange mounting in high-performance hydraulic systems, with models for standard (DFP), reversible flow (DFPF), and stainless steel applications (SSDFP). With flow rates up to 600 l/min and pressure capabilities up to 700 bar, these filters offer robust, reliable filtration for a wide range of industrial needs.
Key Features:
- Flow rates up to 600 l/min
- Pressure level up to 315 bar
- Connections: Flange Ø 17.5 to Ø 41.0
Description
Downloads
HYDAC Pressure Filter DFP for Panel Mounting, Reversible Flow DFPF and SSDFP Stainless Steel, Flange-mounting
- Flow rates up to 600 l/min
- Pressure level up to 315 bar
- Connections: Flange Ø 17.5 to Ø 41.0
- Installation sizes: 60, 110, 140, 160, 240, 280, 330, 500, 660, 990, 1320
- Reversible Flow DFPF Installation sizes: 60, 110, 140, 160, 240, 280, 330, 500, 660, 990, 1320
Features:
- The filter housings are designed in accordance with international regulations
- They consist of a filter head and a screw-in filter bowl
- Connection for a clogging indicator as standard
- Two-piece bowl for DFP/F 990 and above (optional for DFP/F 660 and above)
- Drain screw with pressure relief (standard for DFP/F 330 and above)
HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:
- ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889
Certificates and approvals available on request
Filter elements are available with the following pressure stability values:
- Betamicron® (BN4HC): 20 bar
- Betamicron® (BH4HC): 210 bar
- Wire mesh (W): 20 bar
- Stainless steel fibre (V): 210 bar
HYDAC SSDFP Inline filter stainless steel, flange-mounting
- Flow rates up to 20 l/min
- Pressure levels up to 700 bar
- Temperature range: -10°C up to +100°C
- Size: 30 (others on demand)
