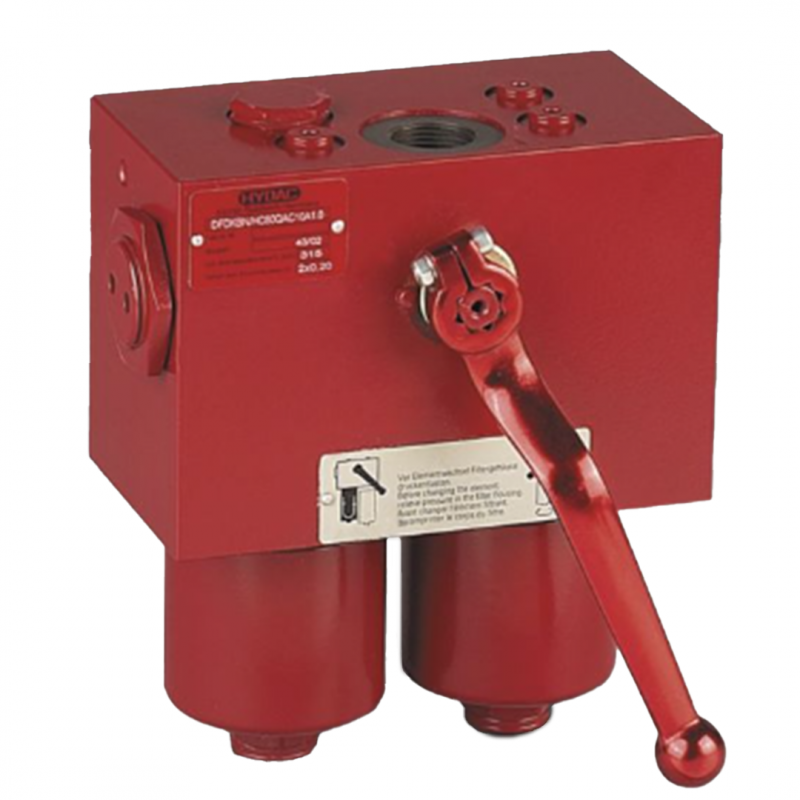

Hydac Reversible Pressure Filters DFDKN in Accordance with DIN 24550

HYDAC Reversible Pressure Filters DFDKN, designed in accordance with DIN 24550, provide reliable filtration for hydraulic systems with flow rates up to 400 l/min and pressure levels up to 315 bar. Featuring a ball change-over valve, clogging indicator port, and oil drain plug with pressure relief, they ensure optimal system performance and protection.

Key Features:

  • Flow rates up to 400 l/min
  • Pressure levels up to 315 bar
  • Connections: G½ to SAE DN 50

Print page

Description
Downloads
Hydac Reversible Pressure Filters DFDKN in Accordance with DIN 24550

HYDAC Reversible Pressure Filters DFDKN in Accordance with DIN 24550

  • Flow rates up to 400 l/min
  • Pressure levels up to 315 bar
  • Connections: G½ to SAE DN 50
  • Installation sizes: 40, 63, 100, 160, 250, 400

Features:

  • Ball change-over valve
  • Port for a clogging indicator
  • Oil drain plug with pressure relief
  • The filter housings are designed in accordance with international regulations
  • They consist of a filter head and a screw-in filter bowl

HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:

  • ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889

Filter elements are available with the following pressure stability values:

  • Betamicron® (BN4HC): 20 bar
  • Betamicron® (BH4HC): 210 bar
  • Wire mesh (W): 20 bar
