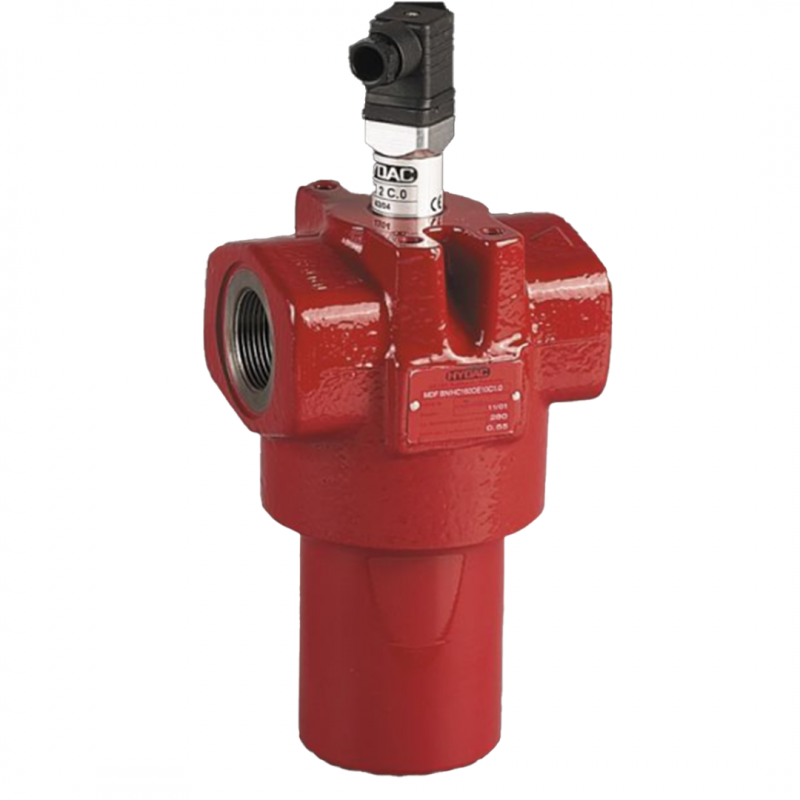

Hydac Pressure Filter MDF

HYDAC Pressure Filter MDF ensures efficient hydraulic filtration with flow rates up to 350 l/min and pressure levels up to 280 bar. Designed for durability, it features a robust filter head, screw-in filter bowl, clogging indicator connection, and standard mounting holes, offering reliable system protection and performance.

Key Features:

  • Flow rates up to 350 l/min
  • Pressure levels up to 280 bar
  • Connections: G½ to SAE DN 32

Description
Downloads

HYDAC Pressure Filter MDF

  • Flow rates up to 350 l/min
  • Pressure levels up to 280 bar
  • Connections: G½ to SAE DN 32
  • Installation sizes: 30, 60, 110, 160, 240

Feature:

  • The filter housings are designed in accordance with international regulations
  • They consist of a filter head and a screw-in filter bowl
  • Connection for a clogging indicator in filter head
  • Mounting holes in the filter head as standard

Filter elements are available with the following pressure stability values:

  • Betamicron® (BN4HC): 20 bar
  • Betamicron® (BH4HC): 210 bar
  • Wire mesh (W): 20 bar
  • Stainless steel fibre (V): 210 bar

HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:

  • ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889

Special models and accessories:

  • Bypass valve built into the head, separate from the main flow
  • Oil drain plug
  • Seals in FPM, EPDM
  • Test and approval certificates
