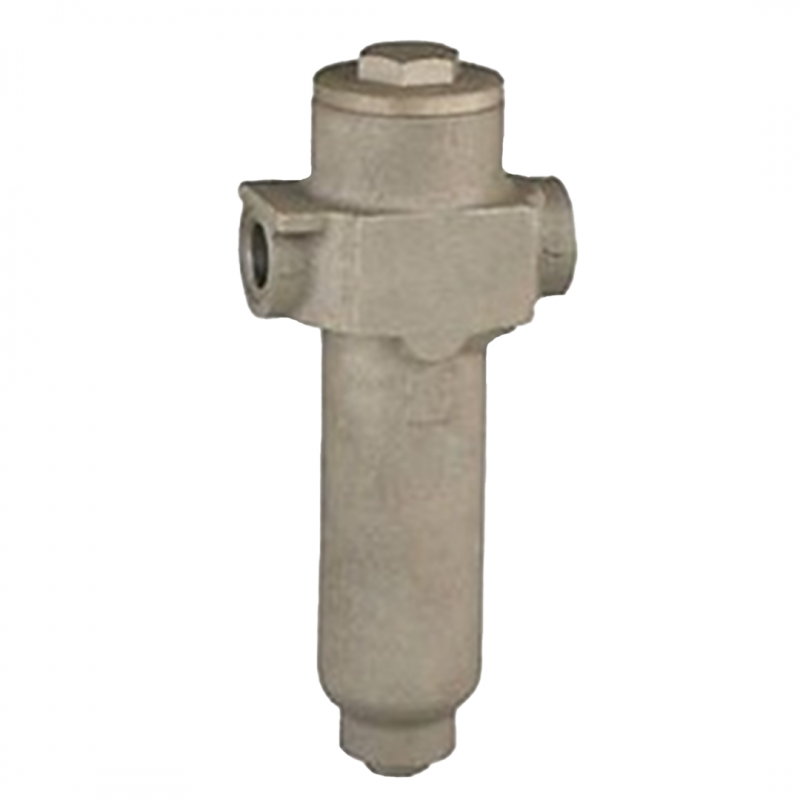

Hydac Inline Filter MDFR with Magnetic Core

HYDAC Inline Filter MDFR with Magnetic Core provides reliable hydraulic filtration with flow rates up to 250 l/min and pressure levels up to 250 bar. Designed for durability, it features a top-removable element, clogging indicator, and optional bypass cracking pressure, ensuring efficient system performance and contaminant control.

Key Features:

  • Flow rates up to 250 l/min
  • Temperature range: -10 °C to +120 °C
  • Pressure levels up to 250 bar

Print page

Description
Downloads
Hydac Inline Filter MDFR with Magnetic Core

HYDAC Inline Filter MDFR with Magnetic Core

  • Flow rates up to 250 l/min
  • Temperature range: -10 °C to +120 °C
  • Pressure levels up to 250 bar
  • Connections: G¾ to G1½
  • Installation sizes: 45, 80, 150, 250
  • Flow from inside to outside

Features:

  • The filter housings are designed in accordance with international regulations
  • They consist of a filter housing and a screw-on cover plate
  • The element is top-removable
  • Special models and accessories available on request
  • Type of clogging indicator VD (differential pressure measurement up to 400 bar operating pressure)
  • Pressure setting of the clogging indicator 2 bar (others on request)
  • Bypass cracking pressure (optional) 2.5 bar (others on request)

HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:

  • ISO 2941, ISO 2942, ISO 2943, ISO 3968, ISO 11170, ISO 16889

Filter elements are available with the following pressure stability values:

  • Glass fibre (ULP): 6 bar
  • Glass fibre with pre-filter (UHC): 6 bar
  • Wire mesh (WR): 6 bar
  • Other filtration ratings on request
