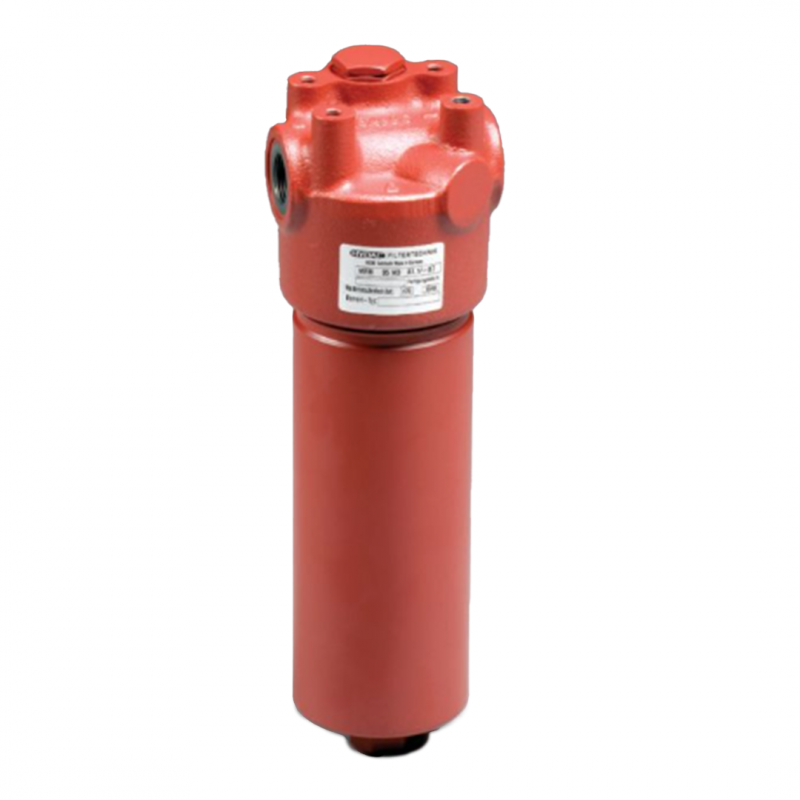

Hydac Inline Filter MFM

HYDAC Inline Filter MFM provides reliable hydraulic filtration with flow rates up to 100 l/min and pressure levels up to 280 bar. It features a robust phosphate and primed housing, a bypass valve, and a clogging indicator connection, ensuring efficient contaminant control and system protection.

Key Features:

  • Flow rates up to 100 l/min
  • Pressure levels up to 280 bar
  • Connections: M18x1.5 to G¾

Print page

Description
Downloads
Hydac Inline Filter MFM

HYDAC Inline Filter MFM

  • Flow rates up to 100 l/min
  • Pressure levels up to 280 bar
  • Connections: M18x1.5 to G¾
  • Installation sizes: 35, 55, 75, 95

Features:

  • The filter housings are designed in accordance with international regulations
  • They consist of a filter head and a screw-in filter bowl
  • Hydac MFM Inline filters are supplied phosphated and primed
  • Special models and accessories available on request

HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:

  • ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889

Standard equipment:

  • bypass valve
  • connection for a clogging indicator on the top of the head (4 mounting holes)
