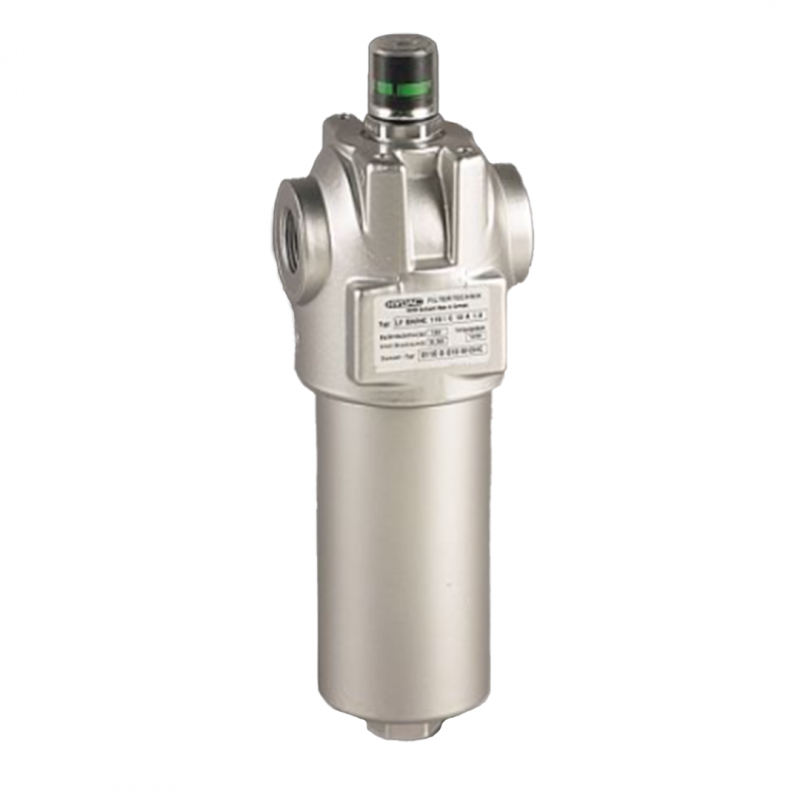

Hydac Inline Filter LF

HYDAC Inline Filter LF delivers reliable hydraulic filtration with flow rates up to 500 l/min and pressure levels up to 100 bar. Built with an aluminium filter head and bowl, it features a clogging indicator connection, mounting holes, and an optional bypass cracking pressure, ensuring efficient system performance and protection.

Key Features:

  • Flow rates up to 500 l/min
  • Pressure levels up to 100 bar
  • Reliable protection - clogging indicator and optional bypass

Description
Downloads

HYDAC Inline Filter LF

  • Flow rates up to 500 l/min
  • Pressure levels up to 100 bar
  • Connections: G½ to G1½
  • Material of filter head: Aluminium
  • Material of filter bowl: Aluminium
  • Installation sizes: 30, 60, 110, 160, 240, 330, 660

Features:

  • Pressure setting of the clogging indicator 5 bar (others on request)
  • Bypass cracking pressure (optional) 6 bar (others on request)
  • The filter housings are designed in accordance with international regulations
  • They consist of a filter head and a screw-in filter bowl
  • Special models and accessories available on request
  • Certificates and approvals available on request

Standard equipment:

  • Connection for a clogging indicator in filter head
  • Mounting holes in the filter head
  • Drain screw with pressure relief (LF 330 and above)

HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:

  • ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889

Filter elements are available with the following pressure stability values:

  • Betamicron® (BN4HC): 20 bar
  • Betamicron® (BH4HC): 210 bar
  • Wire mesh (W): 20 bar
  • Stainless steel fibre (V): 210 bar
