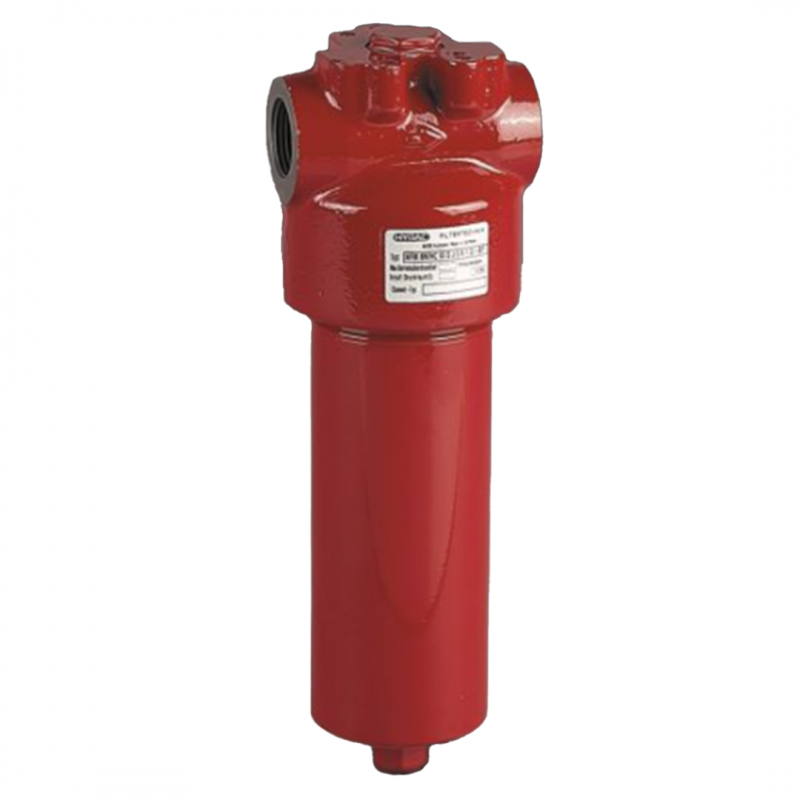

Hydac Pressure Filters HFM
HYDAC Pressure Filters HFM offer robust hydraulic filtration, supporting flow rates up to 140 l/min and pressures up to 400 bar. Featuring a screw-in filter bowl, built-in bypass valve, and clogging indicator connection, they ensure reliable system protection. Designed for durability, they are compatible with various hydraulic fluids and customizable to meet specific requirements.
Key Features:
- Flow rates up to 140 l/min
- Temperature range -10 °C to +100 °C (-30 °C to -10 °C: pmax= 200 bar)
- Pressure levels up to 400 bar
Description
Downloads
HYDAC Pressure Filters HFM
- Flow rates up to 140 l/min
- Temperature range -10 °C to +100 °C (-30 °C to -10 °C: pmax= 200 bar)
- Pressure levels up to 400 bar
- Connections: G¾ to G1
- Installation sizes: 75, 95
Features:
- The filter housings are designed in accordance with international regulations
- They consist of a filter head and a screw-in filter bowl
- Bypass valve as standard
- Bypass cracking pressure 7 bar (others on request)
- Connection for a clogging indicator on the top of the head (4 mounting holes)
- Type of clogging indicator VD (differential pressure measurement up to 420 bar operating pressure)
- Pressure setting of the clogging indicator 5 bar (others on request)
- Special models and accessories available on request
- Compatibility with hydraulic fluids ISO 2943
Certificates and approvals available on request
HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:
- ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889
Filter elements are available with the following pressure stability values:
- Betamicron® (BN4HC): 20 bar
