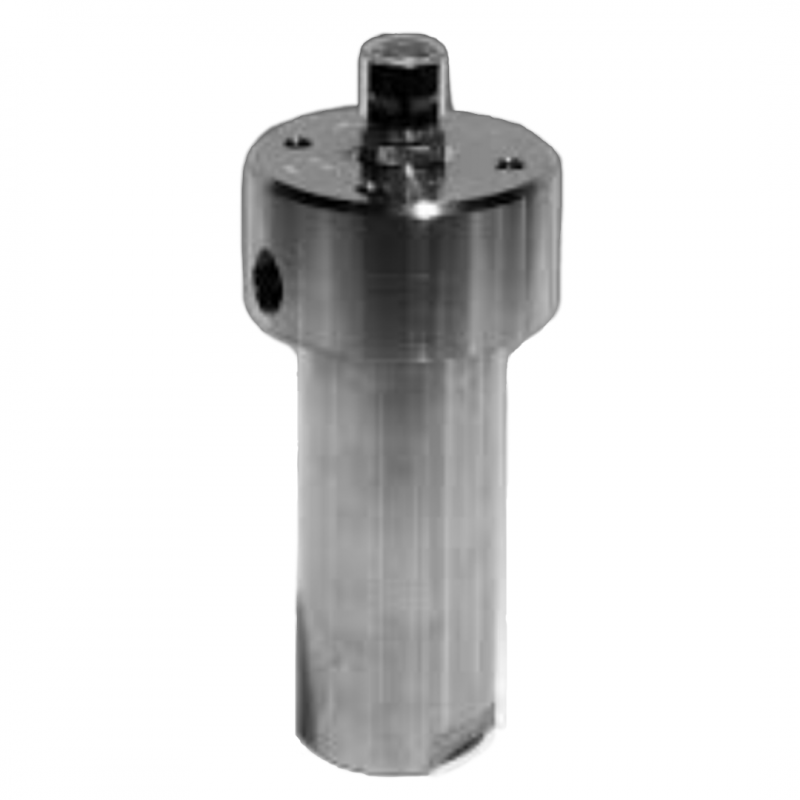

Hydac Stainless Steel High-pressure Filter ACSSF
HYDAC Stainless Steel High-Pressure Filter ACSSF delivers superior filtration for hydraulic systems, handling flow rates up to 100 l/min and extreme pressure levels up to 1000 bar. Engineered for durability, it features a clogging indicator connection, an oil drain plug, and optional configurations, ensuring reliable performance in demanding conditions.
Key Features:
- Flow rates up to 100 l/min
- Temperature range: -20 °C to +100 °C
- Pressure range up to 1000 bar
Description
Downloads
HYDAC Stainless Steel High-pressure Filter ACSSF
- Flow rates up to 100 l/min
- Temperature range: -20 °C to +100 °C
- Pressure range up to 1000 bar
- Connections: 9/16"-18 to 1-3/8"-12
- Installation sizes: 30, 60, 110, 160
Features:
- The filter housings are designed in accordance with international regulations
- HYDAC filter elements are validated and their quality is constantly monitored
- Certificates and approvals available on request
- Compatibility with hydraulic fluids ISO 2943
Standard equipment:
- Without bypass valve
- Connection for a clogging indicator
- Oil drain plug in filter bowl
Special models and accessories:
- Seals in NBR, NLT, EPDM, HNBR, Kalrez®
- Without bypass valve
- Without port for clogging indicator
- With 2 clogging indicators (visual and electrical)
- With Autoclave connection for external piping of pressure sensors
- Higher pressures on request
