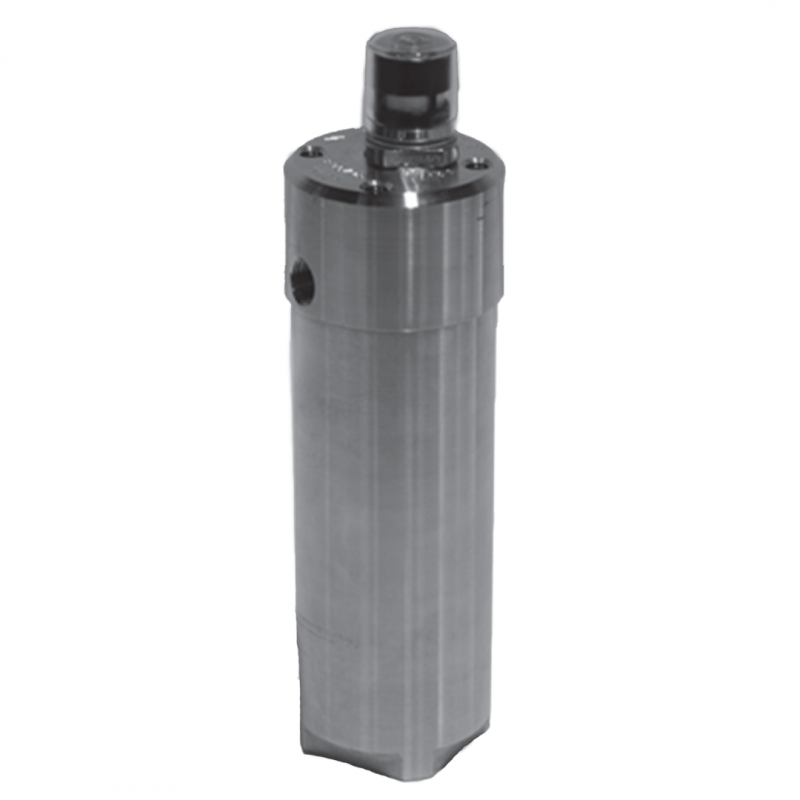

Hydac Stainless Steel High-pressure Filter HPSSF
HYDAC Stainless Steel High-Pressure Filter HPSSF is designed for demanding hydraulic applications, handling flow rates up to 130 l/min and pressures up to 700 bar. Featuring a screw-on filter bowl, integrated bypass valve, and a clogging indicator connection, it ensures effective contaminant control and system protection. Built for durability, it offers reliable filtration in high-pressure environments.
Key Features:
- Flow rates up to 130 l/min
- Temperature range: -20 °C to +100 °C
- Pressure levels up to 700 bar
Description
Downloads
HYDAC Stainless Steel High-pressure Filter HPSSF
- Flow rates up to 130 l/min
- Temperature range: -20 °C to +100 °C
- Pressure levels up to 700 bar
- Connections: ¼" NPT or BSPP to 1-3/8"-12
- Installation sizes: 30, 60, 110, 160, 240
Features:
- Bypass valve
- Bypass cracking pressure 6 bar (others on request)
- The filter housings are designed in accordance with international regulations
- They consist of a filter head and a screw-on filter bowl
- Connection for a clogging indicator
- Type of clogging indicator VDHP (Diff. pressure indicator up to 700 bar oper. pressure)
- Pressure setting of clogging indicator 5 bar (others on request)
- Oil drain plug in filter bowl
- Special models and accessories available on request
- Compatibility with hydraulic fluids ISO 2943
- Certificates and approvals available on request
HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:
- ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889
Filter elements are available with the following pressure stability values:
- Betamicron® (BN4HC): 20 bar
- Betamicron® (BN4HC) /-SS-SO361: 20 bar
- Betamicron® (BH4HC): 210 bar
- Betamicron® (BH4HC) /-SS-SO361: 210 bar
- Stainless steel wire mesh (D): 210 bar
- Wire mesh (W/HC): 20 bar
- Chemicron® (M): 210 bar
