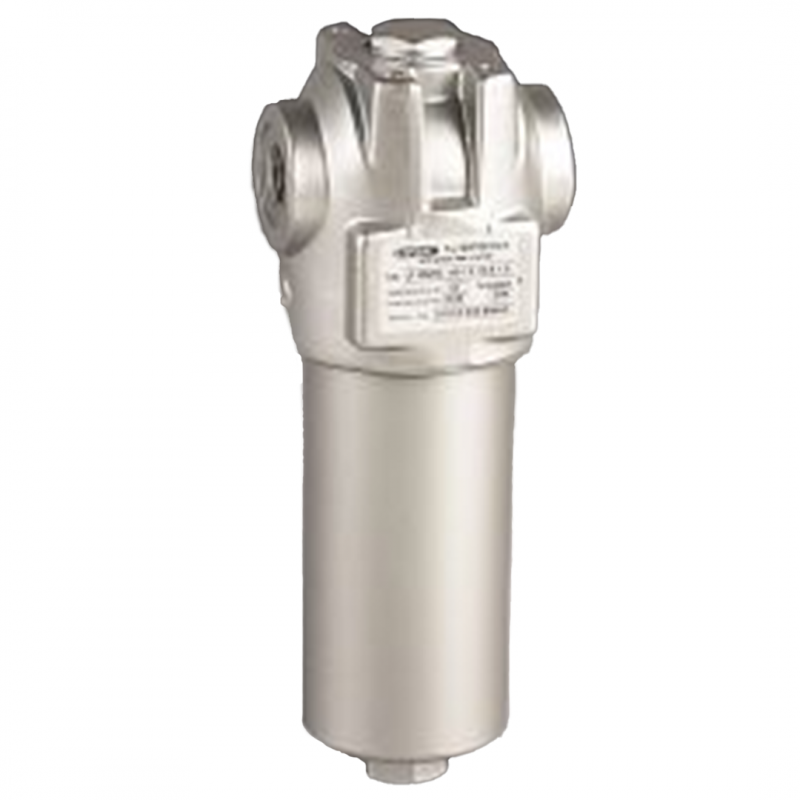

Hydac Pressure Filter DFN in Accordance with DIN 24550

HYDAC Pressure Filter DFN, designed in accordance with DIN 24550, provides reliable filtration for hydraulic systems with flow rates up to 400 l/min and pressure levels up to 400 bar. Featuring a screw-in filter bowl, clogging indicator connection, and compatibility with various hydraulic fluids, it ensures efficient contaminant control and system protection.

Key Features:

  • Flow rates up to 400 l/min
  • Pressure levels up to 400 bar
  • Connections: G½ to SAE DN 40

Print page

Description

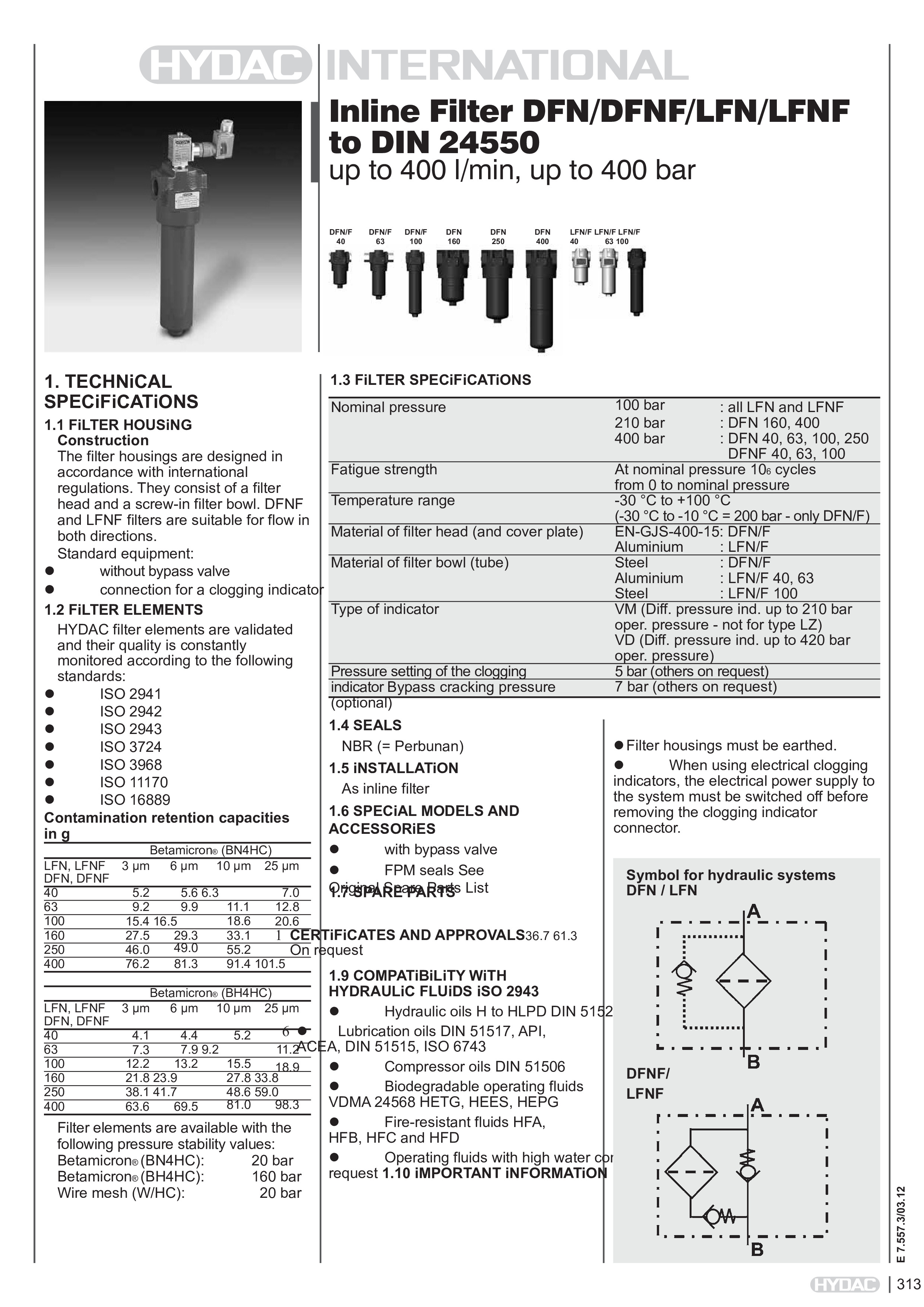

Downloads
Hydac Pressure Filter DFN in Accordance with DIN 24550

HYDAC Pressure Filter DFN in Accordance with DIN 24550

  • Flow rates up to 400 l/min
  • Pressure levels up to 400 bar
  • Connections: G½ to SAE DN 40
  • Installation sizes: 40, 63, 100, 160, 250, 400

Features:

  • The filter housings are designed in accordance with international regulations
  • They consist of a filter head and a screw-in filter bowl
  • Special models and accessories available on request
  • Compatibility with hydraulic fluids ISO 2943
  • Certificates and approvals available on request

HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:

  • ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889

Standard equipment:

  • Without bypass valve
  • Connection for a clogging indicator

Filter elements are available with the following pressure stability values:

  • Betamicron® (BN4HC): 20 bar
  • Betamicron® (BH4HC): 160 bar
  • Wire mesh (W/HC): 20 bar
