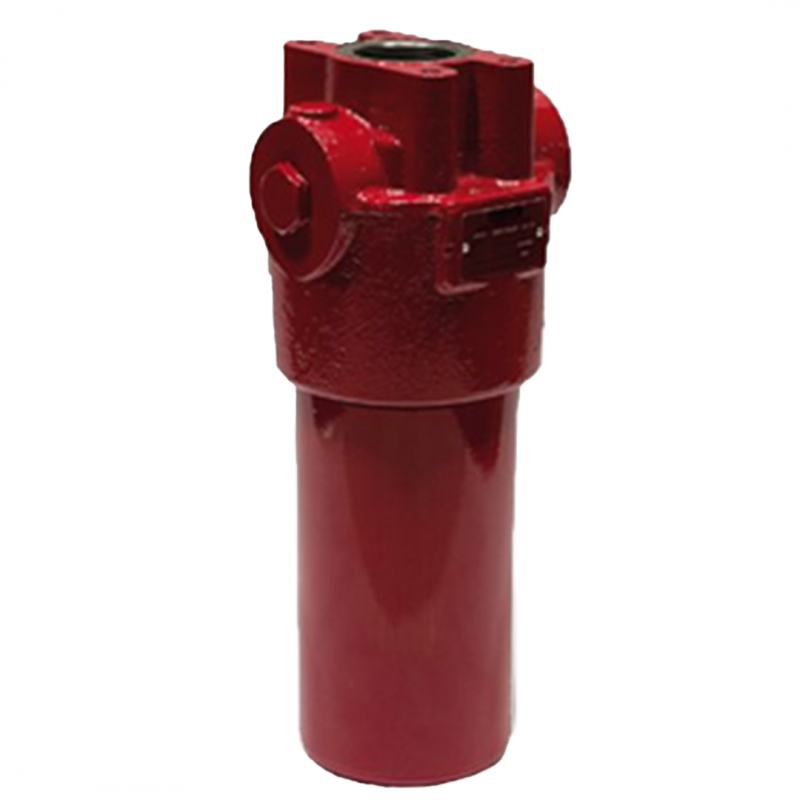

Hydac Inline Filter HDFF for Reversible Oil Flow

HYDAC Inline Filter HDFF is designed for reversible oil flow, handling flow rates up to 380 l/min and pressures up to 280 bar. Featuring an L-configured port, a screw-in filter bowl, and a clogging indicator connection, it ensures efficient filtration and system reliability. Built for demanding applications, it operates without a bypass valve and offers customization options to meet specific requirements.

Key Features:

  • Flow rates up to 380 l/min
  • Temperature range -30 °C to +100 °C (-30 °C to -10 °C: pmax = 140 bar)
  • Pressure levels up to 280 bar

Print page

Description
Downloads
Hydac Inline Filter HDFF for Reversible Oil Flow

HYDAC Inline Filter HDFF for Reversible Oil Flow

  • Flow rates up to 380 l/min
  • Temperature range -30 °C to +100 °C (-30 °C to -10 °C: pmax = 140 bar)
  • Pressure levels up to 280 bar
  • Installation sizes: 300, 450, 650, 900

Features:

  • The filter housings are designed in accordance with international regulations
  • They consist of a filter head and a screw-in filter bowl
  • Port in L-configuration
  • Without bypass valve
  • Connection for a clogging indicator in filter head
  • Pressure setting of clogging indicator 8 bar (others on request)
  • Special models and accessories available on request
  • Compatibility with hydraulic fluids ISO 2943
  • Certificates and approvals available on request

HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:

  • ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889

Filter elements are available with the following pressure stability values:

  • Betamicron® (BN4HC): 20 bar
  • Betamicron® (BH4HC): 210 bar
  • Other filtration ratings on request
