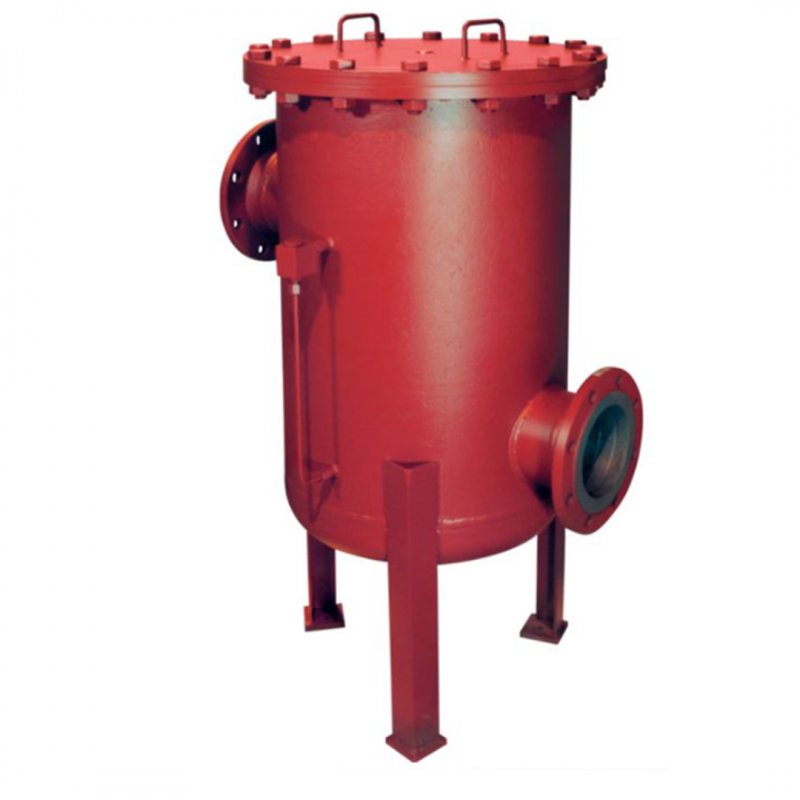

Hydac Welded Inline Filter RFL

HYDAC Welded Inline Filters RFL are heavy-duty filtration solutions designed for hydraulic systems with flow rates up to 15,000 l/min and pressures up to 16 bar. Featuring robust welded housings, bolt-on cover plates, and integrated stands, these filters ensure reliable contaminant removal and easy maintenance in demanding industrial applications.

Key Features:

  • Robust Welded Housing: Durable two-piece design with bolt-on cover plate for secure sealing
  • High Flow Capacity: Supports up to 15,000 l/min with pressure ratings up to 16 bar
  • Integrated Connections: Includes venting, draining, and clogging indicator ports for safe, efficient operation

Print page

Description

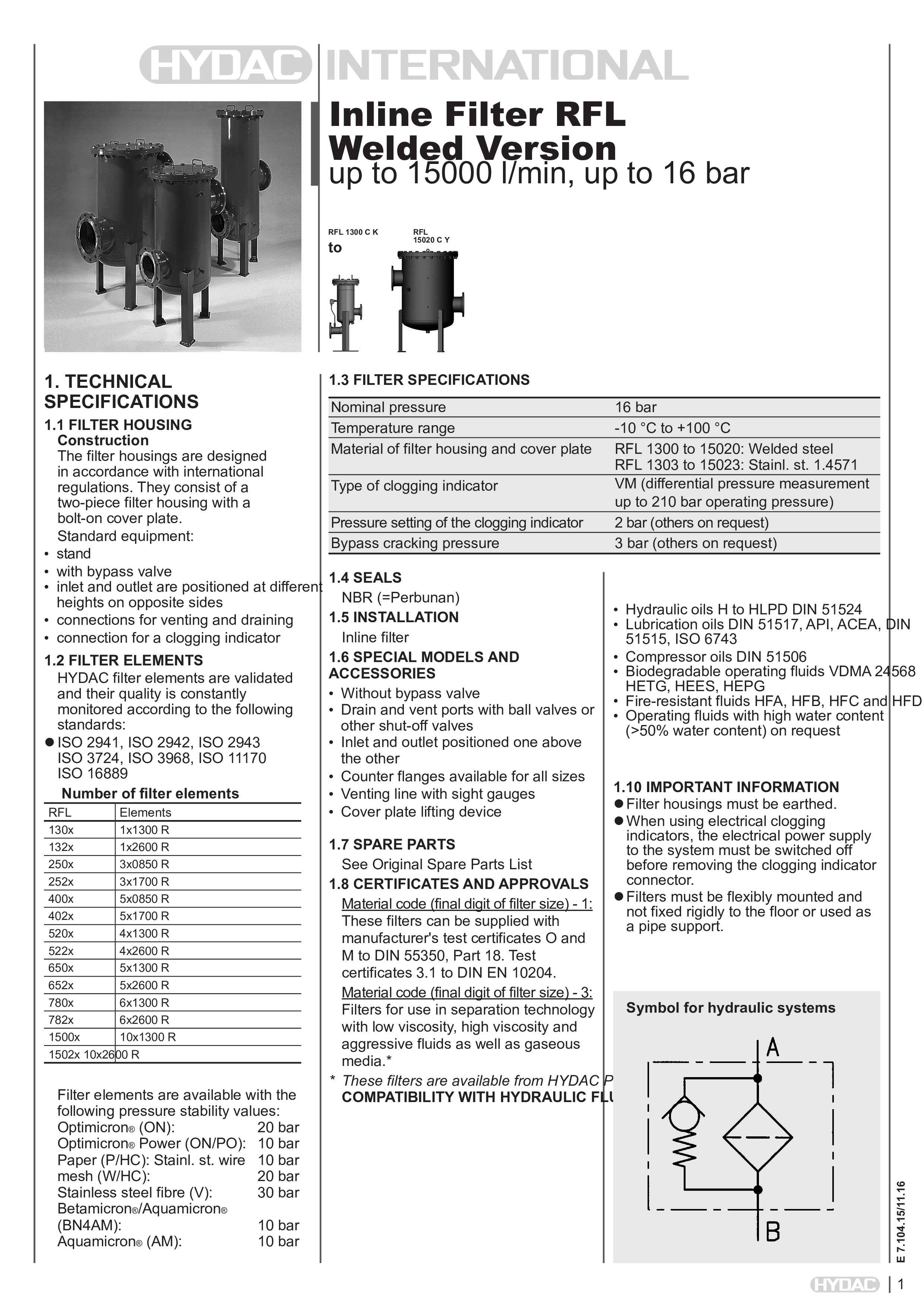

Downloads
Hydac Welded Inline Filter RFL

HYDAC Welded Inline Filter RFL

  • Flow rates up to 15000 l/min
  • Pressure levels up to 16 bar
  • Connections: DIN DN 40 to DIN DN 300
  • Installation sizes: 1300, 1303, 1320, 1323, 2500, 2503, 2520, 2523, 4000, 4003, 4020, 4023, 5200, 5203, 5220, 5223, 6500, 6503, 6520, 6523, 7800, 7803, 7820, 7823, 15000, 15003, 15020, 15023

Features:

  • The filter housings are designed in accordance with international regulations
  • They consist of a two-piece filter housing with a bolt-on cover plate
  • Hydac RFL welded Inline filter come fitted with a stand as standard
  • Inlet and outlet are positioned at different heights on opposite sides
  • Connections for venting and draining
  • Connection for a clogging indicator
  • Pressure setting of the clogging indicator 2 bar (others on request)
  • Bypass cracking pressure 3 bar (others on request)
  • Compatibility with hydraulic fluids ISO 2943
  • Special models and accessories available on request
  • Certificates and approvals available on request

HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:

  • ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889

Filter elements are available with the following pressure stability values:

  • Optimicron® (ON): 20 bar
  • Optimicron® Power (ON/PO): 10 bar
  • Betamicron® (BN4HC): 20 bar
  • Paper (P/HC): 10 bar
  • Stainless steel wire mesh (W/HC): 20 bar
  • Stainless steel fibre (V): 30 bar
  • Betamicron®/Aquamicron® (BN4AM): 10 bar
  • Aquamicron® (AM): 10 bar
