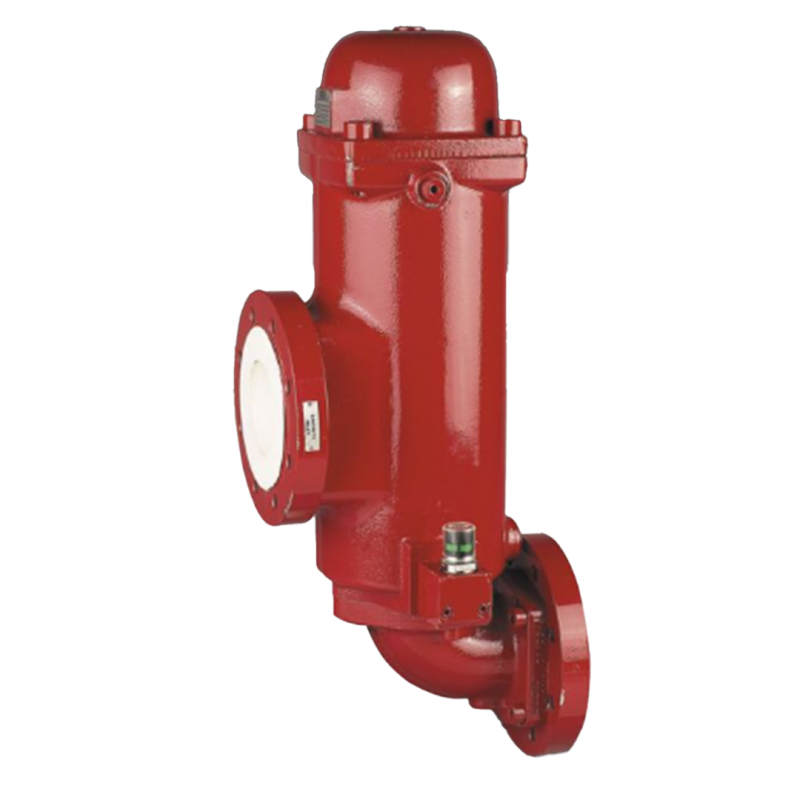

Hydac Cast Inline Filters RFL

HYDAC Cast Inline Filters RFL deliver robust filtration for hydraulic systems with flow rates up to 1,300 l/min and pressure ratings up to 40 bar. Featuring a durable two-piece cast housing with bolt-on cover plate, these filters provide reliable contaminant removal and easy maintenance in demanding environments.

Key Features:

  • Flow rates up to 1300 l/min
  • Pressure levels up to 40 bar
  • Comprehensive connections - equipped with venting, draining, and clogging indicator ports

Print page

Description
Downloads
Hydac Cast Inline Filters RFL

HYDAC Cast Inline Filters RFL

  • Flow rates up to 1300 l/min
  • Pressure levels up to 40 bar
  • Temperature range: -10 °C to +100 °C
  • Connections: SAE DN 80 to DIN DN 100
  • Installation sizes: 661, 662, 851, 853, 951, 952, 1301, 1302, 1321, 1322

Features:

  • Connections for venting and draining
  • Connection for a clogging indicator
  • Pressure setting of the clogging indicator 2 bar (others on request)
  • Bypass cracking pressure 3 bar (others on request)
  • The filter housings are designed in accordance with international regulations
  • They consist of a two-piece filter housing with a bolt-on cover plate
  • Compatibility with hydraulic fluids ISO 2943
  • Special models and accessories available on request
  • Certificates and approvals available on request

HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:

  • ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889

Filter elements are available with the following pressure stability values:

  • Optimicron® (ON): 20 bar
  • Optimicron® Power (ON/PO): 10 bar
  • Betamicron® (BN4HC): 20 bar
  • Paper (P/HC): 10 bar
  • Wire mesh (W/HC): 20 bar
  • Stainless steel fibre (V): 30 bar
  • Betamicron®/Aquamicron® (BN4AM): 10 bar
  • Aquamicron® (AM): 10 bar
