Hydac Cast Version Reversible Inline Filter RFLD

HYDAC Cast Version Reversible Inline Filters RFLD are designed for heavy-duty hydraulic systems requiring flow rates up to 2,700 l/min and pressure levels up to 64 bar. Featuring a cast two-section housing with a ball change-over valve, these filters enable continuous filtration without system downtime and include advanced features for safe, efficient operation.

Key Features:

  • Flow rates up to 2700 l/min
  • Pressure levels up to 64 bar
  • Temperature range: -10 °C to +100 °C

Print page

Description
Downloads

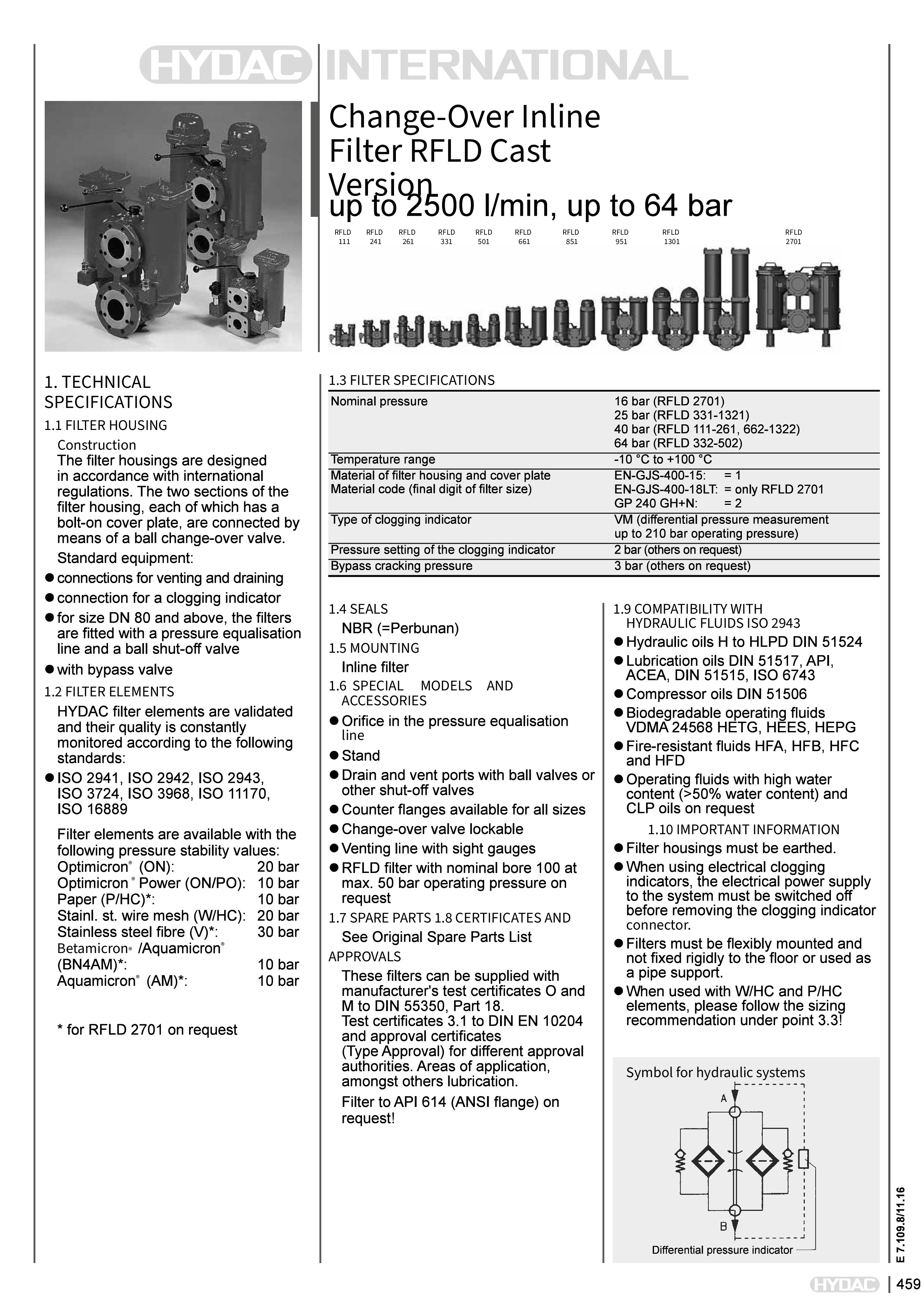

Hydac Cast Version Reversible Inline Filter RFLD

HYDAC Cast Version Reversible Inline Filter RFLD

  • Flow rates up to 2700 l/min
  • Pressure levels up to 64 bar
  • Temperature range: -10 °C to +100 °C
  • Connections: G1 to DIN DN 150
  • Installation sizes: 111, 241, 331, 332, 501, 502, 503, 661, 662, 851, 852, 853, 951, 952, 1301, 1302, 1321, 1322, 2701

Features:

  • The filter housings are designed in accordance with international regulations
  • The two sections of the filter housing, each of which has a bolt-on cover plate, are connected by means of a ball change-over valve
  • Connections for venting and draining
  • Connection for a clogging indicator
  • For size DN 80 and above, the filters are fitted with a pressure equalisation line and a ball
  • Pressure setting of the clogging indicator 2 bar (others on request)
  • Bypass cracking pressure 3 bar (others on request)
  • Compatibility with hydraulic fluids ISO 2943
  • Special models and accessories available on request
  • Certificates and approvals available on request

HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:

  • ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889

Filter elements are available with the following pressure stability values:

  • Betamicron® (BN4HC): 20 bar
  • Paper (P/HC)*: 10 bar
  • Stainl. steel wire mesh (W/HC): 20 bar
  • Stainless steel fibre (V)*: 30 bar
  • Betamicron®/Aquamicron® (BN4AM): 10 bar
  • Aquamicron® (AM)*: 10 bar

* for RFLD 2701, on request
