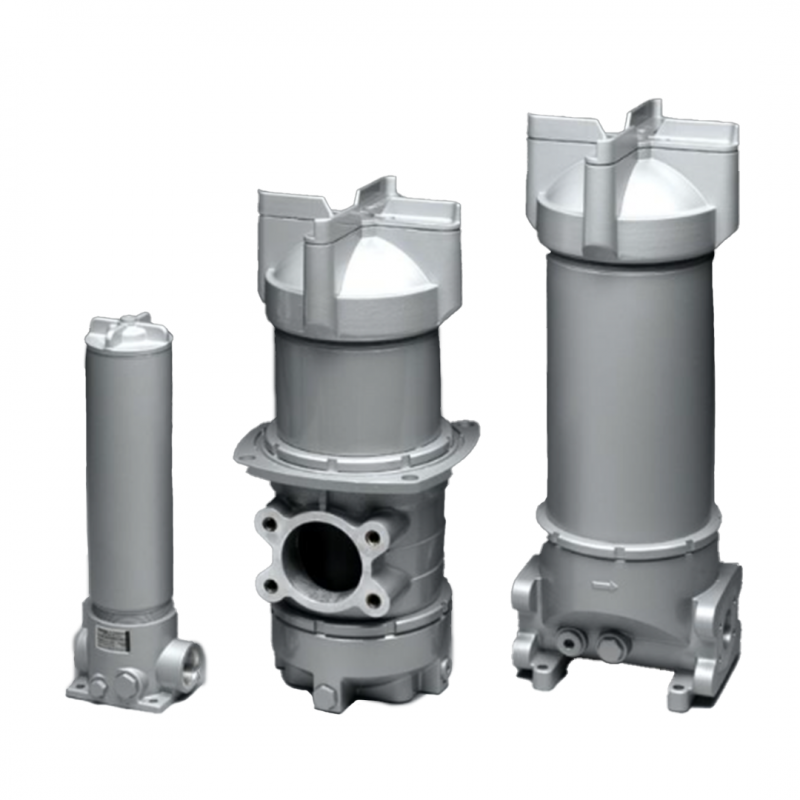

Hydac Inline Filter NF 2/3.0
HYDAC NF 2/3.0 Inline Filters are high-performance filtration units designed for flow rates up to 3,500 l/min and pressures up to 25 bar. Engineered with a durable housing and threaded cover plate, these filters offer efficient contaminant removal and reliable protection for demanding hydraulic systems.
Key Features:
- Flow rates up to 3500 l/min
- Pressure levels up to 25 bar
- Temperature range: -10 °C to +100 °C
Description
Downloads

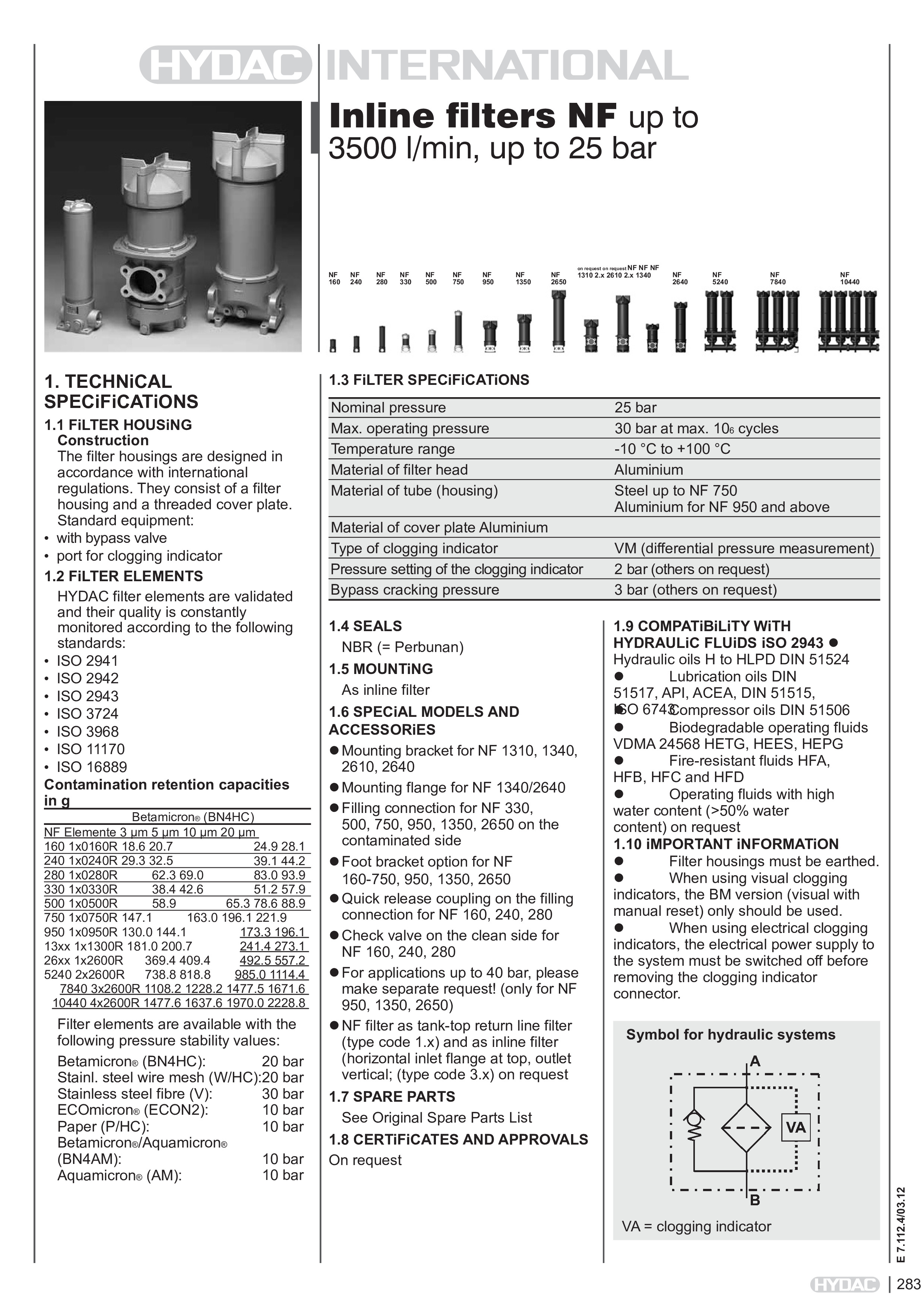

HYDAC Inline Filter NF 2/3.0
- Flow rates up to 3500 l/min
- Pressure levels up to 25 bar
- Temperature range: -10 °C to +100 °C
- Connections: G1¼ to SAE DN 100
- Installation sizes: 160, 240, 280, 330, 500, 750, 950, 1310, 1340, 1350, 2610, 2640, 2650, 5240, 7840, 10440
Features:
- Hydac NF 2/3.0 Inline filter come with bypass valve as standard
- Port for clogging indicator
- Pressure setting of the clogging indicator 2 bar (others on request)
- Bypass cracking pressure 3 bar (others on request)
- Compatibility with hydraulic fluids ISO 2943
- Special models and accessories available on request
- Certificates and approvals available on request
- The filter housings are designed in accordance with international regulations
- They consist of a filter housing and a threaded cover plate
HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:
- ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889
Filter elements are available with the following pressure stability values:
- Optimicron® (ON): 20 bar
- Optimicron® Power (ON/PO): 10 bar
- Betamicron® (BN4HC): 20 bar
- Stainl. steel wire mesh (W/HC): 20 bar
- Stainless steel fibre (V): 30 bar
- ECOmicron® (ECON2): 10 bar
- Paper (P/HC): 10 bar
- Betamicron®/Aquamicron® (BN4AM): 10 bar
- Aquamicron® (AM): 10 bar
