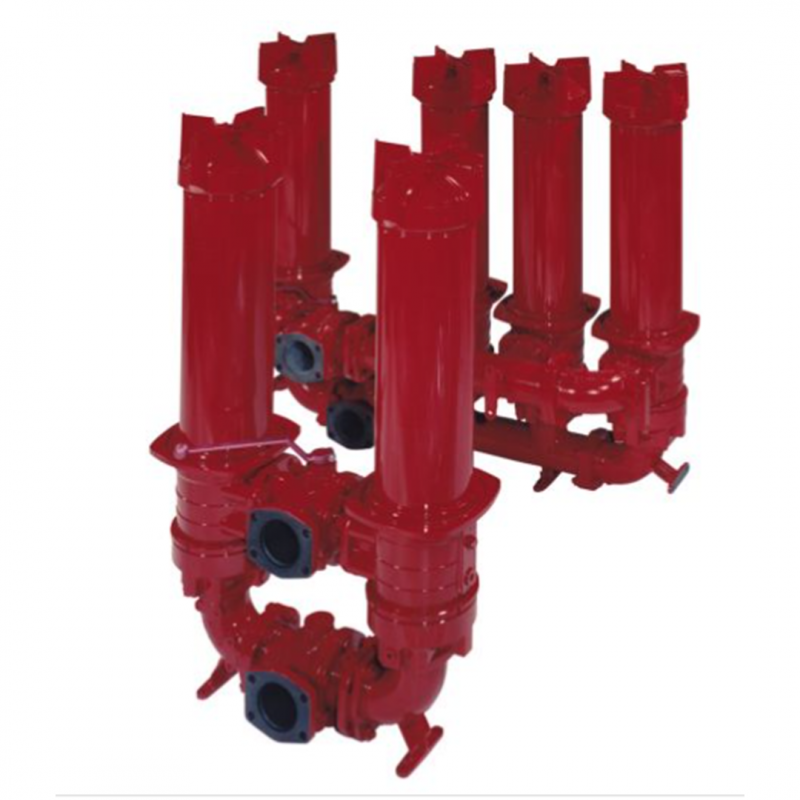

Hydac Reversible Inline Filter NFD 2.0
HYDAC NFD 2.0 Reversible Inline Filters are engineered for continuous filtration in high-demand hydraulic systems, supporting flow rates up to 2,000 l/min and pressure levels up to 25 bar. Featuring a dual-housing design with a ball change-over valve, they allow element replacement without interrupting system operation.
Key Features:
- Flow rates up to 2000 l/min
- Temperature range: -10 °C to +100 °C
- Pressure levels up to 25 bar
Description
Downloads
HYDAC Reversible Inline Filter NFD 2.0
- Flow rates up to 2000 l/min
- Temperature range: -10 °C to +100 °C
- Pressure levels up to 25 bar
- Connections: SAE DN 100
- Installation sizes: 1340, 2640, 5240, 7840, 10440
Features:
- Connection for a clogging indicator in filter head
- Type of clogging indicator VM (differential pressure measurement)
- Pressure setting of the clogging indicator 2 bar (others on request)
- Bypass cracking pressure 3 bar (others on request)
- The filter housings are designed in accordance with international regulations
- They consist of a filter housing and a threaded cover plate
- The housings are connected by a ball change-over valve
- Bypass cracking pressure 3 bar (others on request)
- Compatibility with hydraulic fluids ISO 2943
- Special models and accessories available on request
- Certificates and approvals available on request
HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:
- ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889
Filter elements are available with the following pressure stability values:
- Optimicron® (ON): 20 bar
- Optimicron® Power (ON/PO): 10 bar
- Betamicron® (BN4HC): 20 bar
- ECOmicron® (ECON2) 10 bar
Stainl. steel wire mesh (W/HC): 20 bar - Stainless steel fibre (V): 210 bar
- Paper (P/HC): 10 bar
- Betamicron®/Aquamicron® (BN4AM): 10 bar
- Aquamicron® (AM): 10 bar
