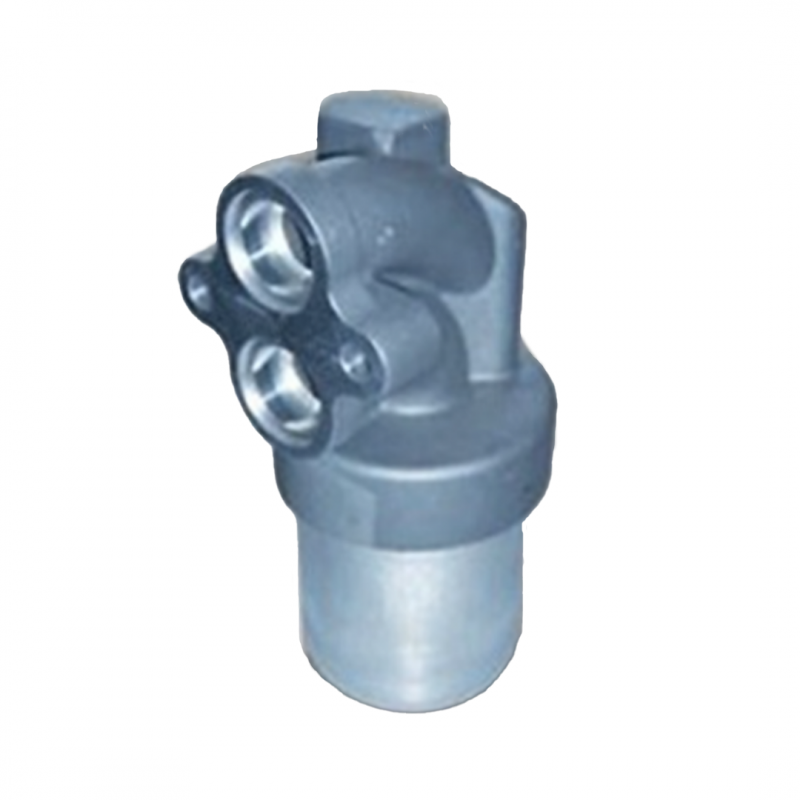

Hydac Pressure Filter for Lateral Flange Mounting LPF...D A
HYDAC LPF...D A Pressure Filters for lateral flange mounting are compact, durable units designed for systems operating up to 280 l/min and 25 bar. Featuring a screw-in bowl and integrated bypass valve, these filters provide reliable protection in low-to-medium pressure hydraulic circuits.
Key Features:
- Flow rates up to 280 l/min
- Temperature range: -30 °C to +100 °C
- Pressure levels up to 25 bar
Description
Downloads
HYDAC Pressure Filter for Lateral Flange Mounting LPF...D A
- Flow rates up to 280 l/min
- Temperature range: -30 °C to +100 °C
- Pressure levels up to 25 bar
- Connections: Flange with 2 bore holes
- Installation sizes: 160, 240, 260, 280
Features:
- Bypass valve
- Connection for a clogging indicator
- Pressure setting of the clogging indicator 5 bar (others on request)
- Bypass cracking pressure 6 bar (others on request)
- The filter housings are designed in accordance with international regulations
- They consist of a filter head and a screw-in filter bowl
- Compatibility with hydraulic fluids ISO 2943
- Special models and accessories available on request
- Certificates and approvals available on request
HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:
- ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889
Filter elements are available with the following pressure stability values:
- Betamicron® (BN4HC): 20 bar
- Wire mesh (W/HC): 20 bar
