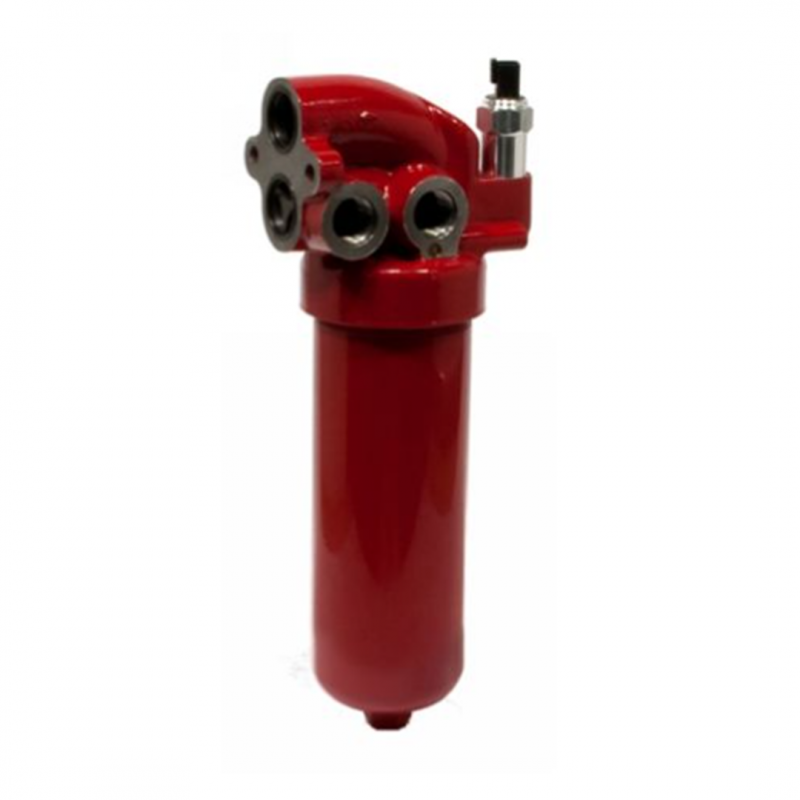

Hydac Inline Filter LPF...GGA
HYDAC LPF...GGA Inline Filters with Integrated Cooler Bypass Valve are designed for systems requiring efficient filtration and controlled cooling flow, supporting up to 260 l/min and 50 bar. With a built-in cooler bypass and check valve, these filters ensure consistent partial flow to the cooler even under demanding conditions.
- Qmax: 260 l/min
- Pmax: 50 bar
- Temperature range: -10 °C up to +120 °C
- Inlet / Outlet to cooler: M27x2
- Sizes: 161, 241, 261, 281
Description

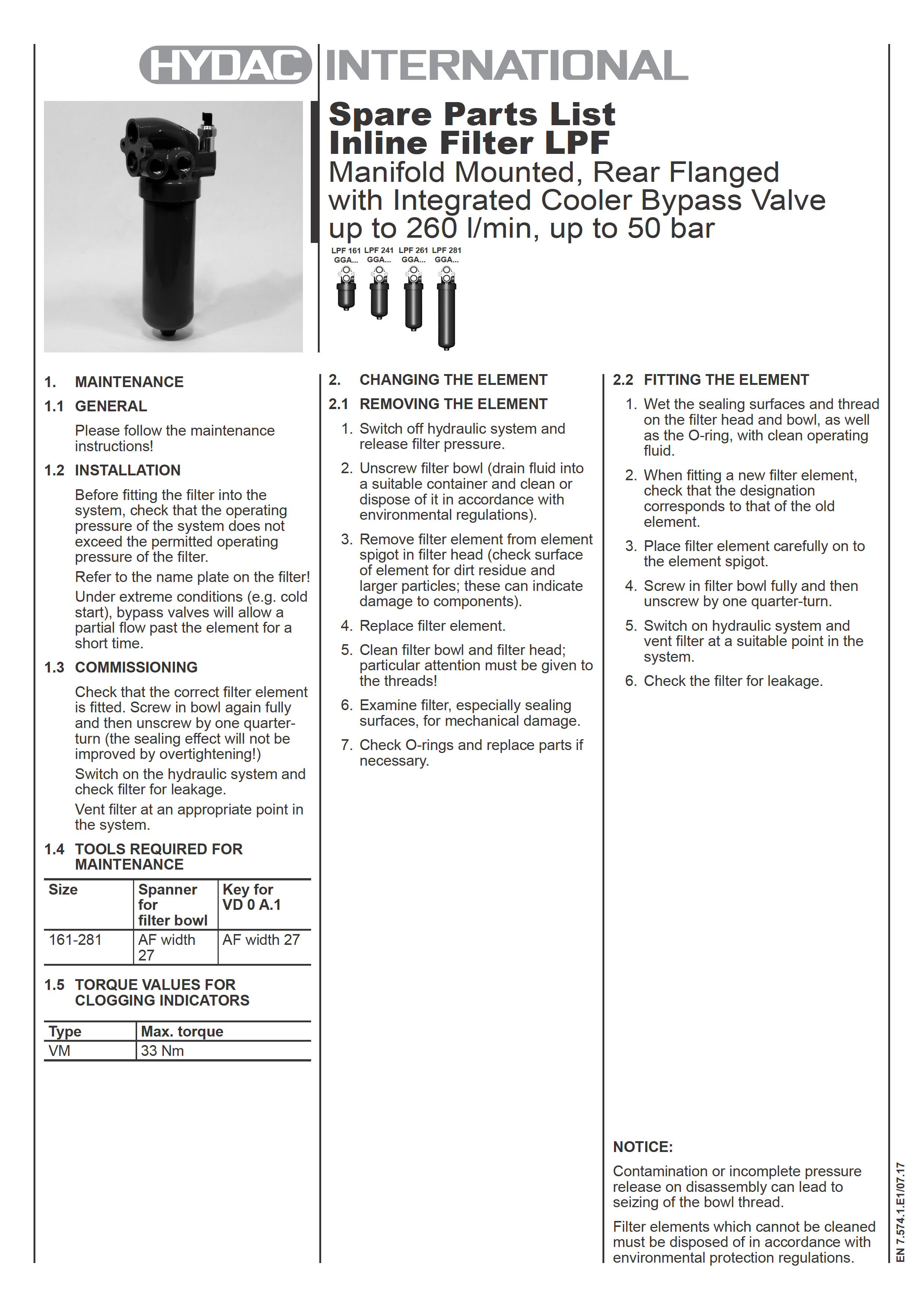

Downloads
HYDAC Inline Filter with Integrated Cooler Bypass Valve LPF...GGA
- Qmax: 260 l/min
- Pmax: 50 bar
- Temperature range: -10 °C up to +120 °C
- Inlet / Outlet to cooler: M27x2
- Sizes: 161, 241, 261, 281
Features:
- Cooler bypass valve as standard
- Connection for a clogging indicator
- Pressure setting of the clogging indicator 5 bar (others on request)
- Bypass cracking pressure 3.4 bar
- The filter housings are designed in accordance with international regulations
- They consist of a filter head and a screw-in filter bowl
- The built-in check valve in the filter head supplies partial flow to the cooler
- Compatibility with hydraulic fluids ISO 2943
- Special models and accessories available on request
- Certificates and approvals available on request
HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:
- ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889
Filter elements are available with the following pressure stability values:
- Betamicron® (BN4HC): 20 bar (flass fibre)
- Mobilemicron (MM): 10 bar (plastic fibre)
