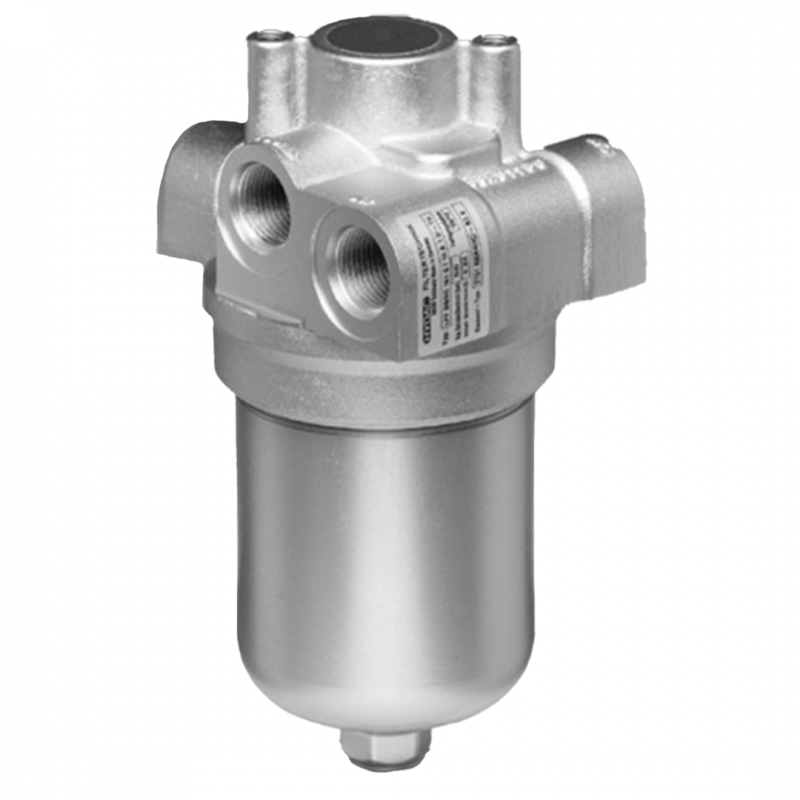

Hydac Inline Filter with Integrated Thermal Bypass Valve LPF
HYDAC LPF Inline Filters with Integrated Thermal Bypass Valve are engineered for systems up to 140 l/min and 50 bar, combining high-performance filtration with smart thermal control. The built-in thermal bypass ensures fast warm-up and system protection during cold starts.
Key Features:
- Flow rates up to 140 l/min
- Pressure levels up to 50 bar
- Temperature range: -10 °C to +100 °C
Description

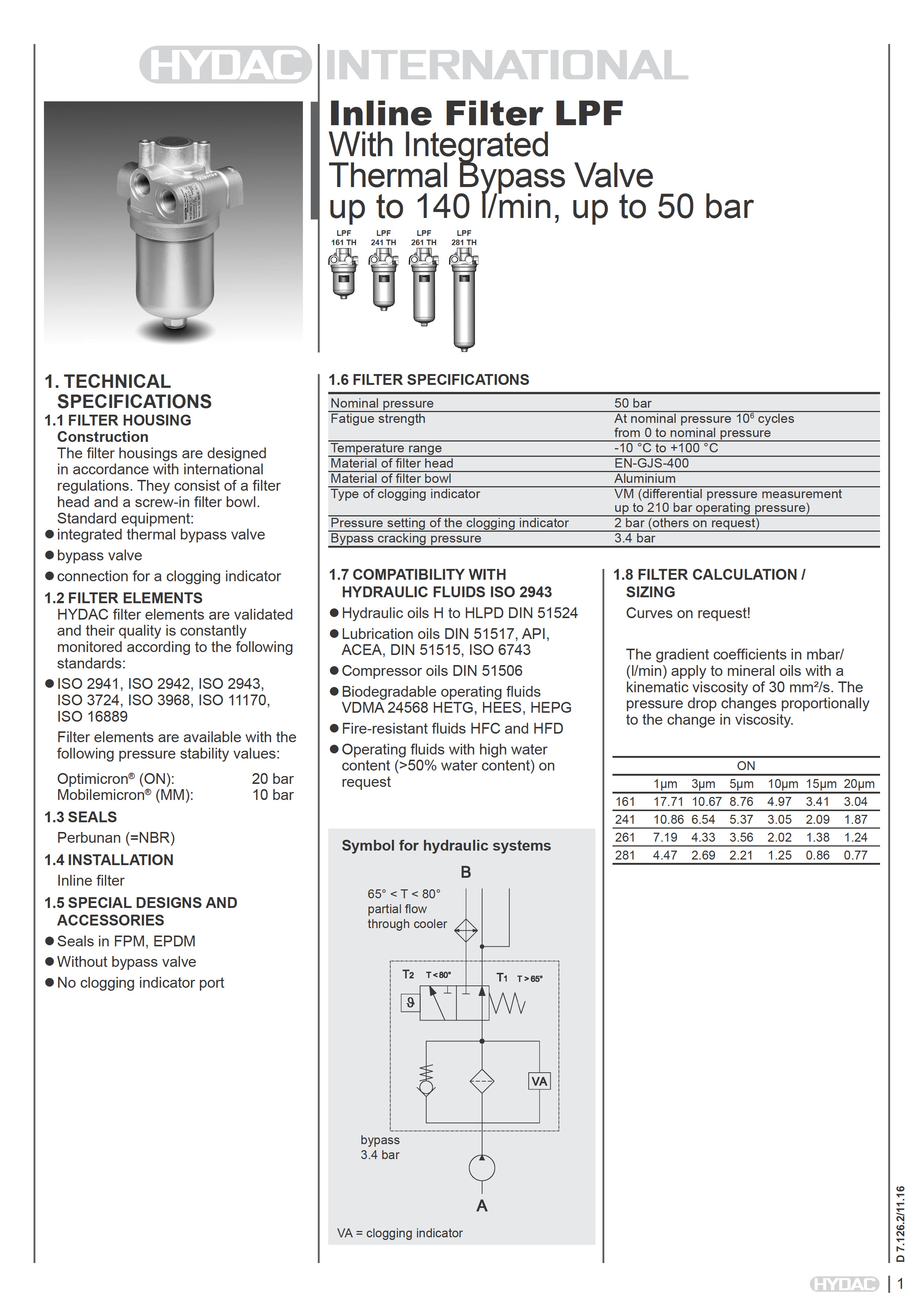

Downloads
HYDAC Inline Filter with Integrated Thermal Bypass Valve LPF
- Flow rates up to 140 l/min
- Pressure levels up to 50 bar
- Temperature range: -10 °C to +100 °C
Features:
- The filter housings are designed in accordance with international regulations
- They consist of a filter head and a screw-in filter bowl
- Bypass valve
- Integrated thermal bypass valve
- Connection for a clogging indicator
- Type of clogging indicator VM (differential pressure measurement up to 210 bar operating pressure)
- Pressure setting of the clogging indicator 5 bar (others on request)
- Bypass cracking pressure 3.4 bar
- Compatibility with hydraulic fluids ISO 2943
- Special models and accessories available on request
HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:
- ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889
Filter elements are available with the following pressure stability values:
- Betamicron® (BN4HC): 25 bar
- Mobilemicron (MM): 10 bar
