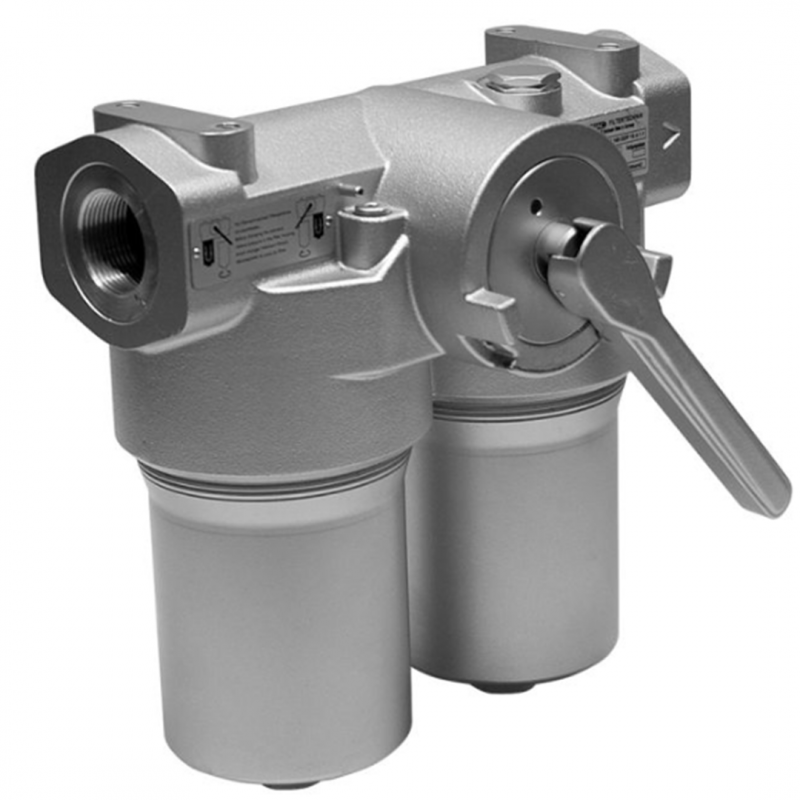

Hydac Reversible Inline Filters FLND in Accordance with DIN 24550

HYDAC FLND Reversible Inline Filters (DIN 24550-compliant) offer efficient filtration for systems up to 400 l/min and 63 bar. With built-in change-over valves, they allow filter servicing without system shutdown, making them ideal for continuous-duty hydraulic systems.

Key Features:

  • Flow rates up to 400 l/min
  • Temperature range: -10 °C to +100 °C
  • Pressure levels up to 63 bar
  • Connections: G½ to SAE DN 38
  • Installation sizes: 40, 63, 100, 160, 250, 400

Description

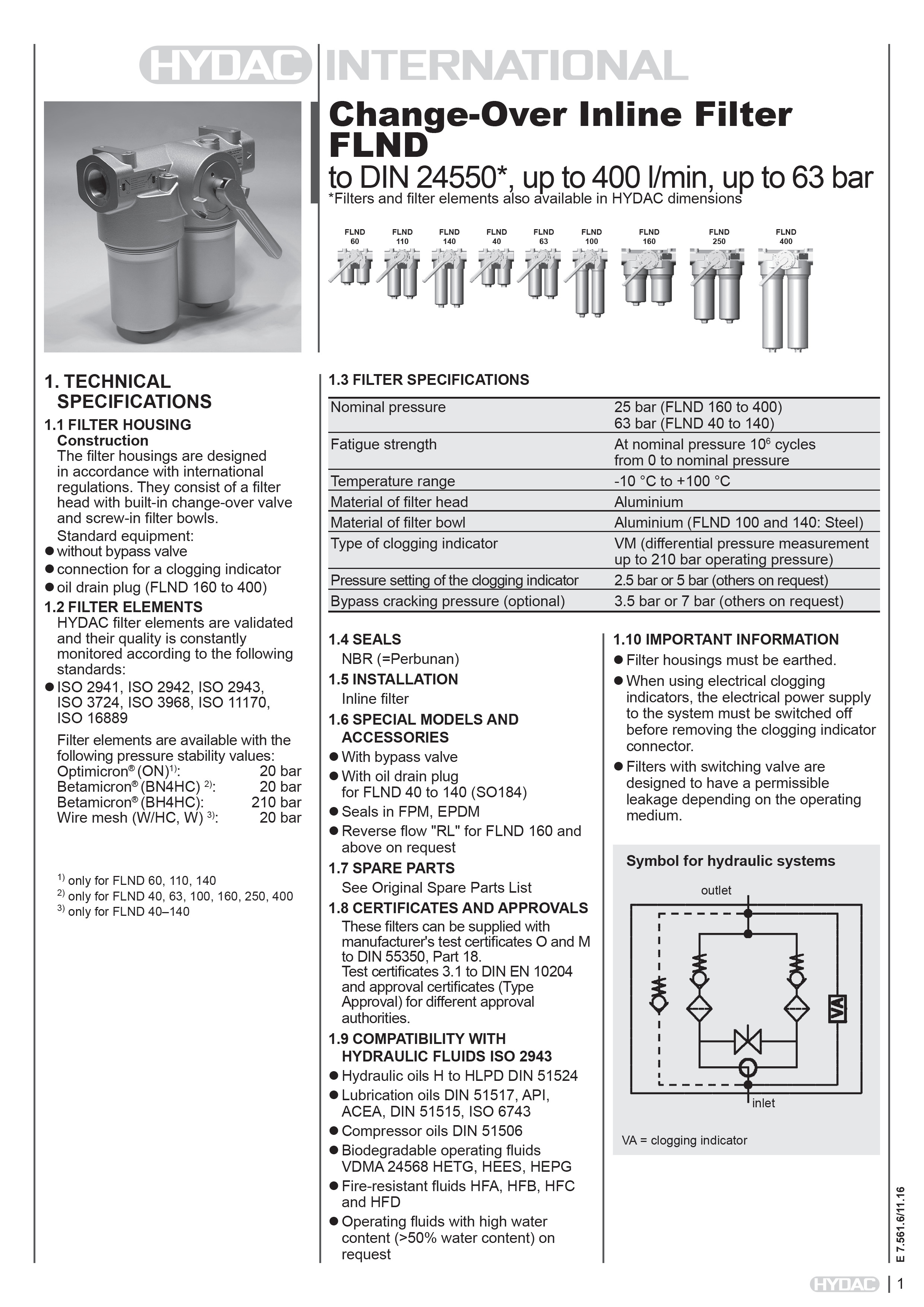

Downloads

HYDAC Reversible Inline Filters FLND in Accordance with DIN 24550

  • Flow rates up to 400 l/min
  • Temperature range: -10 °C to +100 °C
  • Pressure levels up to 63 bar
  • Connections: G½ to SAE DN 38
  • Installation sizes: 40, 63, 100, 160, 250, 400

Features:

  • The filter housings are designed in accordance with international regulations
  • They consist of a filter head with built-in change-over valve and screw-in filter bowls
  • Bypass valve as standard
  • Bypass cracking pressure (optional) 3.5 bar or 7 bar (others on request)
  • Connection for a clogging indicator
  • Type of clogging indicator VM (differential pressure measurement up to 210 bar operating pressure)
  • Pressure setting of the clogging indicator 2.5 bar or 5 bar (others on request)
  • Oil drain plug (FLND 160 to 400)
  • Compatibility with hydraulic fluids ISO 2943
  • Special models and accessories available on request
  • Certificates and approvals available on request

HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:

  • ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889

Filter elements are available with the following pressure stability values:

  • Betamicron® (BN4HC): 20 bar
  • Betamicron® (BH4HC): 210 bar
  • Wire mesh (W/HC, W*): 20 bar

* only for FLND 40 - 140
