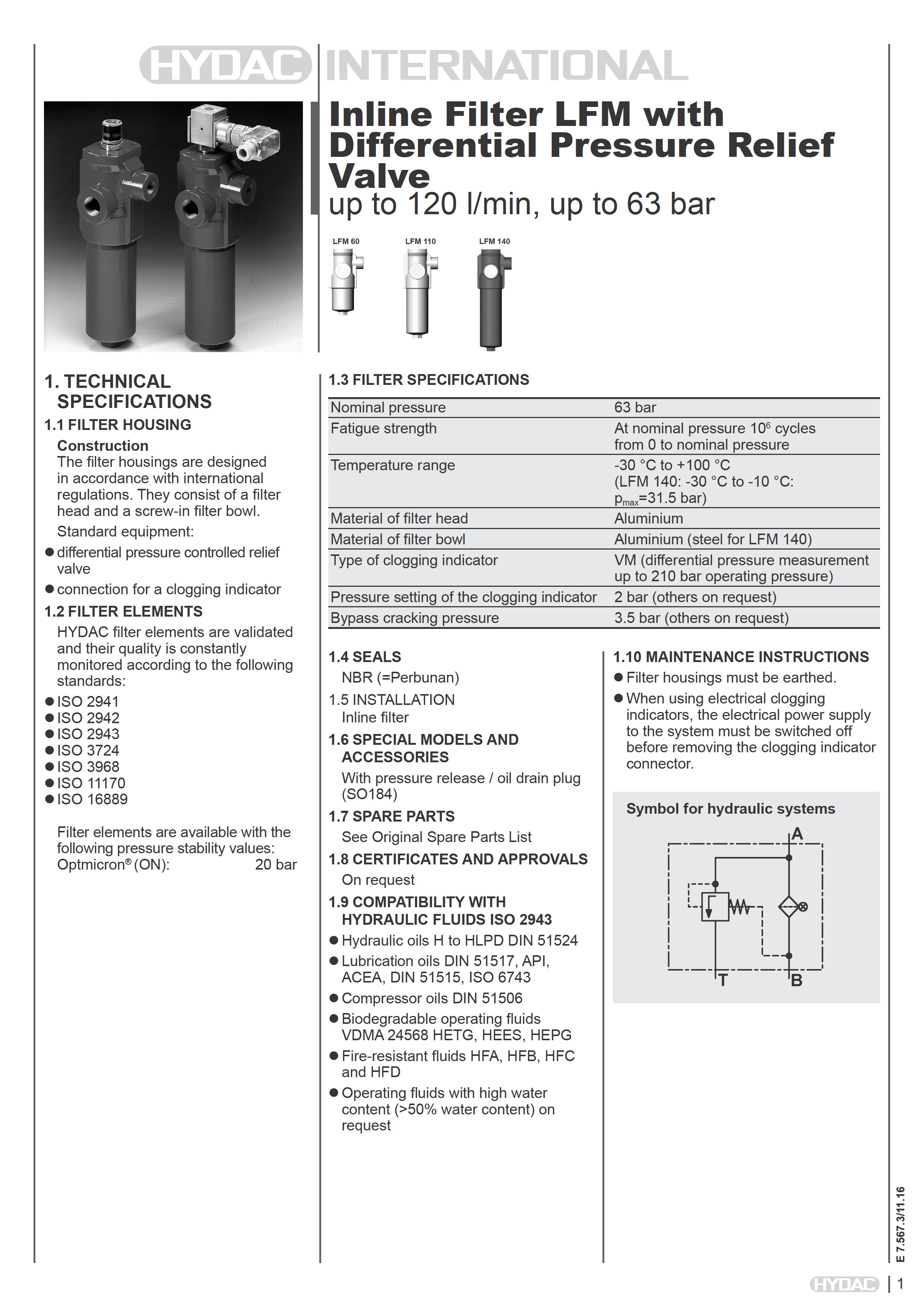

Hydac Inline Filter with Circulation Valve LFM
HYDAC LFM Inline Filters with Circulation Valve are compact, high-performance filters for flow rates up to 120 l/min and pressures up to 63 bar. Designed with integrated differential pressure-controlled relief valves, these filters ensure reliable protection of hydraulic systems.
Key Features:
- Flow rates up to 120 l/min
- Pressure levels up to 63 bar
- Connections: G¾
- Installation sizes: 60, 110, 140
Description
Downloads
HYDAC Inline Filter with Circulation Valve LFM
- Flow rates up to 120 l/min
- Pressure levels up to 63 bar
- Connections: G¾
- Installation sizes: 60, 110, 140
- Material of filter head: Aluminium
- Material of filter bowl: Aluminium (steel for LFM 140)
Features:
- The filter housings are designed in accordance with international regulations
- They consist of a filter head and a screw-in filter bowl
- Special models and accessories available on request
- Differential pressure controlled relief valve
- Connection for a clogging indicator as standard
- Compatibility with hydraulic fluids ISO 2943
- Certificates and approvals available on request
Filter elements are available with the following pressure stability values:
- Betamicron® (BN4HC): 20 bar
HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:
- ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889
