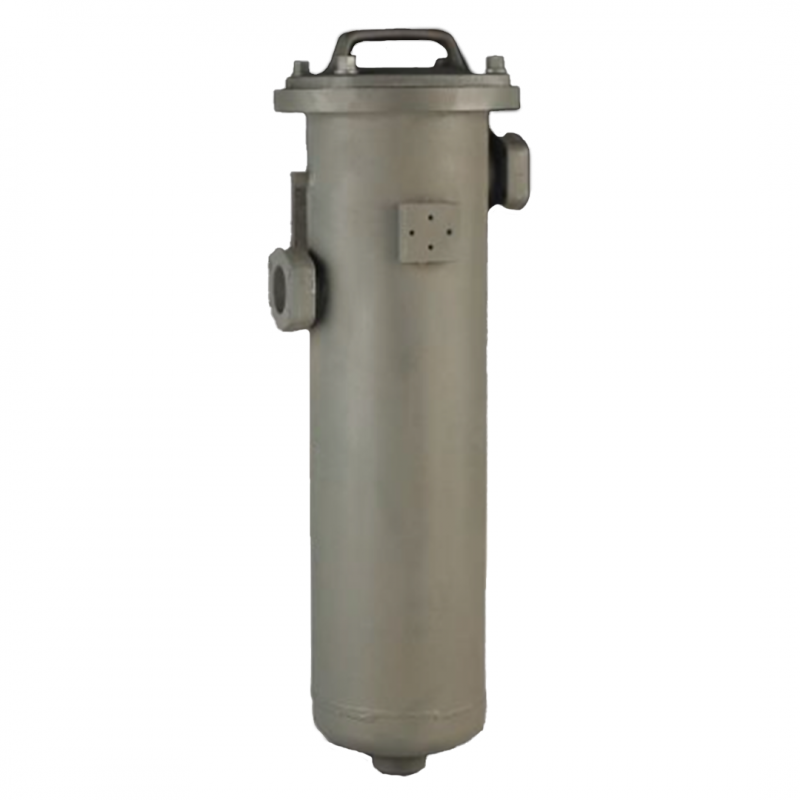

Hydac Inline Filter RFLR with Magnetic Core Flow
The HYDAC RFLR Inline Filter with Magnetic Core is designed for return line filtration with flow rates up to 1200 l/min and pressures up to 25 bar. Featuring magnetic pre-filtration and top-removable elements, it ensures efficient contaminant removal and easy maintenance.
Key Features:
- Flow rates up to 1200 l/min
- Temperature range: -30 °C to +120 °C
- Pressure levels up to 25 bar
Description
Downloads
HYDAC Inline Filter RFLR with Magnetic Core Flow
- Flow rates up to 1200 l/min
- Temperature range: -30 °C to +120 °C
- Pressure levels up to 25 bar
- Connections: SAE DN 50 to SAE DN 100
- Installation sizes: 400, 600, 800, 1000, 1200
- Flow from inside to outside
Features:
- Mounting holes in the housing
- Oil drain plug
- Magnetic core built into cover plate
- With bypass valve
- Bypass cracking pressure 3 bar (others on request)
- Connection for a clogging indicator
- Type of clogging indicator VM (differential pressure measurement up to 210 bar operating pressure)
- Pressure setting of the clogging indicator 2 bar (others on request)
- The filter housings are designed in accordance with international regulations
- They consist of a filter housing and cover plate
- The element is top-removable
- Compatibility with hydraulic fluids ISO 2943
- Special models and accessories available on request
HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:
- ISO 2941, ISO 2942, ISO 2943, ISO 3968, ISO 11170, ISO 16889
Filter elements are available with the following pressure stability values:
- Glass fibre (UHC) for
- biodegradable oils: 6 bar
- Wire mesh (WPI): 6 bar
- Other filtration ratings on request
