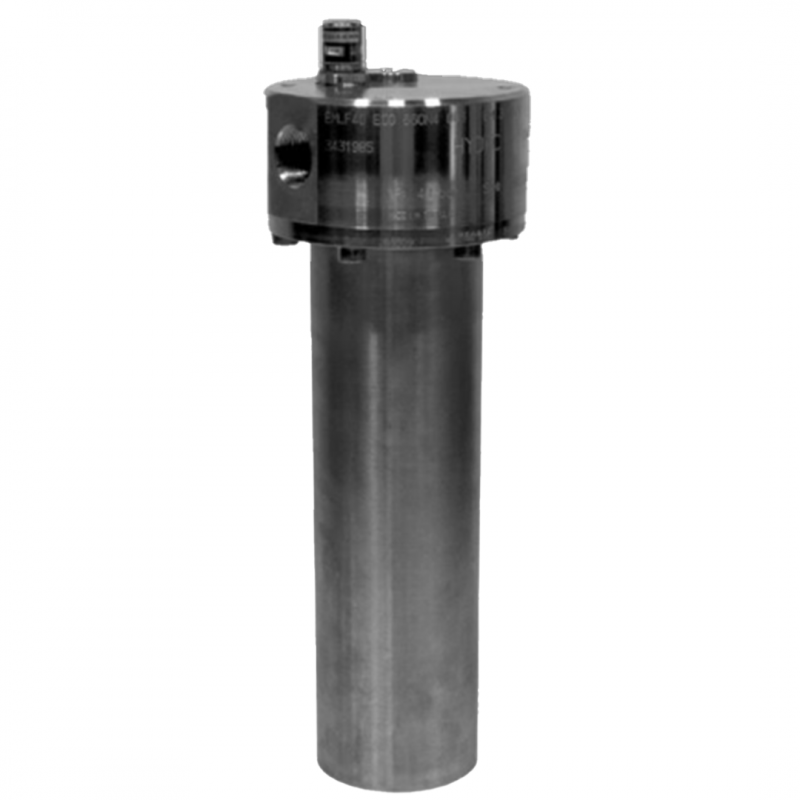

Hydac Stainless Steel Inline Filters EMLF
The HYDAC Stainless Steel Inline Filters EMLF are robust filtration solutions designed for high-performance hydraulic systems, offering dependable protection for sensitive components. With flow rates up to 150 l/min and pressure ratings up to 40 bar, these filters ensure reliable operation under demanding conditions.
Key Features:
- Flow rates up to 150 l/min
- Pressure levels up to 40 bar
- Custom models, accessories, and certifications available on request
Description
Downloads
HYDAC Stainless Steel Inline Filters EMLF
- Flow rates up to 150 l/min
- Pressure levels up to 40 bar
- Connections: 1" BSPP to SAE 32
- Installation sizes: 330, 660
Features:
- With bypass valve
- Connection for a clogging indicator
- Oil drain plug in filter bowl
- Pressure setting of clogging indicator 2 bar (others on request)
- Bypass cracking pressure 3 bar (others on request)
- The filter housings are designed in accordance with international regulations
- They consist of a filter head and a bolt-on filter bowl
- Compatibility with hydraulic fluids ISO 2943
- Special models and accessories available on request
- Certificates and approvals available on request
HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:
- ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889
Filter elements are available with the following pressure stability values:
- Betamicron® (BN4HC): 20 bar
- Betamicron®/ Aquamicron®(BN/AM): 10 bar
- Wire mesh (W/HC): 20 bar
- ECOmicron (ECON2): 10 bar
