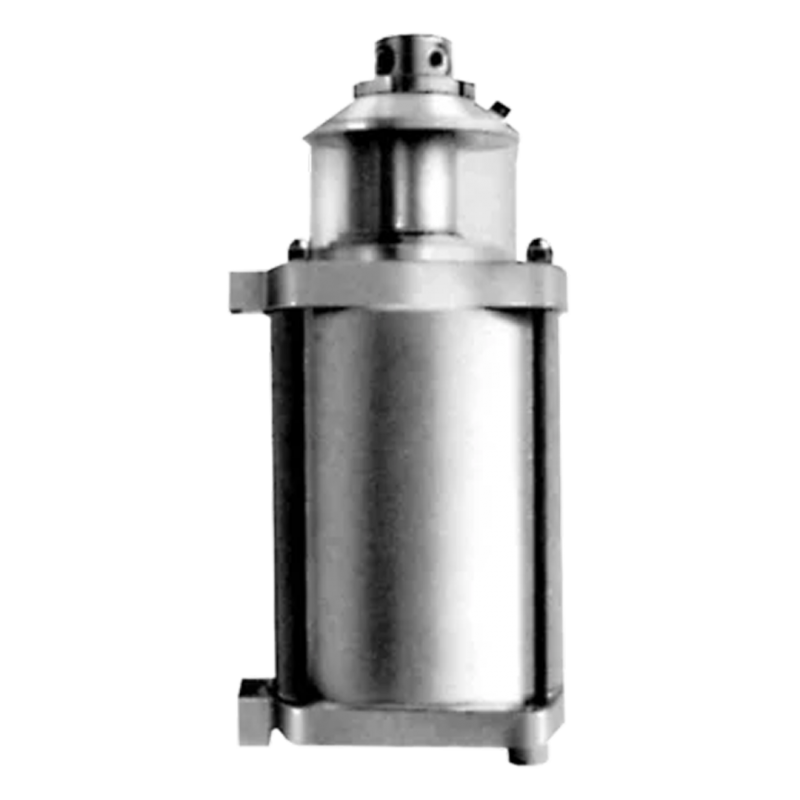

Pneumatic-hydraulic Intensifier

ROEMHELD D8.770 Pneumatic-hydraulic intensifier cna be used as a pressure generator where live cables are not possible or suitable.

  • Area ratio: 83 - 25:1
  • Displacement: 57 - 188 cm³
  • Maximum air pressure 6.3 - 8 bar
  • Maximum oil pressure: 195 - 505 bar
  • Oil pressure: 140 - 462 bar (at 6 bar air pressure)

ROEMHELD Pneumatic-Hydraulic Intensifier can be used as a pressure generator where live cables are not possible or suitable. Only single-acting cylinders can be connected. The cylinder volume should utilise the working only up to 60-70% so as to have some reserve left.

Print page

Description
Downloads
D8770

Pneumatic-hydraulic Intensifier - ROEMHELD D8.770

  • Area ratio: 83 - 25:1
  • Displacement: 57 - 188 cm³
  • Max. air pressure 6.3 - 8 bar
  • Max. oil pressure: 195 - 505 bar
  • Oil pressure: 140 - 462 bar (at 6 bar air pressure)

ROEMHELD Pneumatic-Hydraulic Intensifier [D8.770] can be used as a pressure generator where live cables are not possible or suitable. Only single-acting cylinders can be connected. The cylinder volume should utilise the working only up to 60-70% so as to have some reserve left.

Features

  • Intensification ratio 25 to 82.64
  • Max. operating pressure up to 500 bar
  • Single acting
  • with oil reservoir

Please see Download Sheet for features to consider when designing fixtures.
