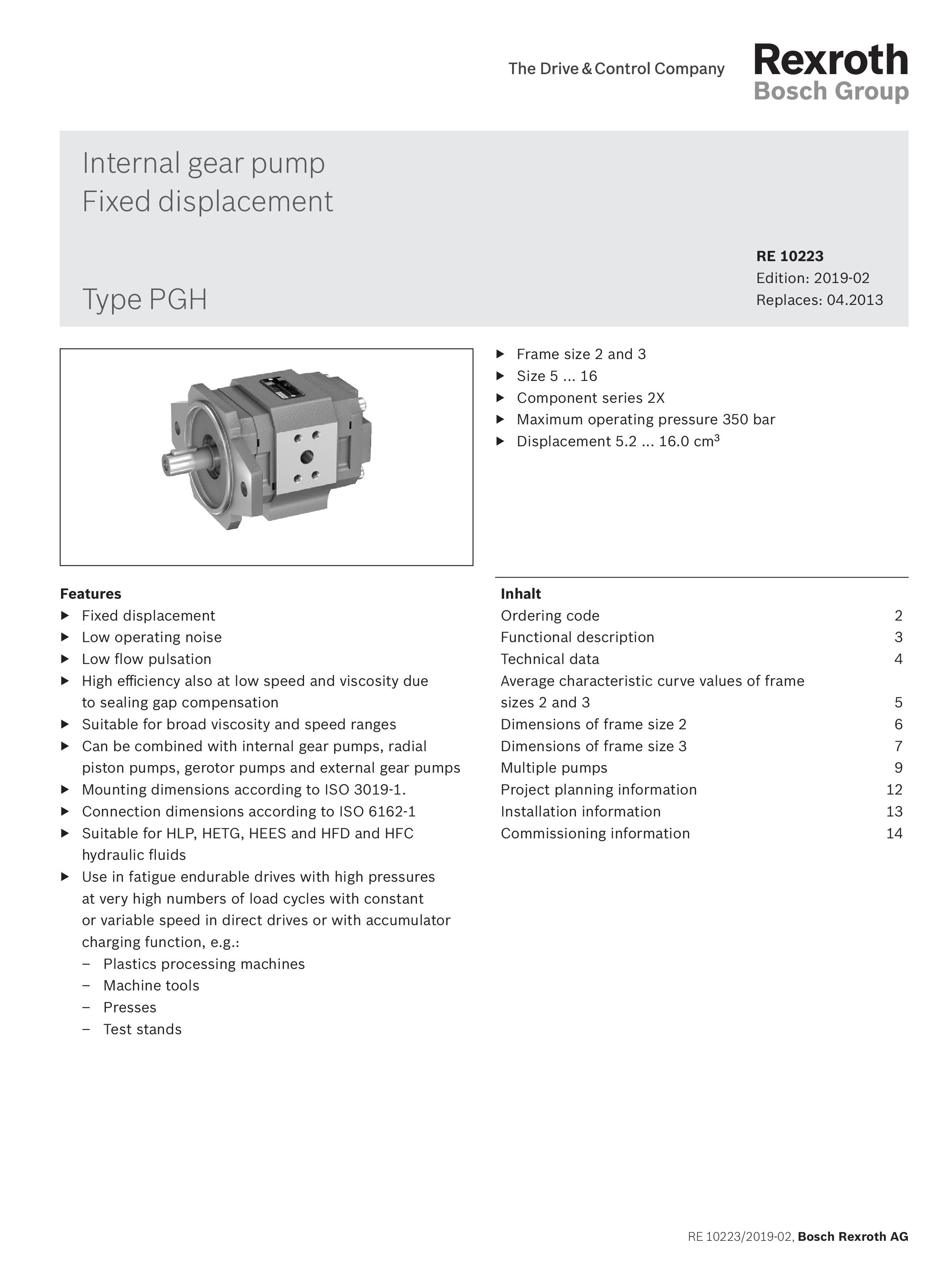

Bosch Rexroth Internal gear pump PGH Fixed displacement Series 2X

PGH Series 2X Size 5 to 16

PGF hydraulic pumps are leak gap-compensated internal gear pumps with a fixed displacement

  • Frame size 2, 3
  • Size 5 ... 16
  • Component series 2X
  • Maximum operating pressure 350 bar
  • Maximum displacement 5.2 ... 16 cm³

Products
Downloads
Description
Part Number Material Number No-Show Price Add to Parts List
PGH2-2X/005RE07VU2 PGH2-2X/005RE07VU2 R900968999 1 £1,168.58
£1,402.30 Inc. VAT
PGH2-2X/006RE07VU2 PGH2-2X/006RE07VU2 R900951301 2 £1,235.07
£1,482.08 Inc. VAT
PGH2-2X/008RE07VU2 PGH2-2X/008RE07VU2 R900951302 3 £1,306.88
£1,568.26 Inc. VAT
PGH3-2X/011RE07VU2 PGH3-2X/011RE07VU2 R900951303 4 £1,393.27
£1,671.92 Inc. VAT
PGH3-2X/013RE07VU2 PGH3-2X/013RE07VU2 R900951304 5 £1,495.66
£1,794.79 Inc. VAT
PGH3-2X/016RE07VU2 PGH3-2X/016RE07VU2 R900951305 6 £1,615.30
£1,938.36 Inc. VAT

Bosch Rexroth Internal Gear Pump PGH Fixed Displacement Series 2X 5cc to 16cc

  • Frame size: 2, 3
  • Size: 5 ... 16
  • Component series: 2X
  • Maximum operating pressure: 350 bar
  • Maximum displacement: 5.2 ... 16 cm³

Features:

  •  Fixed displacement
  •  Low operating noise
  •  Low flow pulsation
  •  High efficiency also at low speed and viscosity due to sealing gap compensation
  •  Suitable for broad viscosity and speed ranges
  •  Can be combined with internal gear pumps, radial piston pumps, gerotor pumps and external gear pumps
  •  Mounting dimensions according to ISO 3019-1.
  •  Connection dimensions according to ISO 6162-1
  •  Suitable for HLP, HETG, HEES and HFD and HFC hydraulic fluids
  •  Use in fatigue endurable drives with high pressures at very high numbers of load cycles with constant or variable speed in direct drives or with accumulator charging function, e.g.:  Plastics processing machines – Machine tools – Presses – Test stands
